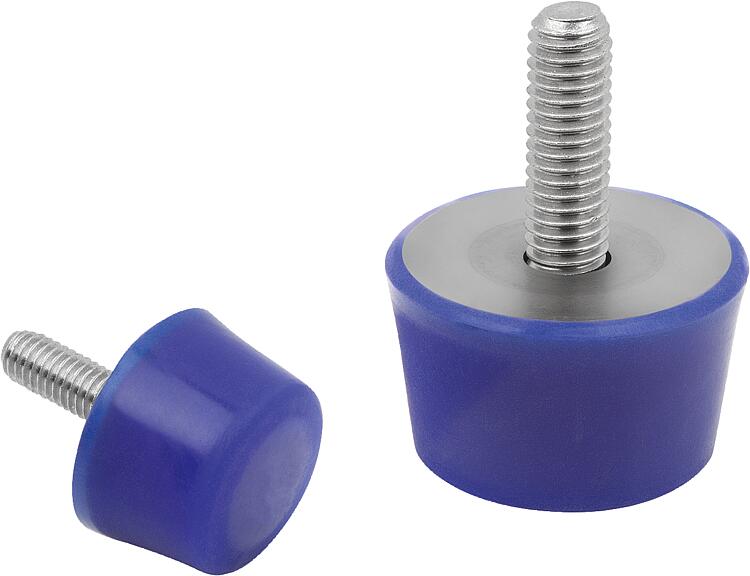

Rubber buffers stainless steel type K conical with external thread FDA conform blue
 26112-02

Rubber buffers stainless steel type K conical with external...

 go back

Item description/product images
DescriptionMaterial:Metal part stainless steel 1.4401.
Elastomer silicon, medium hardness Shore 55A.
Version:Stainless steel, bright.
Silicon FDA conform blue.
Note:Rubber buffers are used, among other things for mounting aggregates and as elastic buffers to limit the travel of moving masses.Temperature range:-30 °C to +180 °C.Special features:
Stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 26112-02 Rubber buffers stainless steel type K conical with external thread FDA conform blue 187 kB

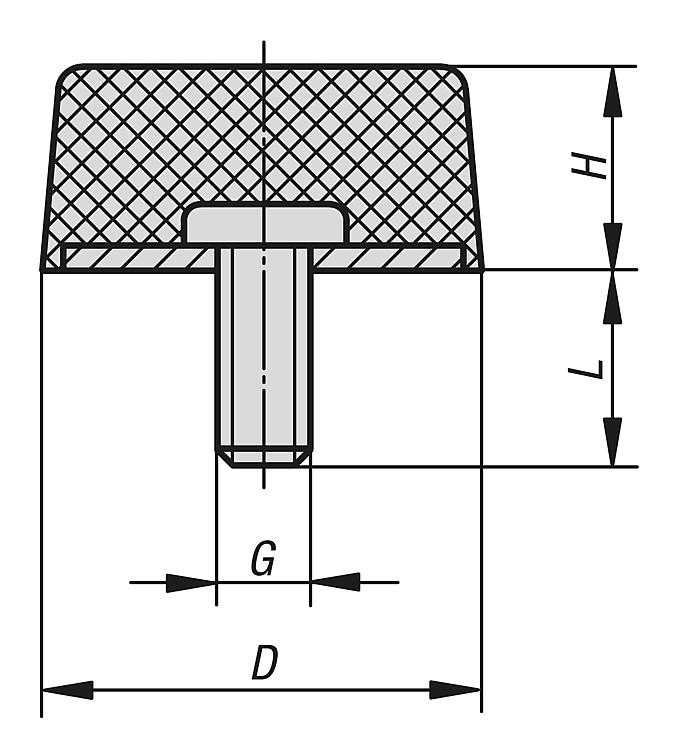

Drawings

Rubber buffers stainless steel type K conical with external thread FDA conform blue

Overview of items (compressed)

 Item selection/filter
Order No.D

GHLSpring stiffness
N/mm		Load
N		Shore gradeCADAcc.PriceOrder
26112-02-0250175525M617188044855A 0.00 €
26112-02-0300155530M81520265153055A 0.00 €
26112-02-0500175550M101728640358455A 0.00 €
