        Locating pins with flattened ball-end Form C

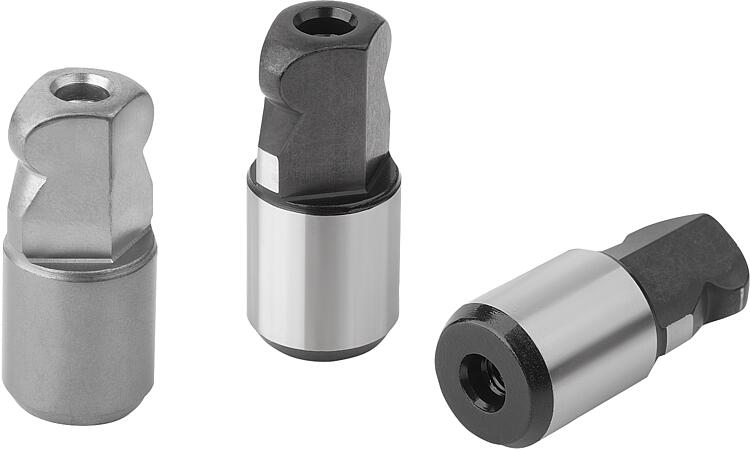

Item description/product images

DescriptionMaterial:

Tool steel or 1.4305 stainless steel.

Version:Steel hardened and ground.
Stainless steel ground and kolsterised.Note:Ball end locating pins are specially designed to ease the locating process. The tendency to jam, caused by the locating hole not being at right angles to the pin or by the pushing force not being parallel to the pin axis, is minimized by the ball-end form (see illustration 1)Drawing reference:

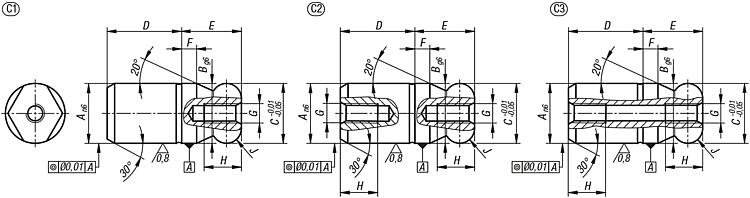

1) Internal thread one side in blind hole

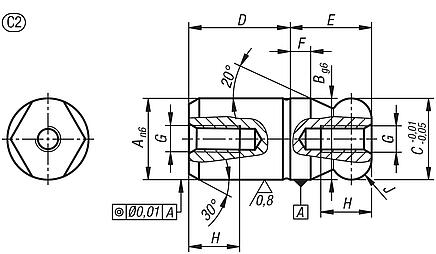

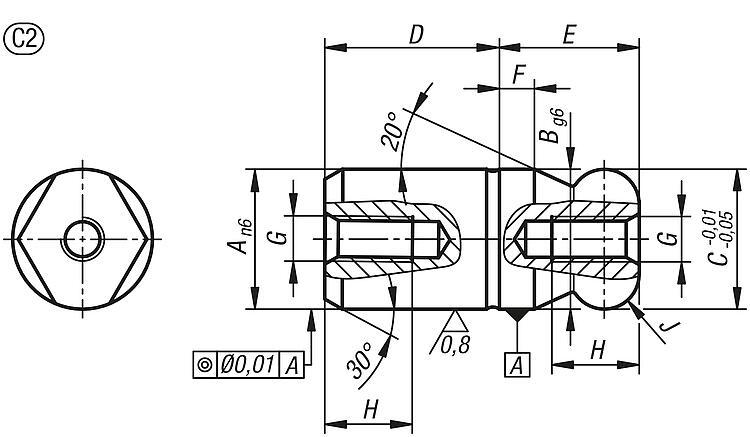

2) Internal thread both sides in blind holes

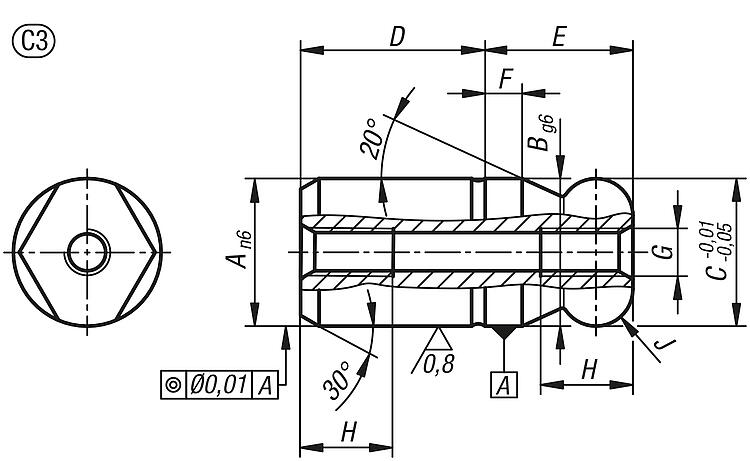

3) Internal thread both sides in through hole

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03107 Locating pins with flattened ball-end Form C

233 kB

Drawings (total overview)

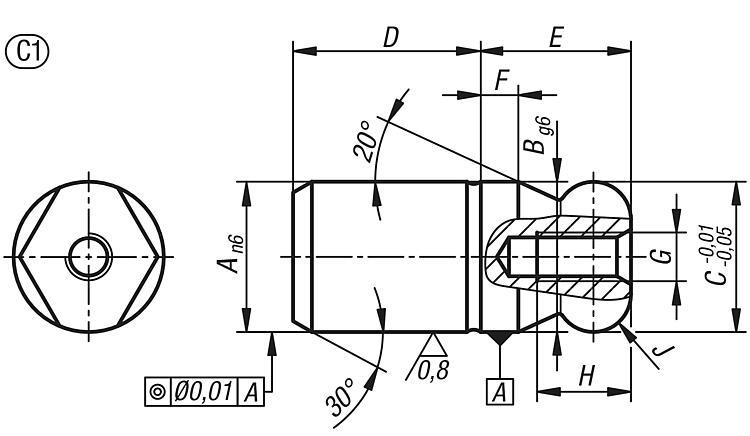

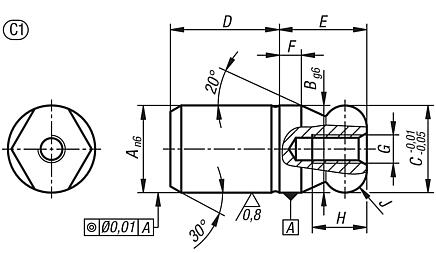

Locating pins with ball end Form C, internal thread one side in blind hole

More information

Drawings

Locating pins with ball end Form C, internal thread one side in blind hole

Item selection/filter

Order No.	Material	A	B	C	D	E	F	G	H	J	Version 1	Thread core hole
03107-052	tool steel	5	5	5	6	5	2	M2,5	4,5	R 1	Internal thread one side	Blind hole
03107-062	tool steel	6	6	6	8	6	2	M3	5	R 1	Internal thread one side	Blind hole
03107-082	tool steel	8	8	8	10	8	2	M3	6	R 2	Internal thread one side	Blind hole
03107-102	tool steel	10	10	10	13	10	2,5	M3	6	R 2,5	Internal thread one side	Blind hole
03107-122	tool steel	12	12	12	15	12	3	M4	8	R 3	Internal thread one side	Blind hole
03107-142	tool steel	14	14	14	17	14	3,5	M4	8	R 3,5	Internal thread one side	Blind hole
03107-162	tool steel	16	16	16	20	16	4	M5	10	R 4	Internal thread one side	Blind hole
03107-202	tool steel	20	20	20	25	20	5	M5	10	R 5	Internal thread one side	Blind hole
03107-252	tool steel	25	25	25	25	25	6	M5	10	R 6	Internal thread one side	Blind hole
03107-302	tool steel	30	30	30	30	30	8	M6	12	R 8	Internal thread one side	Blind hole
03107-402	tool steel	40	40	40	40	40	10	M6	12	R 10	Internal thread one side	Blind hole
03107-502	tool steel	50	50	50	50	50	12	M6	12	R 12	Internal thread one side	Blind hole
03107-5052	stainless steel	5	5	5	6	5	2	M2,5	4,5	R 1	Internal thread one side	Blind hole
03107-5062	stainless steel	6	6	6	8	6	2	M3	5	R 1	Internal thread one side	Blind hole
03107-5082	stainless steel	8	8	8	10	8	2	M3	6	R 2	Internal thread one side	Blind hole
03107-5102	stainless steel	10	10	10	13	10	2,5	M3	6	R 2,5	Internal thread one side	Blind hole
03107-5122	stainless steel	12	12	12	15	12	3	M4	8	R 3	Internal thread one side	Blind hole
03107-5142	stainless steel	14	14	14	17	14	3,5	M4	8	R 3,5	Internal thread one side	Blind hole
03107-5162	stainless steel	16	16	16	20	16	4	M5	10	R 4	Internal thread one side	Blind hole
03107-5202	stainless steel	20	20	20	25	20	5	M5	10	R 5	Internal thread one side	Blind hole
