        Locating pins with ball-end Form A

Item description/product images

DescriptionMaterial:

Tool steel or 1.4305 stainless steel.

Version:Steel hardened and ground.
Stainless steel ground and kolsterised.Note:Ball end locating pins are specially designed to ease the locating process. The tendency to jam, caused by the locating hole not being at right angles to the pin or by the pushing force not being parallel to the pin axis, is minimized by the ball-end form (see illustration 1)Drawing reference:

1) Internal thread one side in blind hole
2) Internal thread both sides in blind holes
3) Internal thread both sides in through hole

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03107 Locating pins with ball-end Form A

244 kB

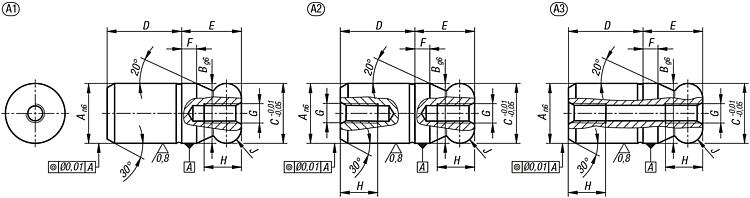

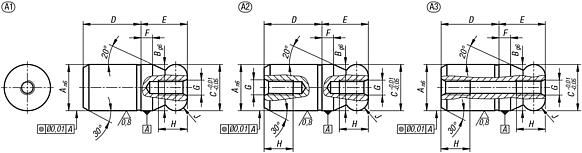

Drawings (total overview)

Locating pins with ball end Form A, internal thread one side in blind hole

More information

Drawings

Locating pins with ball end Form A, internal thread one side in blind hole

Item selection/filter

Order No.	Material	A	B	C	D	E	F	G	H	J	Version 1	Thread core hole
03107-05	tool steel	5	5	5	6	5	2	M2,5	4,5	R 1	Internal thread one side	Blind hole
03107-06	tool steel	6	6	6	8	6	2	M3	5	R 1	Internal thread one side	Blind hole
03107-08	tool steel	8	8	8	10	8	2	M3	6	R 2	Internal thread one side	Blind hole
03107-10	tool steel	10	10	10	13	10	2,5	M3	6	R 2,5	Internal thread one side	Blind hole
03107-12	tool steel	12	12	12	15	12	3	M4	8	R 3	Internal thread one side	Blind hole
03107-14	tool steel	14	14	14	17	14	3,5	M4	8	R 3,5	Internal thread one side	Blind hole
03107-16	tool steel	16	16	16	20	16	4	M5	10	R 4	Internal thread one side	Blind hole
03107-20	tool steel	20	20	20	25	20	5	M5	10	R 5	Internal thread one side	Blind hole
03107-25	tool steel	25	25	25	25	25	6	M5	10	R 6	Internal thread one side	Blind hole
03107-30	tool steel	30	30	30	30	30	8	M6	12	R 8	Internal thread one side	Blind hole
03107-40	tool steel	40	40	40	40	40	10	M6	12	R 10	Internal thread one side	Blind hole
03107-50	tool steel	50	50	50	50	50	12	M6	12	R 12	Internal thread one side	Blind hole
03107-505	stainless steel	5	5	5	6	5	2	M2,5	4,5	R 1	Internal thread one side	Blind hole
03107-506	stainless steel	6	6	6	8	6	2	M3	5	R 1	Internal thread one side	Blind hole
03107-508	stainless steel	8	8	8	10	8	2	M3	6	R 2	Internal thread one side	Blind hole
03107-510	stainless steel	10	10	10	13	10	2,5	M3	6	R 2,5	Internal thread one side	Blind hole
03107-512	stainless steel	12	12	12	15	12	3	M4	8	R 3	Internal thread one side	Blind hole
03107-514	stainless steel	14	14	14	17	14	3,5	M4	8	R 3,5	Internal thread one side	Blind hole
03107-516	stainless steel	16	16	16	20	16	4	M5	10	R 4	Internal thread one side	Blind hole
03107-520	stainless steel	20	20	20	25	20	5	M5	10	R 5	Internal thread one side	Blind hole

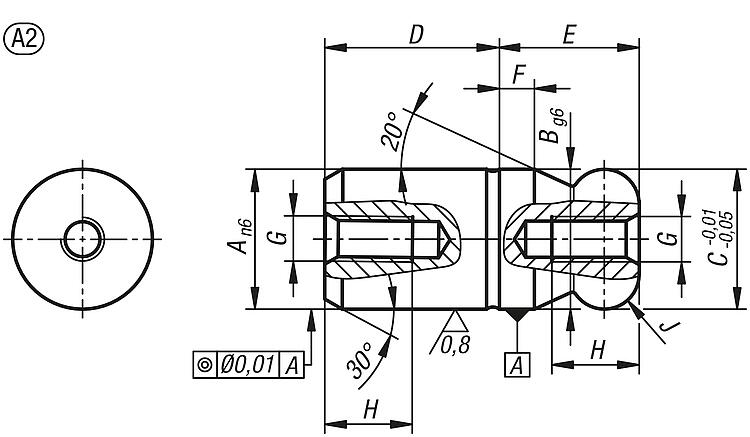

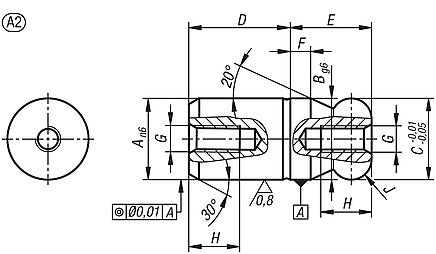

Locating pins with ball end Form A, internal thread both sides in blind holes

More information

Drawings

Locating pins with ball end Form A, internal thread both sides in blind holes

Item selection/filter

Order No.	Material	A	B	C	D	E	F	G	H	J	Version 1	Thread core hole
03107-1002	tool steel	10	10	10	13	10	2,5	M3	6	R 2,5	-	Blind hole
03107-1202	tool steel	12	12	12	15	12	3	M4	8	R 3	-	Blind hole
03107-1402	tool steel	14	14	14	17	14	3,5	M4	8	R 3,5	-	Blind hole
03107-1602	tool steel	16	16	16	20	16	4	M5	10	R 4	-	Blind hole
03107-2002	tool steel	20	20	20	25	20	5	M5	10	R 5	-	Blind hole
03107-2502	tool steel	25	25	25	25	25	6	M5	10	R 6	-	Blind hole
03107-3002	tool steel	30	30	30	30	30	8	M6	12	R 8	-	Blind hole
03107-4002	tool steel	40	40	40	40	40	10	M6	12	R 10	-	Blind hole
03107-5002	tool steel	50	50	50	50	50	12	M6	12	R 12	-	Blind hole
03107-51002	stainless steel	10	10	10	13	10	2,5	M3	6	R 2,5	-	Blind hole
03107-51202	stainless steel	12	12	12	15	12	3	M4	8	R 3	-	Blind hole
03107-51402	stainless steel	14	14	14	17	14	3,5	M4	8	R 3,5	-	Blind hole
03107-51602	stainless steel	16	16	16	20	16	4	M5	10	R 4	-	Blind hole
03107-52002	stainless steel	20	20	20	25	20	5	M5	10	R 5	-	Blind hole

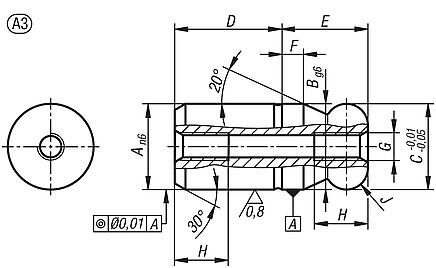

Locating pins with ball end Form A, internal thread both sides in through hole

More information

Drawings

Locating pins with ball end Form A, internal thread both sides in through hole

Item selection/filter

Order No.	Material	A	B	C	D	E	F	G	H	J	Version 1	Thread core hole
03107-0502	tool steel	5	5	5	6	5	2	M2,5	4,5	R 1	-	Through hole
03107-0602	tool steel	6	6	6	8	6	2	M3	5	R 1	-	Through hole
03107-0802	tool steel	8	8	8	10	8	2	M3	6	R 2	-	Through hole
03107-50502	stainless steel	5	5	5	6	5	2	M2,5	4,5	R 1	-	Through hole
03107-50602	stainless steel	6	6	6	8	6	2	M3	5	R 1	-	Through hole
03107-50802	stainless steel	8	8	8	10	8	2	M3	6	R 2	-	Through hole
