        Steel plate swivel and fixed castors with Extrathane® tread, medium load version
        Steel plate swivel castors with Extrathane® tread, medium load version

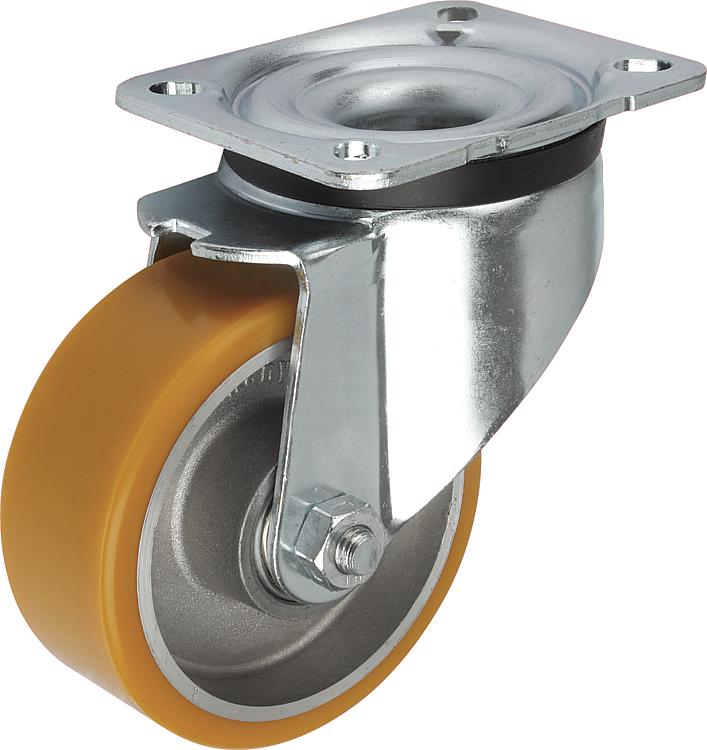

Item description/product images

DescriptionMaterial:Housing steel plate.
Wheel body die-cast aluminium with Extrathane® tread.Version:Housing press formed.

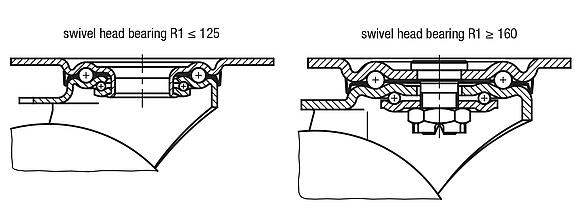

Double ball bearing with ball shield in the castor head.
Precision ball bearings in the wheels.Note:The wheels are corrosion resistant and they have a low rolling resistance. Wheel axle bolted.
From diameter 125 mm the wheels have spokes.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95028_L Swivel castors

244 kB

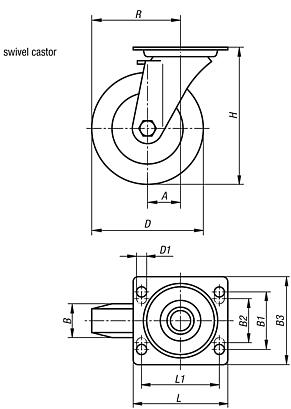

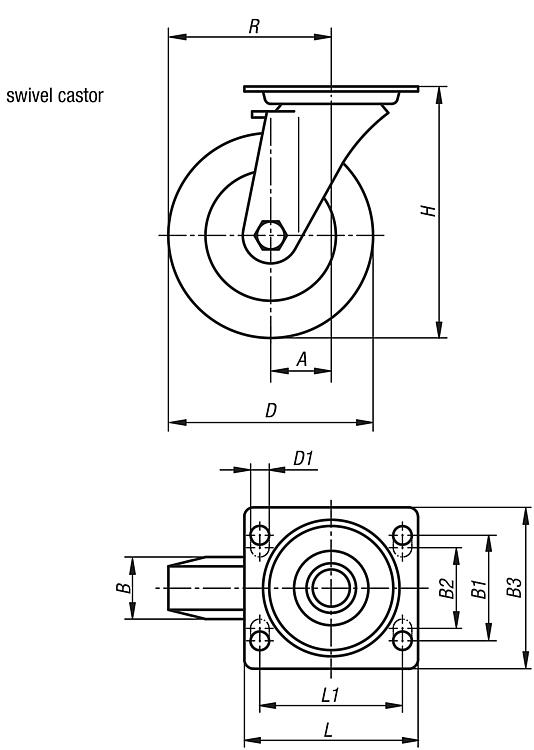

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
95028-10040	Swivel castor	without locking system	ball bearing	45	40	60	-	85	100	9	130	100	80	95	250	on request
95028-12540	Swivel castor	without locking system	ball bearing	48	40	60	-	85	125	9	155	100	80	110,5	250	on request
95028-16050	Swivel castor	without locking system	ball bearing	63	50	80	75	110	160	11	202	140	105	143	550	on request
95028-20050	Swivel castor	without locking system	ball bearing	70	50	80	75	110	200	11	245	140	105	170	800	on request
