        Steel plate swivel and fixed castors with Extrathane® tread, medium load version

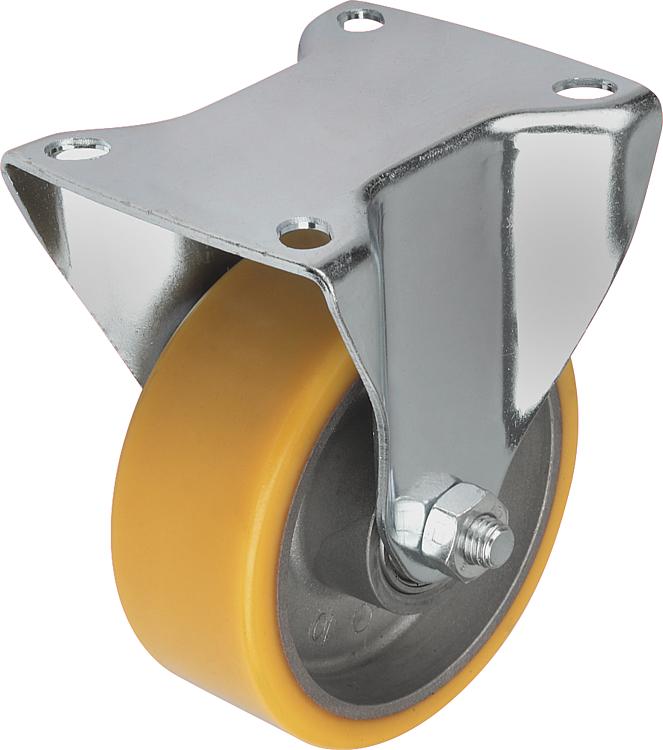

        Steel plate fixed castors with Extrathane® tread, medium load version

Item description/product images

DescriptionMaterial:Housing steel plate.
Wheel body die-cast aluminium with Extrathane® tread.Version:Pressed housing; wheels with precision ball bearingNote:The wheels are corrosion resistant and they have a low rolling resistance. Wheel axle bolted.
From diameter 125 mm the wheels have spokes.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95028_B Fixed castors

160 kB

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	Permissible load kg	Price
95028-100401	Fixed castor	without locking system	Ball bearing	40	60	-	85	100	9	130	100	80	250	on request
95028-125401	Fixed castor	without locking system	Ball bearing	40	60	-	85	125	9	155	100	80	250	on request
95028-160501	Fixed castor	without locking system	Ball bearing	50	80	75	110	160	11	202	140	105	550	on request
95028-200501	Fixed castor	without locking system	Ball bearing	50	80	75	110	200	11	245	140	105	800	on request
