        Swivel and fixed castors standard version
        Fixed castors

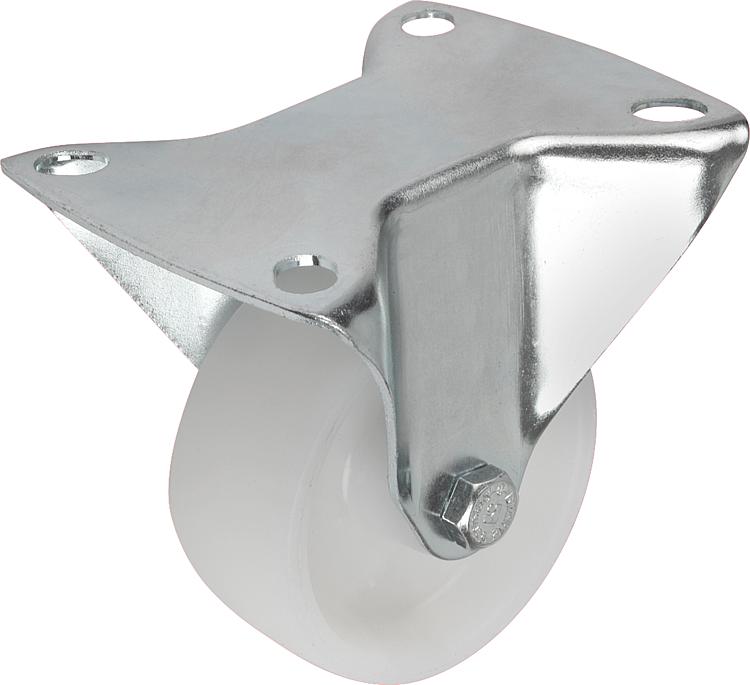

Item description/product images

DescriptionMaterial:Housing steel plate.
Wheels PA 6.Version:Pressed housing; wheels with slide bearingNote:The PA 6 wheels have a low rolling resistance, are non-corroding, resist abrasion and are particularly shock and impact proof.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95034_B Fixed castors

147 kB

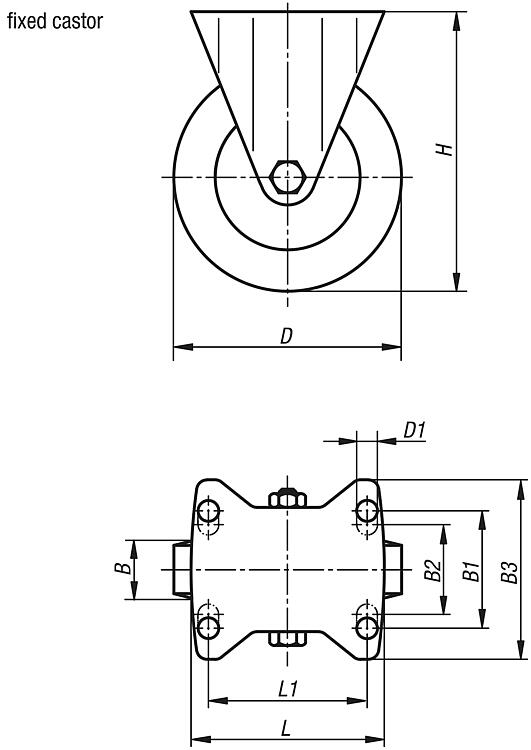

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	Permissible load kg	Price
95034-075321	Fixed castor	without locking system	plain bearing	32	60	-	85	75	9	98	100	80	200	on request
95034-100371	Fixed castor	without locking system	plain bearing	37	60	-	85	100	9	125	100	80	200	on request
95034-125401	Fixed castor	without locking system	plain bearing	40	60	-	85	125	9	150	100	80	200	on request
95034-150501	Fixed castor	without locking system	plain bearing	50	80	75	110	150	11	190	140	105	400	on request
