        Steel plate swivel and fixed castors with polyamide wheels, standard version
        Steel plate swivel castors with polyamide wheels, standard version

Item description/product images

DescriptionMaterial:Housing steel plate.
Wheels PA 6.Version:Housing press formed.
Double ball bearing with ball shield in the castor head.
Plain bearings in the wheels.Note:The PA 6 wheels have a low rolling resistance, are non-corroding, resist abrasion and are particularly shock and impact proof.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95034_L Swivel castors

225 kB

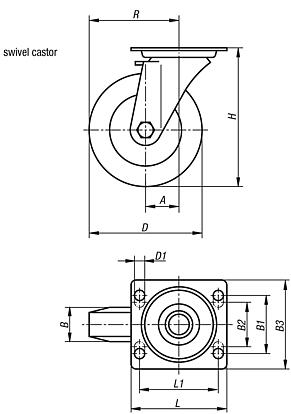

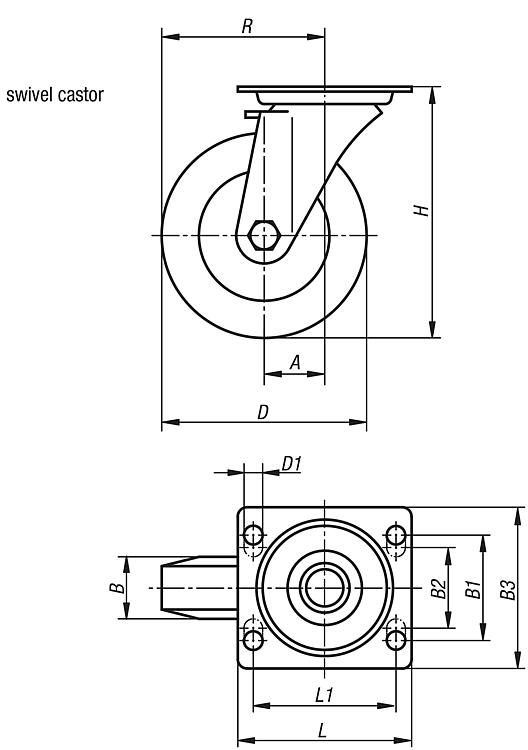

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
95034-07532	Swivel castor	without locking system	Plain bearing	35	32	60	-	85	75	9	98	100	80	72,5	200	on request
95034-10037	Swivel castor	without locking system	Plain bearing	35	37	60	-	85	100	9	125	100	80	85	200	on request
95034-12540	Swivel castor	without locking system	Plain bearing	40	40	60	-	85	125	9	150	100	80	102,5	200	on request
95034-15050	Swivel castor	without locking system	Plain bearing	60	50	80	75	110	150	11	190	140	105	135	400	on request
