Swivel and fixed castorsstandard version
95034

Swivel and fixed castors standard version

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing steel plate.
Wheels PA 6.
Version:Housing press formed.
Double ball bearing with ball shield in the castor head.
Plain bearings in the wheels.
Note:The PA 6 wheels have a low rolling resistance, are non-corroding, resist abrasion and are particularly shock and impact proof.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 95034 Swivel and fixed castorsstandard version 416 kB

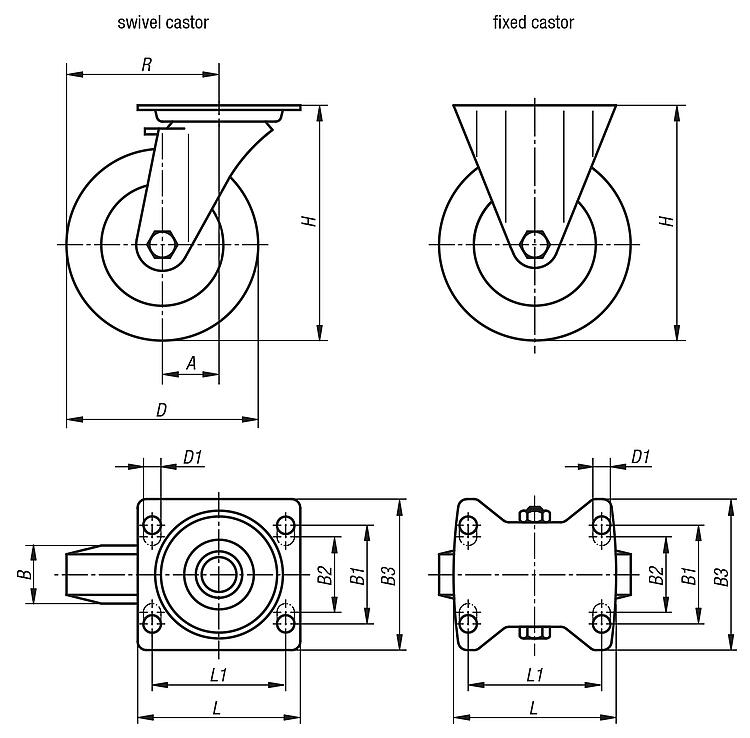

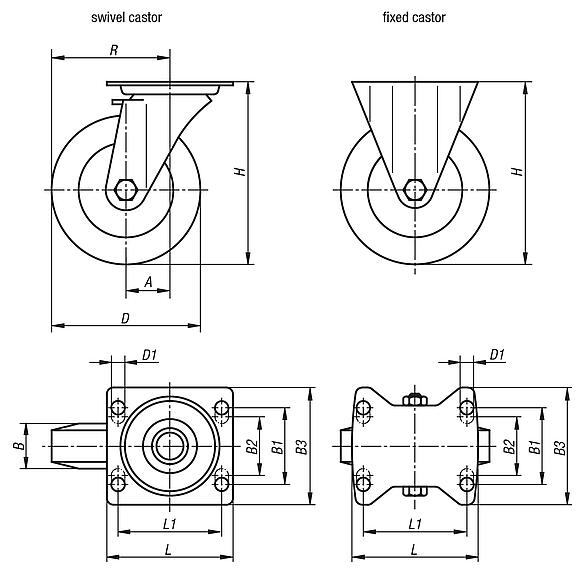

Drawings (total overview)

Swivel and fixed castorsstandard version
Swivel and fixed castorsstandard version

Fixed castors

More information

Drawings

Fixed castors

Item selection/filter

Order No.Version

Wheel
bearing
BB1B2B3LL1HDR1Permissible
load
kg
CADAcc.PriceOrder
95034-075321fixed castorsplain bearing8560-321008098975200 11.58 €
95034-100371fixed castorsplain bearing8560-37100801259100200 16.42 €
95034-125401fixed castorsplain bearing8560-40100801509125200 19.79 €
95034-150501fixed castorsplain bearing11080755014010519011150400 39.12 €

Swivel castors

More information

Drawings

Swivel castors
Swivel castors

Item selection/filter

Order No.Version

Wheel
bearing
ABB1B2B3LL1HDRR1Permissible
load
kg
CADAcc.PriceOrder
95034-07532swivel castorsplain bearing358560-321008098972,575200 17.71 €
95034-10037swivel castorsplain bearing358560-3710080125985100200 22.28 €
95034-12540swivel castorsplain bearing408560-40100801509102,5125200 25.65 €
95034-15050swivel castorsplain bearing6011080755014010519011135150400 48.62 €

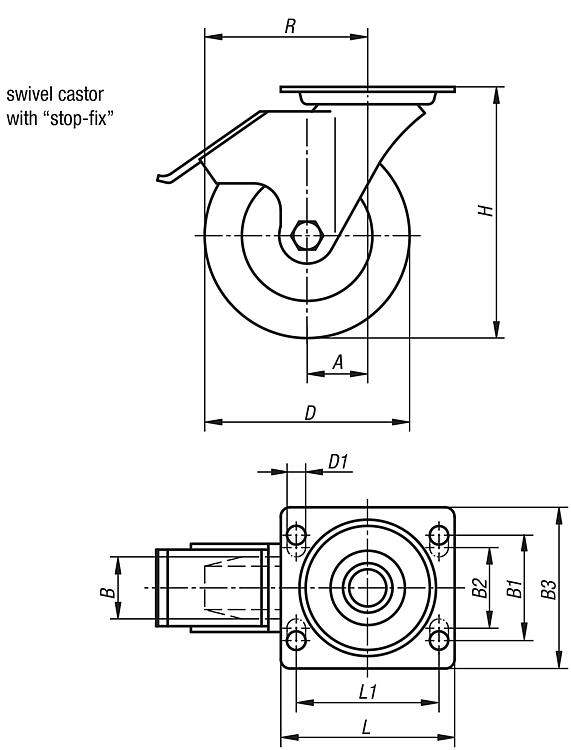

Swivel castors with "stop-fix"

More information

Drawings

Swivel castors with "stop-fix"
Swivel castors with "stop-fix"

Item selection/filter

Order No.Version

Wheel
bearing
ABB1B2B3LL1HDRR1Permissible
load
kg
CADAcc.PriceOrder
95034-075322with stop-fixplain bearing358560-321008098972,575200 35.32 €
95034-100372with stop-fixplain bearing358560-3710080125985100200 39.69 €
95034-125402with stop-fixplain bearing408560-40100801509102,5125200 43.22 €
95034-150502with stop-fixplain bearing6011080755014010519011135150400 72.81 €
