        Grease nipples conical head DIN 71412
        Grease nipples conical head DIN 71412, Form D, 45°, square

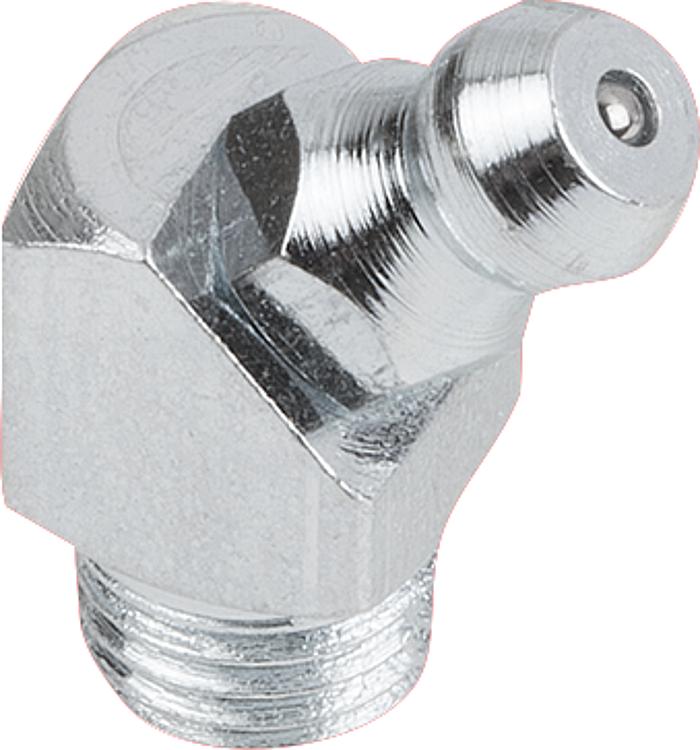

Item description/product images

DescriptionMaterial:Steel.Version:Steel hardened to min. 550 HV 1 and electro zinc-plated.Note:The conical head grease nipples have a tapered thread. They are suitable for grease points which must be lubricated often and reliably. Their versatility makes them the most widespread type of grease nipple.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 97940_D Grease nipples conical head DIN 71412, Form D, 45°, square

172 kB

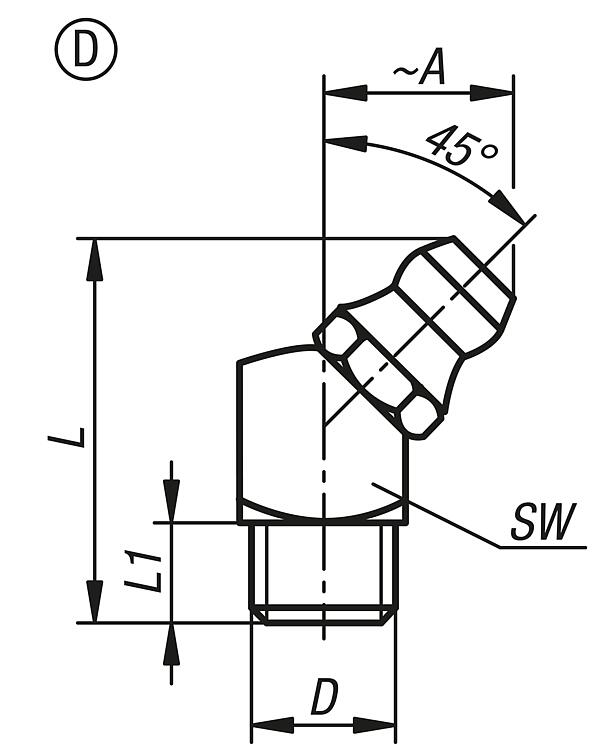

Drawings

Item selection/filter

Order No.	Form	Form-Type	Main material	A	D	L max.	L1	SW
97940-1406100	D	angled 45° with square	steel	10,5	M6x1	21	5,5	9
97940-1408100	D	angled 45° with square	steel	10,5	M8x1	21	5,5	9
97940-1408125	D	angled 45° with square	steel	10,5	M8x1,25	21	5,5	9
97940-1410100	D	angled 45° with square	steel	11	M10x1	21	5,5	11
97940-1418	D	angled 45° with square	steel	11	R1/8	21	5,5	11
