Grease nipples conical head DIN 71412, Form A, straight

go back

Products
- Product overview
  - norelem technoshop
    - Lubricants Adhesives Grease nipples
      - Grease nipples
        Grease nipples conical head DIN 71412

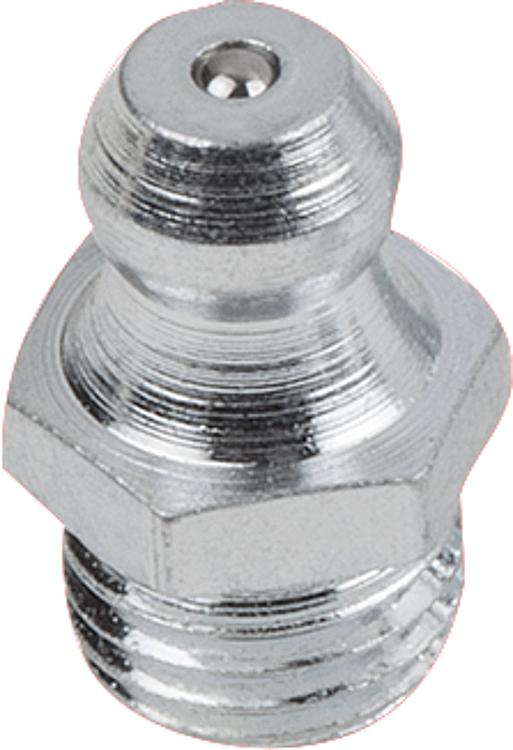

        Grease nipples conical head DIN 71412, Form A, straight

Item description/product images

DescriptionMaterial:

Steel or 1.4305 stainless steel.

Version:Steel hardened, min. 550 HV 1, electro zinc-plated.
Stainless steel bright.Note:The conical head grease nipples have a tapered thread. They are suitable for grease points which must be lubricated often and reliably. Their versatility makes them the most widespread type of grease nipple.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 97940_A Grease nipples conical head DIN 71412, Form A, straight

144 kB

Drawings

Item selection/filter

Order No.	Form	Form-Type	Main material	D	L1	L max.	SW
97940-1106100	A	straight with hexagon socket	steel	M6x1	5,5	15	7
97940-1108100	A	straight with hexagon socket	steel	M8x1	5,5	15	9
97940-1108125	A	straight with hexagon socket	steel	M8x1,25	5,5	15	9
97940-1110100	A	straight with hexagon socket	steel	M10x1	5,5	15	11
97940-1110150	A	straight with hexagon socket	steel	M10x1,5	5,5	15	11
97940-1118	A	straight with hexagon socket	steel	R1/8	5,5	15	11
97940-1114	A	straight with hexagon socket	steel	R1/4	6,5	17,5	14
97940-2106100	A	straight with hexagon socket	stainless steel	M6x1	5,5	15	7
97940-2108100	A	straight with hexagon socket	stainless steel	M8x1	5,5	15	9
97940-2108125	A	straight with hexagon socket	stainless steel	M8x1,25	5,5	15	9
97940-2110100	A	straight with hexagon socket	stainless steel	M10x1	5,5	15	11
97940-2110150	A	straight with hexagon socket	stainless steel	M10x1,5	5,5	15	11
97940-2118	A	straight with hexagon socket	stainless steel	R1/8	5,5	15	11
97940-2114	A	straight with hexagon socket	stainless steel	R1/4	6,5	17,5	14
