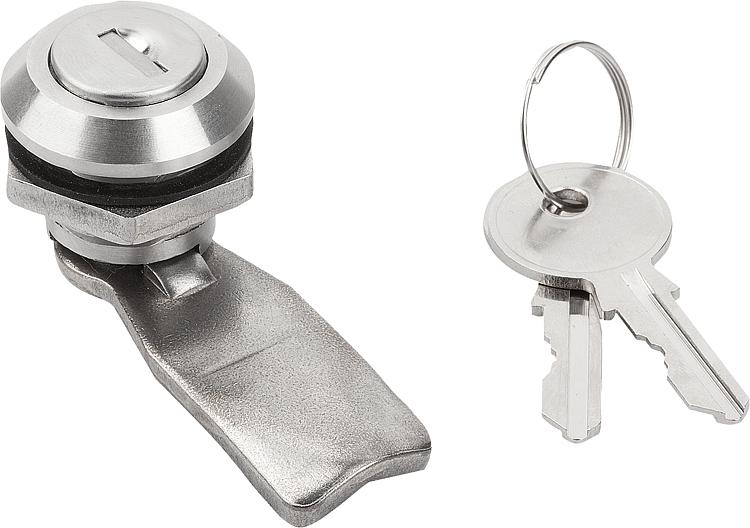

        Quarter-turn lock, lockable, stainless steel 1.4401, housing diameter 28 mm

Item description/product images

DescriptionMaterial:

Stainless steel 1.4401.

Version:Bright.Note:Lockable quarter-turn lock for right or left mounting with 90° closing. The quarter-turn lock can be installed pre-assembled. This lockable quarter-turn lock is supplied with 2 keys. The key can be removed in both the closed and open position. The cylinder locks have a single-key system i.e. the same key works in all locks (lock type 1333).

Please order required tongue separately. Every tongue can be combined with this housing.

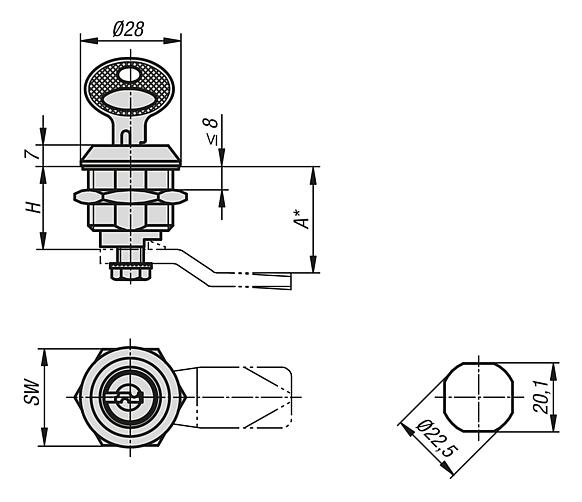

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Tongue for stainless steel quarter-turn lock 05569.
Key for quarter-turn lock 05586.Special features:
