        Quarter-turn lock zinc, lockable

Item description/product images

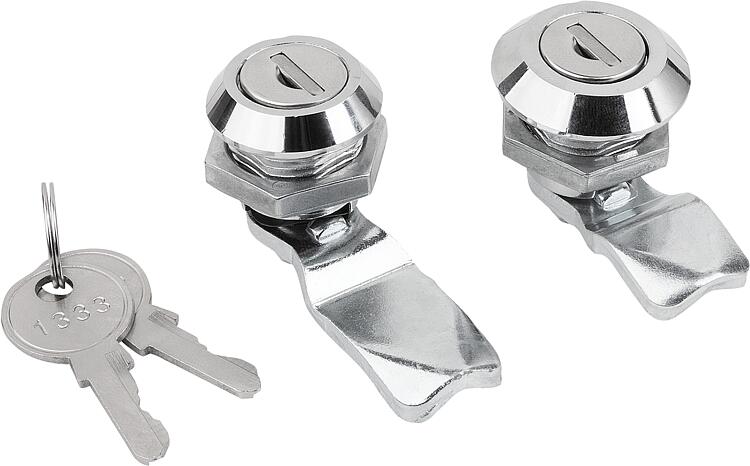

DescriptionMaterial:Housing and actuator die-cast zinc.
Nut zinc.
Tongue steel.Version:Housing and actuator chrome-plated.
Nut bright.
Tongue electro zinc-plated.Note:Lockable quarter-turn lock for right or left mounting with 90° closing. The quarter-turn lock can be installed pre-assembled.
The fastening nut has claws one side allowing it to be used as an earthing nut.
With stainless steel cylinder cap and dust cover.

These lockable quarter-turn locks are each delivered with 2 keys. The key can be removed in both positions (open and closed). The locks have a single key system, i.e. they can all be opened using the same key (cylinder lock 1333).

Please order required tongue version separately. Every tongue can be combined with every housing.Accessory:Tonge steel, with stop 05564-15.
Key for quarter-turn lock 05586.

DownloadHere is all the information as a PDF datasheet:

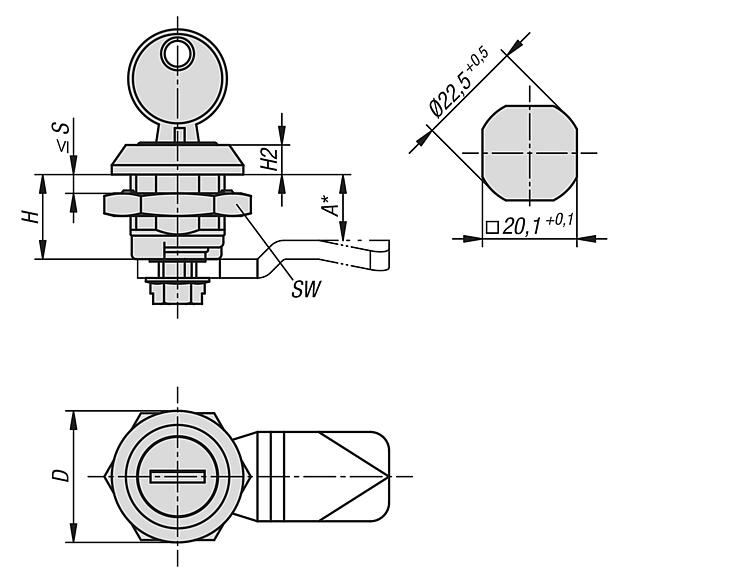

Are you looking for CAD data? These can be found directly in the product table.
