        Quarter-turn locks, stainless steel 1.4305, housing diameter 28 mm

Item description/product images

DescriptionMaterial:

Stainless steel 1.4305.

Version:Bright.Note:Rating IP65. This is achieved using an additional O-ring underneath the actuator and a PUR seal foamed onto the housing. The quarter-turn lock can be installed pre-assembled.

Please order the required tongue separately. Every tongue can be combined with this housing.

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Key 05586.

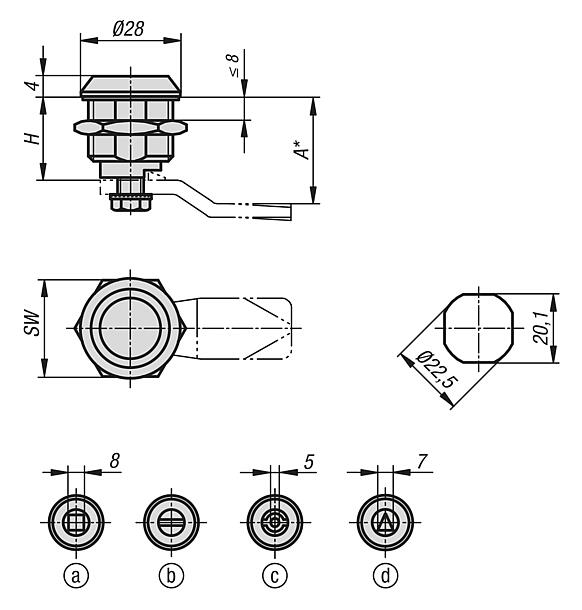

Tongue for stainless steel quarter-turn lock 05569.Drawing reference:

Actuation:
a) square 8 mm
b) slit
c) double lug 5 mm
d) triangle 7 mm

Special features:
