Quarter-turn locks, stainless steel 1.4401 with wing grip and hole for padlock

05571-02

Quarter-turn locks, stainless steel 1.4401 with wing grip and...

Products
- Product overview
  - Flexible standard component system
    - Toggle clamps Pneumatic clamps Accessories for clamps Latches Quarter-turn locks
      - Quarter-turn locks

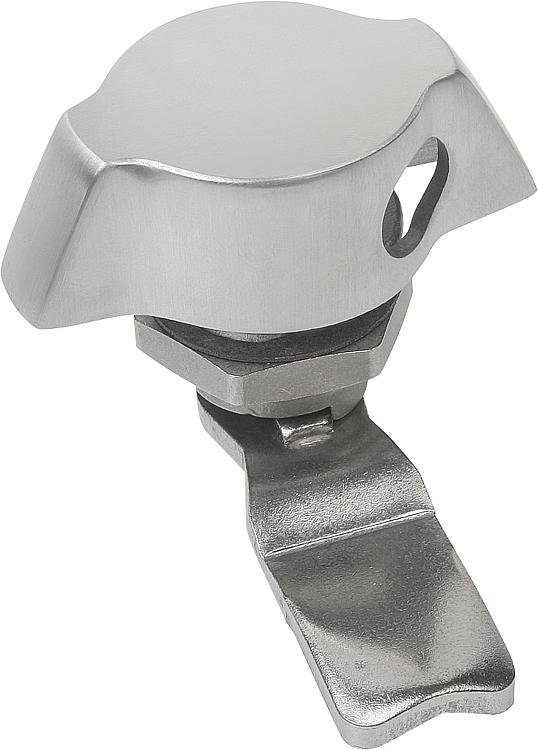

        Quarter-turn locks, stainless steel 1.4401 with wing grip and hole for padlock

Item description/product images

DescriptionMaterial:

Stainless steel 1.4401.

Version:Bright.
Grip polished.Note:Quarter-turn lock with wing grip. Right or left deployment. The lock can be installed pre-assembled.

Water and dust tight according to IP65.

Please order the desired tongue type separately. Every tongue can be combined with every housing.

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Tongue for stainless steel quarter-turn lock 05566-07.Special features:

Stainless steel

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05571-02 Quarter-turn lock stainless steel with wing grip

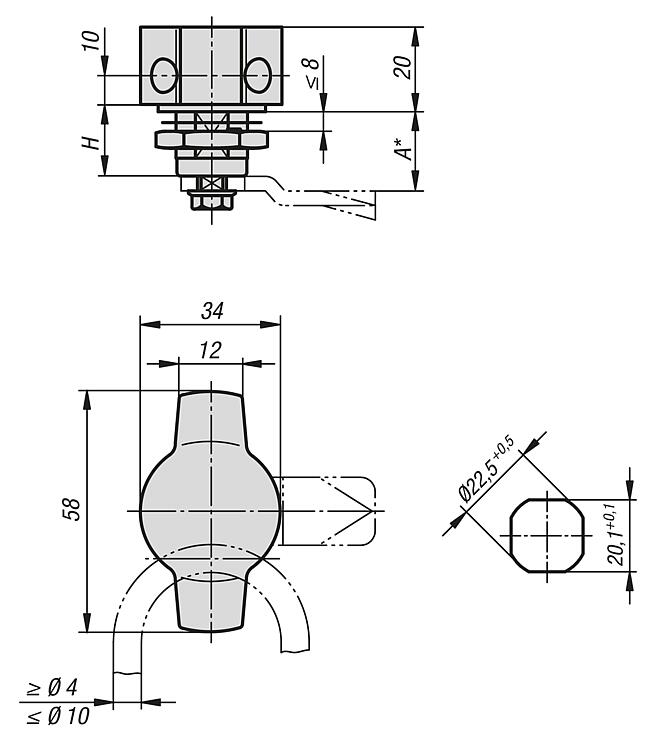

Drawings

Quarter-turn locks, stainless steel 1.4401 with wing grip and hole for padlock

Item selection/filter

Order No.	Actuation	H	CAD	Acc.	Price	Order
05571-02-18	lockable grip	18			0.00 €
