        Locating pins with ball-end Form B
        Locating pins with ball end Form B, internal thread both sides in blind holes

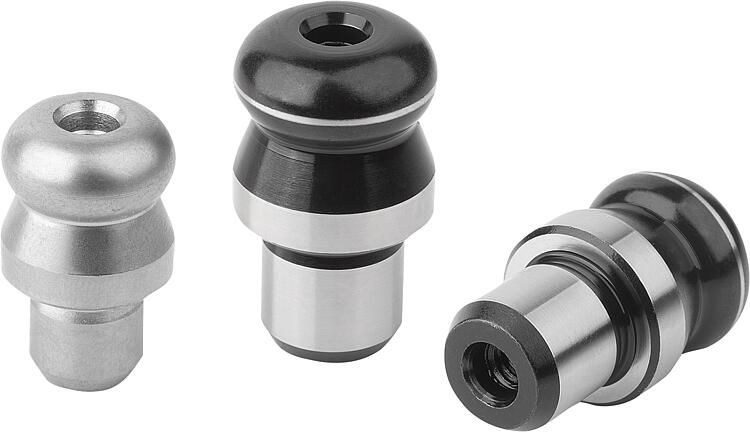

Item description/product images

DescriptionMaterial:

Tool steel or 1.4305 stainless steel.

Version:Steel hardened and ground.
Stainless steel ground and kolsterised.Note:Ball end locating pins are specially designed to ease the locating process. The tendency to jam, caused by the locating hole not being at right angles to the pin or by the pushing force not being parallel to the pin axis, is minimized by the ball-end form (see illustration).Drawing reference:

1) Internal thread one side in blind hole
2) Internal thread both sides in blind holes
3) Internal thread both sides in through hole

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03108_B2 Locating pins with ball end Form B, internal thread both sides in blind holes

252 kB

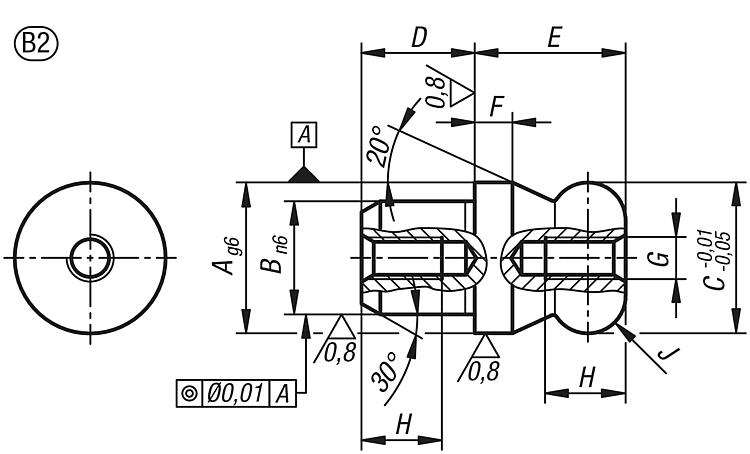

Drawings

Item selection/filter

Order No.	Material	Size	A	B	C	D	E	F	G	H	J	Threaded core hole
03108-2002	tool steel	2	20	14	20	14	20	5	M5	10	R 5	Blind hole
03108-2202	tool steel	2	22	16	22	16	22	5,5	M5	10	R 5,5	Blind hole
03108-2502	tool steel	2	25	18	25	18	25	6	M5	10	R 6	Blind hole
03108-52002	stainless steel	2	20	14	20	14	20	5	M5	10	R 5	Blind hole
