        Locating pins with ball-end Form B
        Locating pins with ball end Form B, internal thread one side in blind hole

Item description/product images

DescriptionMaterial:

Tool steel or 1.4305 stainless steel.

Version:Steel hardened and ground.

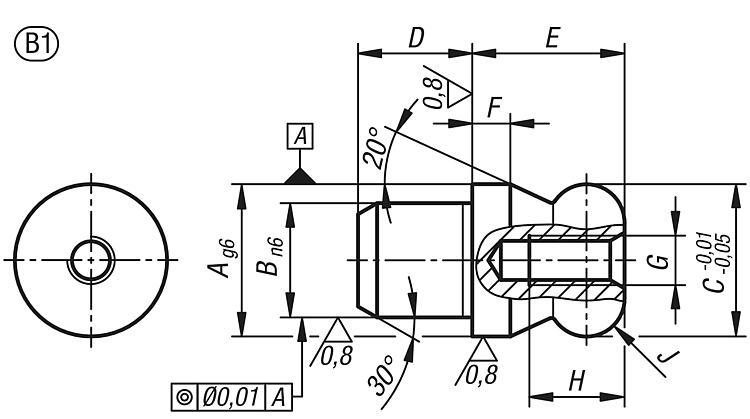

Stainless steel ground and kolsterised.Note:Ball end locating pins are specially designed to ease the locating process. The tendency to jam, caused by the locating hole not being at right angles to the pin or by the pushing force not being parallel to the pin axis, is minimized by the ball-end form (see illustration).Drawing reference:

1) Internal thread one side in blind hole
2) Internal thread both sides in blind holes
3) Internal thread both sides in through hole

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03108_B1 Locating pins with ball end Form B, internal thread one side in blind hole

252 kB

Drawings

Item selection/filter

Order No.	Material	A	B	C	D	E	F	G	H	J	Version 1	Thread core hole
03108-06	tool steel	6	4	6	4	6	2	M2,5	4,5	R 1	Internal thread one side	Blind hole
03108-08	tool steel	8	6	8	6	8	2	M3	6	R 2	Internal thread one side	Blind hole
03108-10	tool steel	10	7	10	7	10	2,5	M3	6	R 2,5	Internal thread one side	Blind hole
03108-12	tool steel	12	8	12	8	12	3	M4	8	R 3	Internal thread one side	Blind hole
03108-14	tool steel	14	10	14	10	14	3,5	M4	8	R 3,5	Internal thread one side	Blind hole
03108-16	tool steel	16	12	16	12	16	4	M5	10	R 4	Internal thread one side	Blind hole
03108-20	tool steel	20	14	20	14	20	5	M5	10	R 5	Internal thread one side	Blind hole
03108-22	tool steel	22	16	22	16	22	5,5	M5	10	R 5,5	Internal thread one side	Blind hole
03108-25	tool steel	25	18	25	18	25	6	M5	10	R 6	Internal thread one side	Blind hole
03108-506	stainless steel	6	4	6	4	6	2	M2,5	4,5	R 1	Internal thread one side	Blind hole
03108-508	stainless steel	8	6	8	6	8	2	M3	6	R 2	Internal thread one side	Blind hole
03108-510	stainless steel	10	7	10	7	10	2,5	M3	6	R 2,5	Internal thread one side	Blind hole
03108-512	stainless steel	12	8	12	8	12	3	M4	8	R 3	Internal thread one side	Blind hole
03108-514	stainless steel	14	10	14	10	14	3,5	M4	8	R 3,5	Internal thread one side	Blind hole
03108-516	stainless steel	16	12	16	12	16	4	M5	10	R 4	Internal thread one side	Blind hole
03108-520	stainless steel	20	14	20	14	20	5	M5	10	R 5	Internal thread one side	Blind hole
