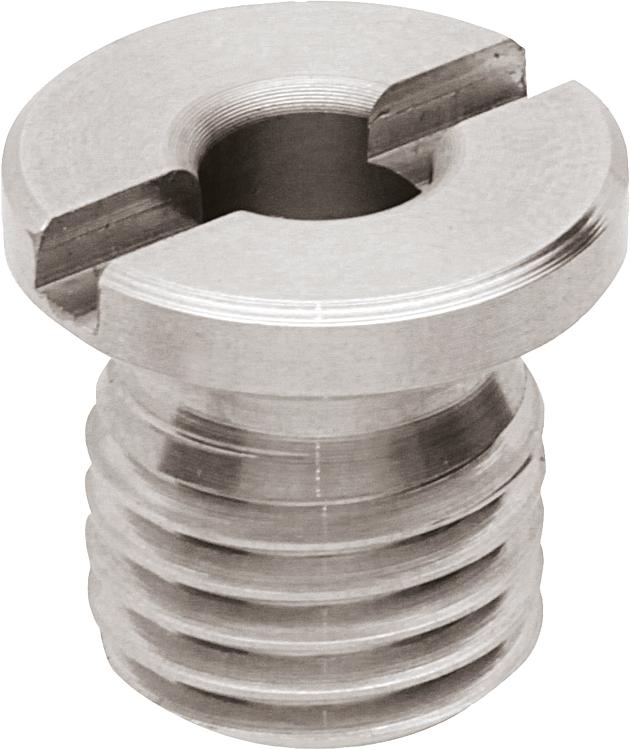

Magnetic bushes

09220

Magnetic bushes

Products
- Product overview
  - Flexible standard component system
    - Magnets
      - Magnetic bushes

Item description/product images

DescriptionMaterial:Housing stainless steel.
Magnet neodymium.Version:Housing bright.Note:A magnet in the bush attracts the pin (09221) and holds it with the specified retaining force.

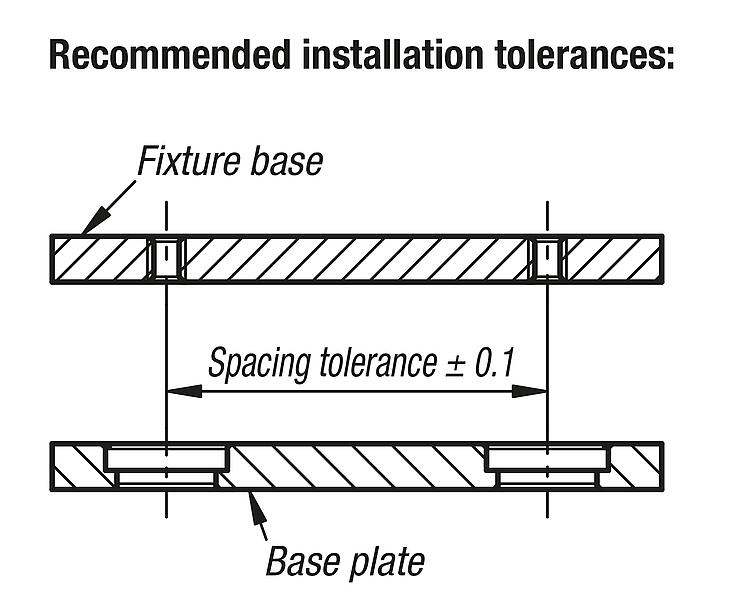

Repeat accuracy ± 0.25. The repeat accuracy can be increased with the aid of additional locating pins.

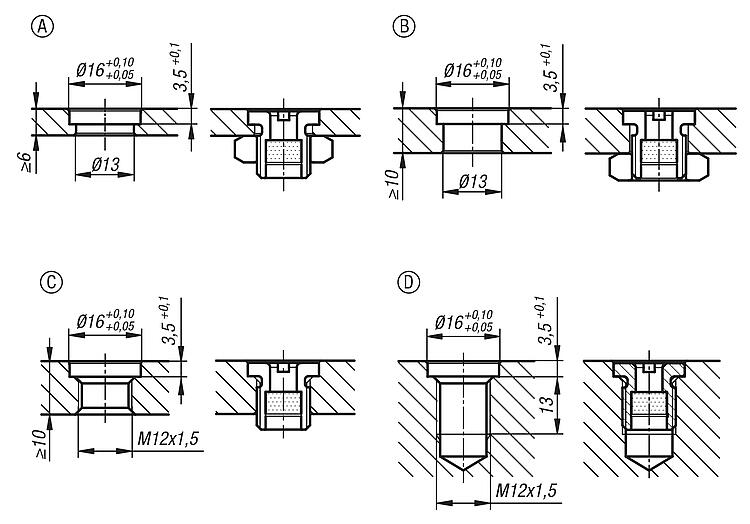

Installation dimensions for Form A:
min. plate thickness 6 mm.
Installation dimensions for Form B:
max. plate thickness 10 mm.
Installation dimensions for Form C:
plate thickness > 10 mm.
Installation dimensions for Form D:

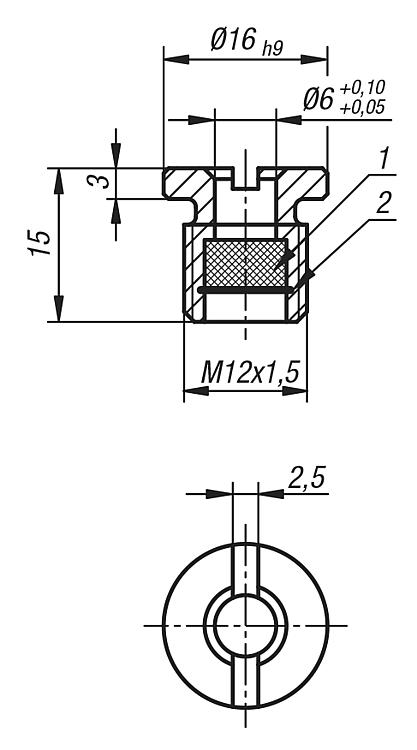

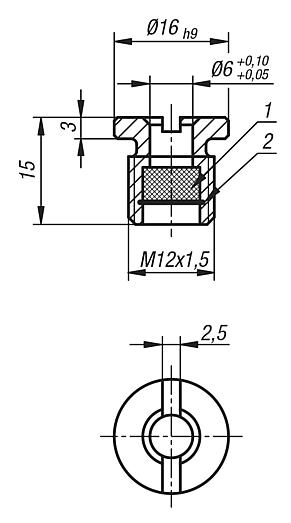

blind hole.On request:Suitable nuts.Accessory:Pin 09221.Drawing reference:

1) magnet
2) circlip

Special features:

Stainless steel

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09220 Magnetic bushes

Technical information for magnetic bushes 09220 and 09221

Drawings

Magnetic bushes

Magnetic bushes

Item selection/filter

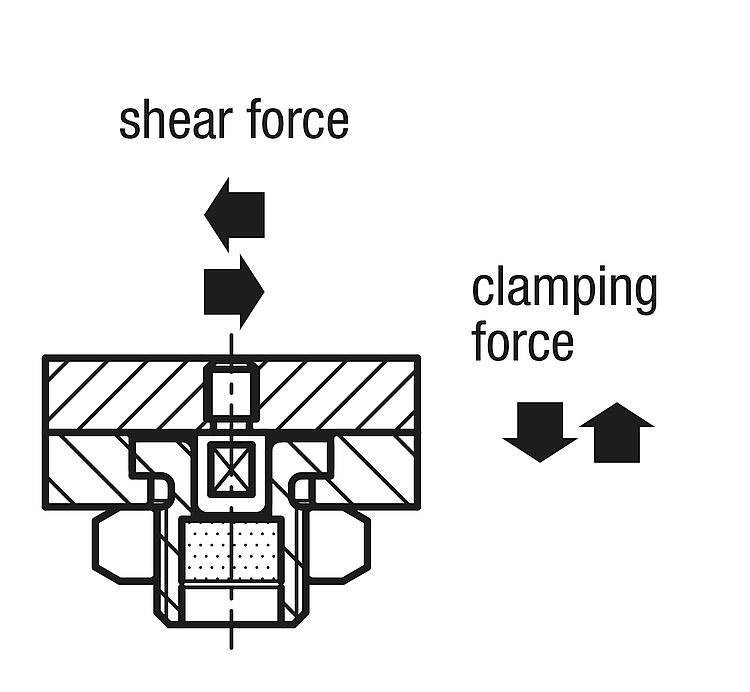

Order No.	Clamping force N	Shearing force kN	Temperature resistance	CAD	Acc.	Price	Order
09220-6	7	0,8	≤80 °C			8.90 €
