Item description/product images

Show/filter all items
DescriptionMaterial:Aluminium.Version:Black anodisedNote:Rigid design aluminium linear scales with self-adhesive back or with screw holes.
Cross section 15 x 2 mm.

Black anodised surface and high contrast graduations for legibility without shading. The graduations are deep lasered.
On request:– Zero mark lower right or centre
– Graduations upper right or both sides
– Other lengths
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 21882 Linear scalesself adhesive or with screw holes, aluminium 316 kB

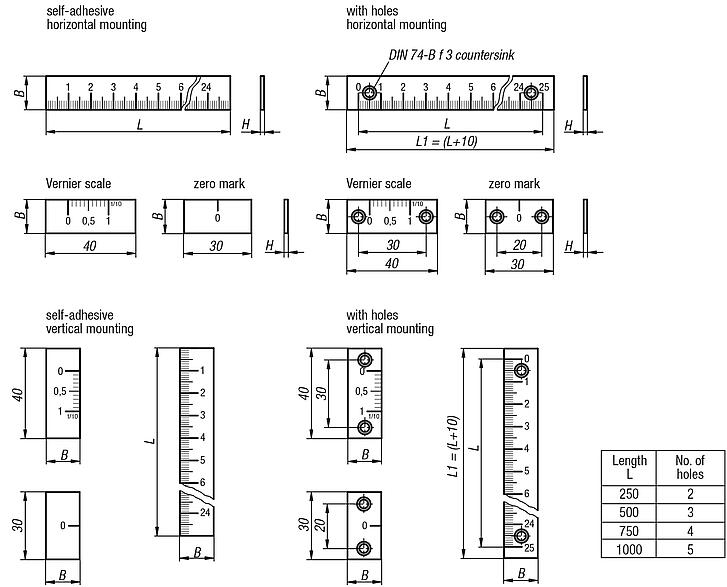

Drawings (total overview)

Linear scalesself adhesive or with screw holes, aluminium

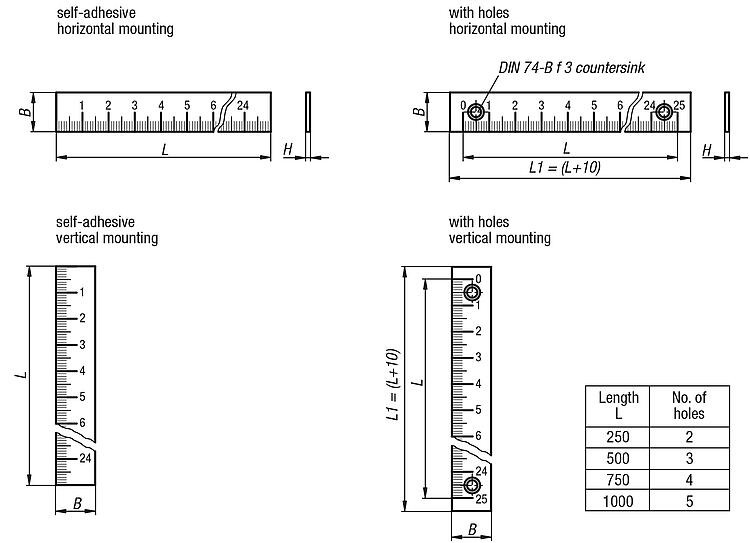

Aluminium scales, self-adhesive or with holes

More information

Drawings

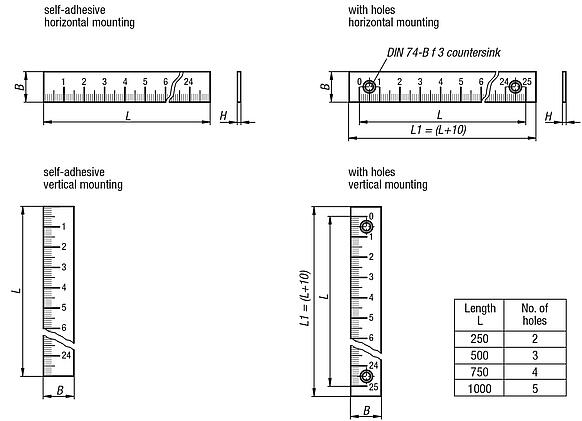

Aluminium scales, self-adhesive or with holes

Overview of items (compressed)

Item selection/filter
Order No.
self adhesive
Order No.
fastening holes
Product typeAssembly
position
Zero pointDivisionGraduationsB

HLFilter
21882-000010X21882-100010Xscalehorizontalleft1 mmbottom152250/500/750/1000
21882-010010X21882-110010Xscaleverticaltop1 mmleft152250/500/750/1000

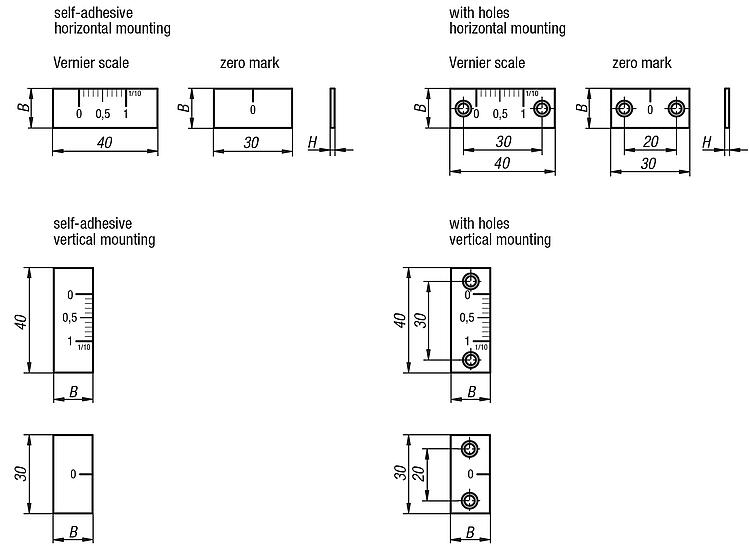

Nonius and zero reference, aluminium, self-adhesive or with holes

More information

Drawings

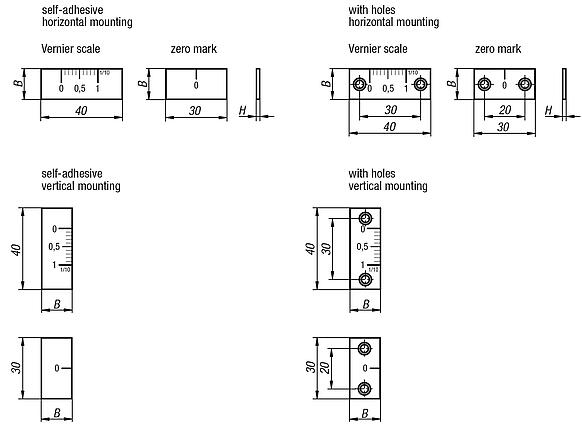

Nonius and zero reference, aluminium, self-adhesive or with holes

Overview of items (compressed)

Item selection/filter
Order No.
self adhesive
Order No.
fastening holes
Product typeAssembly
position
Zero pointGraduationsB

HFilter
21882-000121882-1001vernier scalehorizontallefttop152
21882-010121882-1101vernier scaleverticaltopright152
21882-0021882-10zero reference markhorizontal--152
21882-0121882-11zero reference markvertical--152
