        Swivel and fixed castors stainless steel for sterile areas

Item description/product images

Show/filter all items

DescriptionMaterial:

Housing stainless steel 1.4301.
Wheel rim, high-quality thermoplastic polyurethane.
Wheel tread, high-quality polyamide.

Version:Housing press formed.
Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle bolted.
Swivel and fixed castors with mounting plate.Application:Loads can be transported with low noise and maximum ease in area's with high hygiene requirements.Temperature range:-20 °C - +70 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95046-01 Swivel and fixed castors stainless steel for sterile areas

350 kB

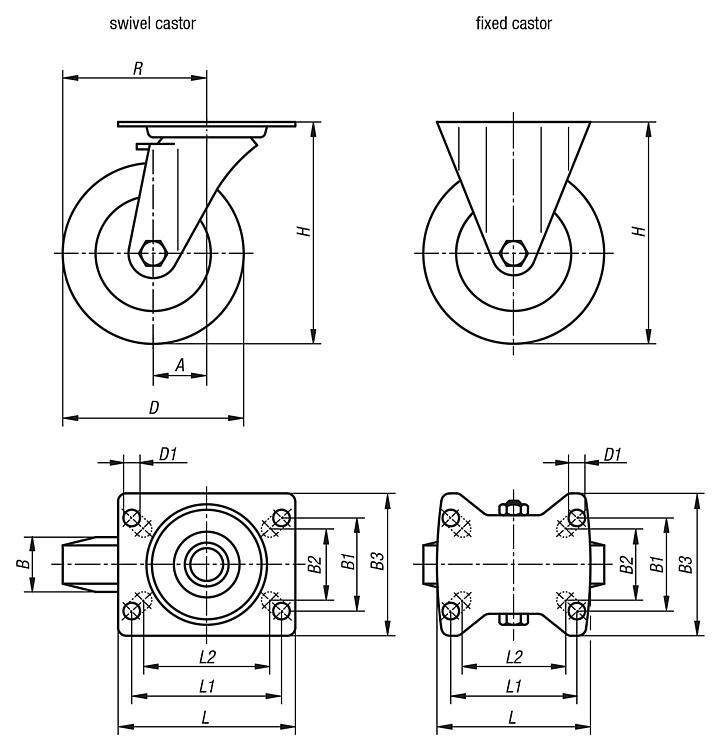

Drawings (total overview)

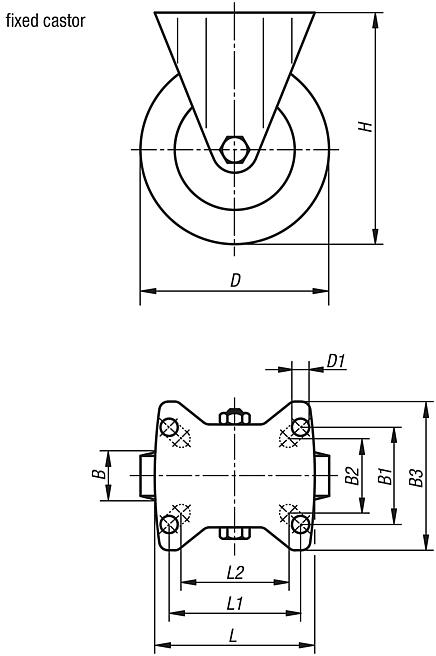

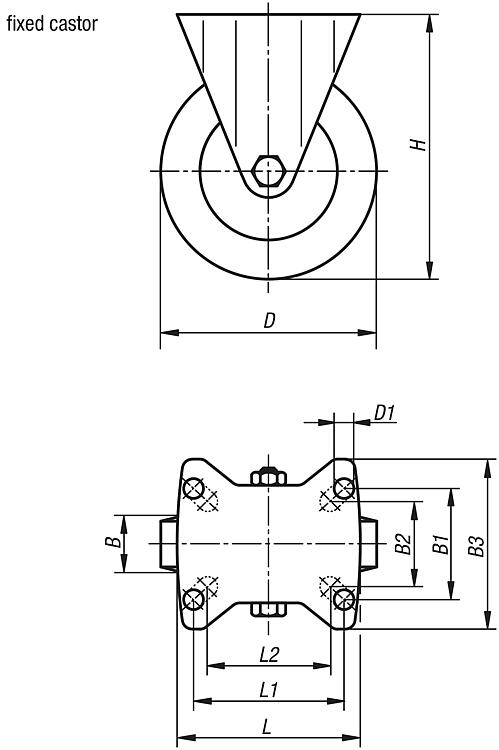

Fixed castors, stainless steel, for sterile areas

More information

Drawings

Fixed castors, stainless steel, for sterile areas

Item selection/filter

Order No.	Item	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	Price
95046-01-211000351	Fixed castor	plain bearing	35	60	55	85	100	9	125	100	80	76	200	on request
95046-01-211250401	Fixed castor	plain bearing	40	60	55	85	125	9	150	100	80	76	250	on request
95046-01-211600451	Fixed castor	plain bearing	45	80	75	110	160	11	195	140	105	-	400	on request
95046-01-212000501	Fixed castor	plain bearing	50	80	75	110	200	11	235	140	105	-	400	on request

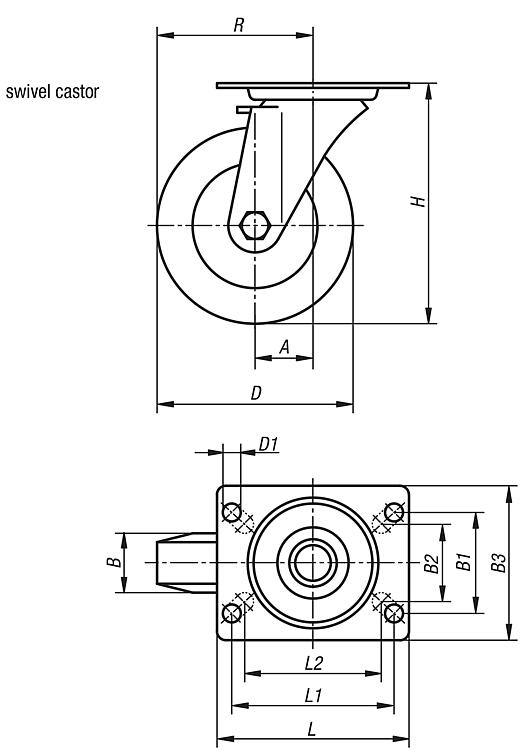

Swivel castors, stainless steel, for sterile areas

More information

Drawings

Swivel castors, stainless steel, for sterile areas

Item selection/filter

Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	R	Permissible load kg	Price
95046-01-21100035	Swivel castor	plain bearing	30	35	60	55	85	100	9	125	100	80	76	80	200	on request
95046-01-21125040	Swivel castor	plain bearing	40	40	60	55	85	125	9	150	100	80	76	102,5	250	on request
95046-01-21160045	Swivel castor	plain bearing	60	45	80	75	110	160	11	195	140	105	-	140	400	on request
95046-01-21200050	Swivel castor	plain bearing	65	50	80	75	110	200	11	235	140	105	-	165	400	on request

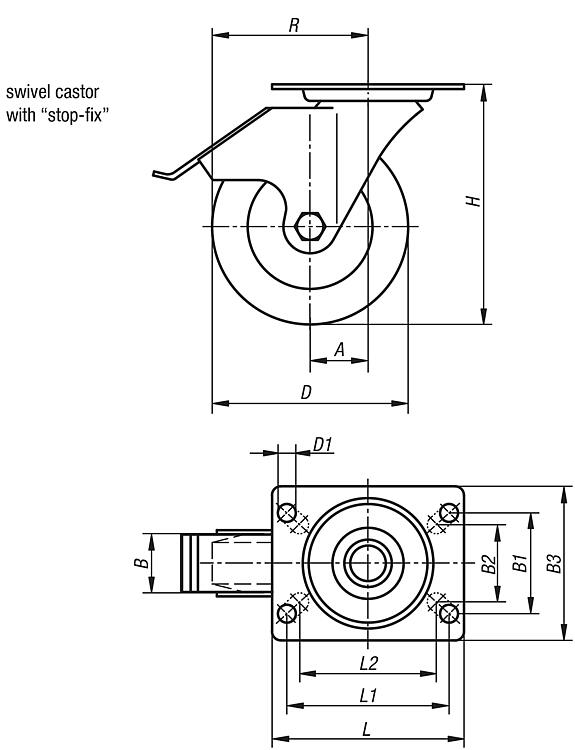

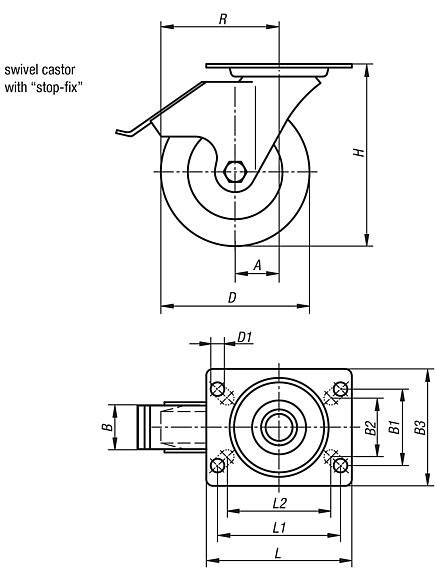

Swivel castors with stop fix, stainless steel, for sterile areas

More information

Drawings

Swivel castors with stop fix, stainless steel, for sterile areas

Item selection/filter

Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	R	Permissible load kg	Price
95046-01-211000352	Swivel castor	plain bearing	30	35	60	55	85	100	9	125	100	80	76	80	200	on request
95046-01-211250402	Swivel castor	plain bearing	40	40	60	55	85	125	9	150	100	80	76	102,5	250	on request
95046-01-211600452	Swivel castor	plain bearing	60	45	80	75	110	160	11	195	140	105	-	140	400	on request
95046-01-212000502	Swivel castor	plain bearing	65	50	80	75	110	200	11	235	140	105	-	165	400	on request
