        Cam levers, stainless steel with internal and external thread, plastic-metal thrust washer and stainless steel stud - inch

Item description/product images

DescriptionMaterial:

Handles 1.4308 stainless steel.
Thrust washer plastic PA 66 GF 35-X, fibreglass reinforced.
Hinge pin, washer and screw 1.4305 stainless steel.

Version:Handle electropolished or blasted.
Thrust washer black.
Hinge pin, washer and screw bright.Note:Plastics are subject to creeping under load (retardation).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04232 inch Cam levers stainless steel with external and internal threads, inch

175 kB

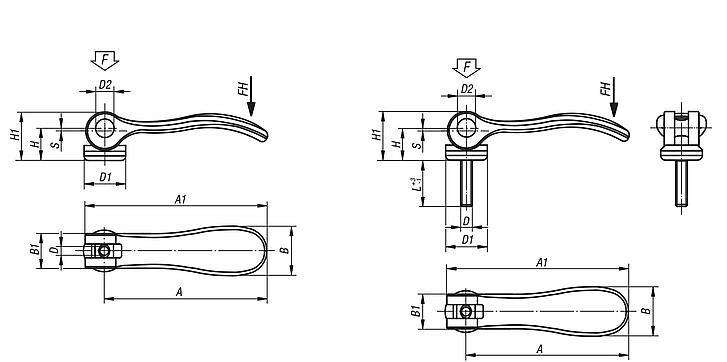

Drawings (total overview)

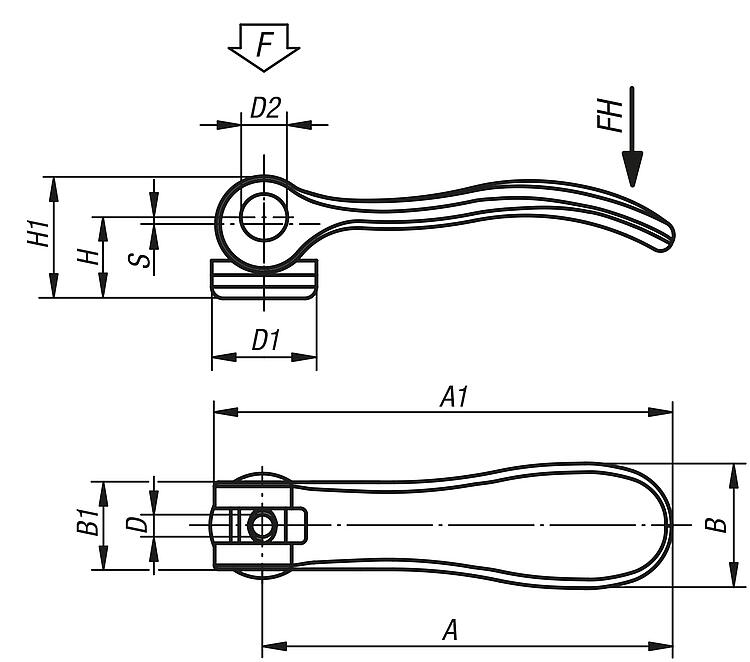

Cam levers, stainless steel, with internal thread, plastic-metal thrust washer - inch

More information

Drawings

Cam levers, stainless steel, with internal thread, plastic-metal thrust washer - inch

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	Travel S	Clamping force F (kN)	Hand force FH N
04232-95120AD	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90
04232-95120AE	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90
04232-05120AE	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100
04232-05120A0	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100
04232-05120A1	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100
04232-15120A1	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120
04232-15120A2	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120
04232-25120A3	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	1,5	8	350
04232-95123AD	blasted	6-32	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90
04232-95123AE	blasted	8-32	12	6	14,4	11,5	9	13	36,2	41,7	1	1,5	90
04232-05123AE	blasted	8-32	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100
04232-05123A0	blasted	10-24	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100
04232-05123A1	blasted	10-32	15,4	8	18	13	11,2	17	52,3	59,1	1	2,5	100
04232-15123A1	blasted	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120
04232-15123A2	blasted	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	1,2	4	120
04232-25123A3	blasted	5/16-18	27,1	11	33,3	24	18	28,5	96	108	1,5	8	350

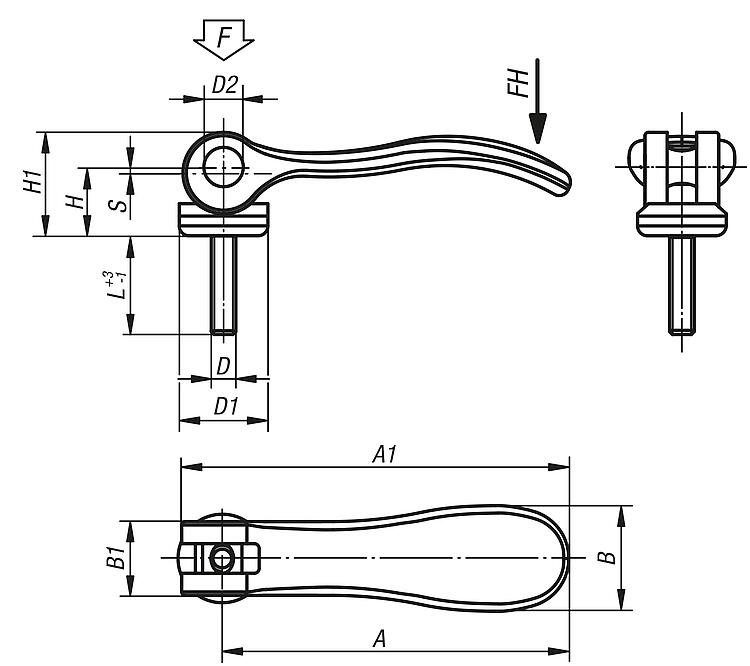

Cam levers, stainless steel, with external thread, plastic-metal thrust washer and stainless steel stud - inch

More information

Drawings

Cam levers, stainless steel, with external thread, plastic-metal thrust washer and stainless steel stud - inch

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	L	Travel S	Clamping force F (kN)	Hand force FH N
04232-95120ADX10	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90
04232-95120ADX15	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90
04232-95120ADX30	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90
04232-95120AEX10	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90
04232-95120AEX15	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90
04232-95120AEX30	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90
04232-05120AEX15	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	15	1	2,5	100
04232-05120AEX20	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100
04232-05120AEX30	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100
04232-05120A0X20	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100
04232-05120A0X30	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100
04232-05120A0X40	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100
04232-05120A0X50	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100
04232-05120A1X20	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100
04232-05120A1X30	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100
04232-05120A1X40	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100
04232-05120A1X50	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100
04232-15120A1X20	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120
04232-15120A1X30	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120
04232-15120A1X40	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120
04232-15120A1X50	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120
04232-15120A2X20	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120
04232-15120A2X30	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120
04232-15120A2X40	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120
04232-15120A2X50	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120
04232-25120A3X25	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350
04232-25120A3X30	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350
04232-25120A3X40	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350
04232-25120A3X50	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350
04232-25120A4X25	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350
04232-25120A4X30	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350
04232-25120A4X40	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350
04232-25120A4X50	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350
