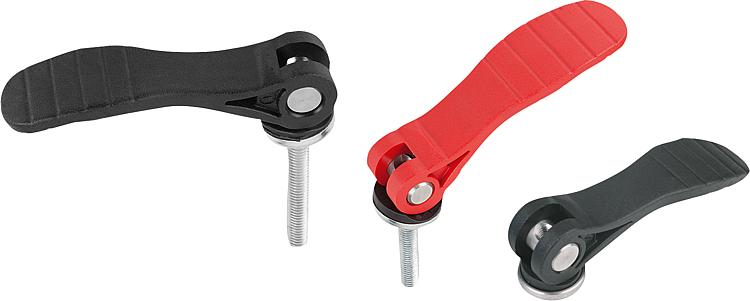

04232 inchCam levers, plastic with internal and external thread,... |
go back |
|
|
DescriptionMaterial:Grip and thrust washer plastic PA 66 fibreglass reinforced.
Hinge pins stainless steel 1.4305.
Studs and washer steel grade 5.8 or stainless steel 1.4305. Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue-passivated or bright stainless steel.Note:Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

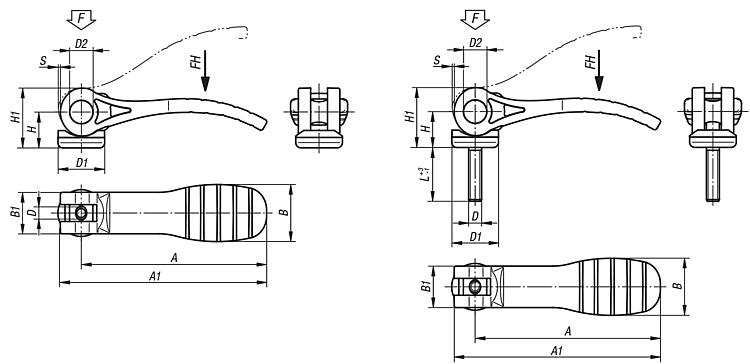

Drawings (total overview) |

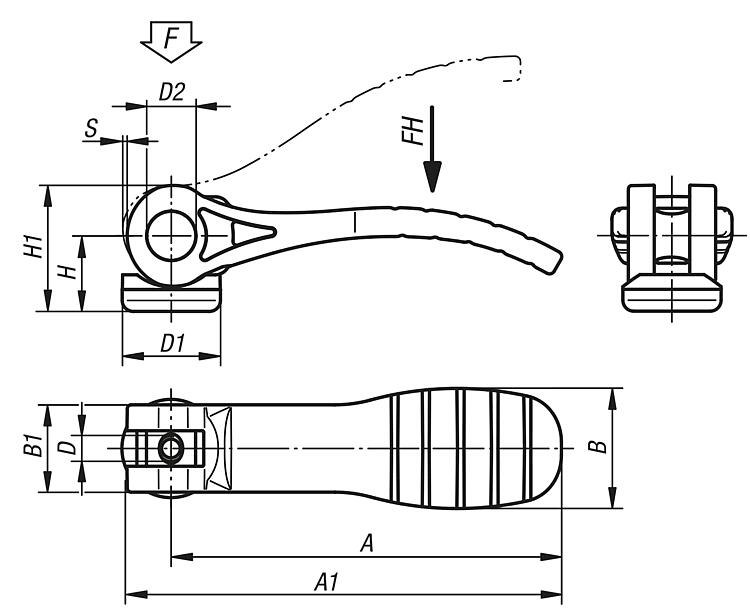

Cam levers, plastic, with internal thread, plastic-metal thrust washer - inch |
More information |
| Order No. | Component
material | Main
colour | D | D1 | D2 | B | B1 | H | H1 | A | A1 | Travel
S | Clamping
force
F (kN) | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| 04232-15211A1 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 1,15 | 2,5 | 125 |  | | 0.00 € | | | 04232-15211A2 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-25211A3 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-15311A1 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15311A2 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-25311A3 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-152184A1 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-152184A2 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-252184A3 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-153184A1 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-153184A2 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-253184A3 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 1,5 | 5 | 170 | | | 0.00 € | |
|

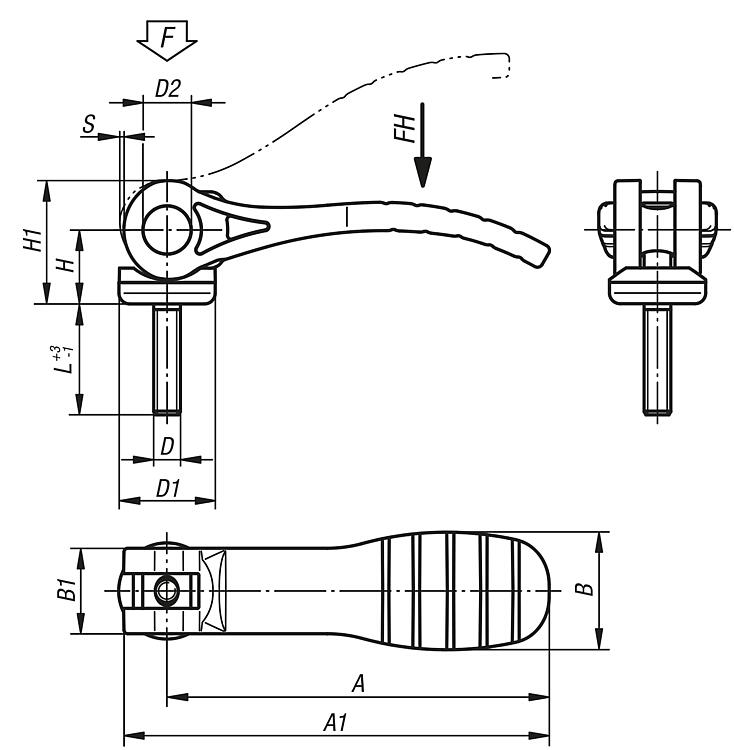

Cam levers, plastic, with external thread, plastic-metal thrust washer and steel or stainless steel stud - inch |
More information |
| Order No. | Component
material | Main
colour | D | D1 | D2 | B | B1 | H | H1 | A | A1 | L | Travel
S | Clamping
force
F (kN) | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| 04232-15211A1X20 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15211A1X30 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15211A1X40 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15211A1X50 | steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15211A2X20 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15211A2X30 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15211A2X40 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15211A2X50 | steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-25211A3X25 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25211A3X30 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25211A3X40 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25211A3X50 | steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25211A4X25 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25211A4X30 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25211A4X40 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25211A4X50 | steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-15311A1X20 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15311A1X30 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15311A1X40 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15311A1X50 | stainless steel | black | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15311A2X20 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15311A2X30 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15311A2X40 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-15311A2X50 | stainless steel | black | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-25311A3X25 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25311A3X30 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25311A3X40 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25311A3X50 | stainless steel | black | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25311A4X25 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25311A4X30 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25311A4X40 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-25311A4X50 | stainless steel | black | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-152184A1X20 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-152184A1X30 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-152184A1X40 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-152184A1X50 | steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-152184A2X20 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-152184A2X30 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-152184A2X40 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-152184A2X50 | steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-252184A3X25 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-252184A3X30 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-252184A3X40 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-252184A3X50 | steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-252184A4X25 | steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-252184A4X30 | steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-252184A4X40 | steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-252184A4X50 | steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-153184A1X20 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-153184A1X30 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-153184A1X40 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-153184A1X50 | stainless steel | red RAL 3020 | 10-32 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-153184A2X20 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 20 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-153184A2X30 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 30 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-153184A2X40 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 40 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-153184A2X50 | stainless steel | red RAL 3020 | 1/4-20 | 18,1 | 9 | 22 | 16 | 14 | 23,4 | 71,5 | 79,6 | 50 | 1,15 | 2,5 | 125 | | | 0.00 € | | | 04232-253184A3X25 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-253184A3X30 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-253184A3X40 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-253184A3X50 | stainless steel | red RAL 3020 | 5/16-18 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-253184A4X25 | stainless steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 25 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-253184A4X30 | stainless steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 30 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-253184A4X40 | stainless steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 40 | 1,5 | 5 | 170 | | | 0.00 € | | | 04232-253184A4X50 | stainless steel | red RAL 3020 | 3/8-16 | 27,1 | 11 | 33 | 24,2 | 16,2 | 27,7 | 100 | 110 | 50 | 1,5 | 5 | 170 | | | 0.00 € | |
|
