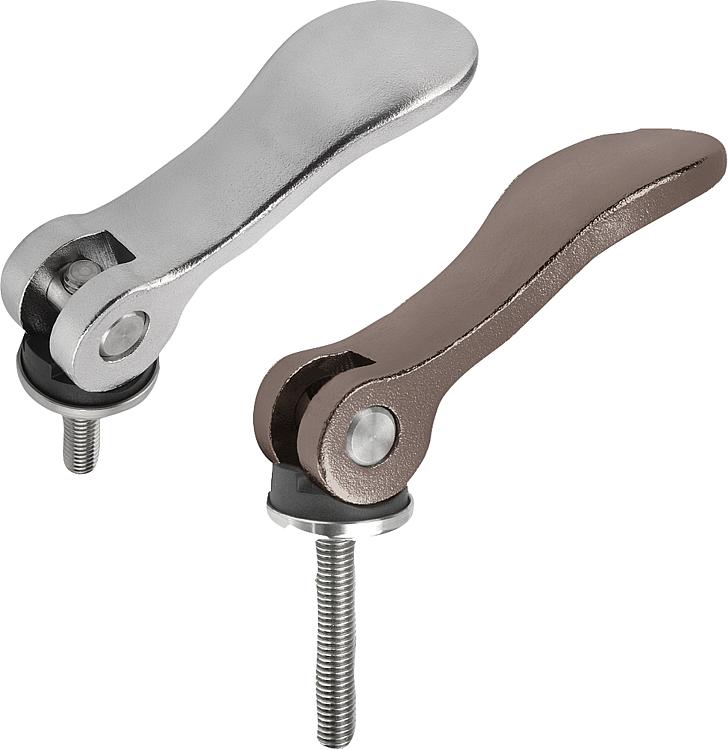

        Cam levers, stainless steel with internal and external thread, plastic-metal thrust washer and stainless steel stud - inch
        Cam levers, stainless steel, with external thread, plastic-metal thrust washer and stainless steel stud - inch

Item description/product images

DescriptionMaterial:

Handles 1.4308 stainless steel.
Thrust washer plastic PA 66 GF 35-X, fibreglass reinforced.
Hinge pin, washer and screw 1.4305 stainless steel.

Version:Handle electropolished or blasted.
Thrust washer black.
Hinge pin, washer and screw bright.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04232_AG inch Cam levers, stainless steel, with external thread, inch

232 kB

Drawings

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	L	Travel S	Clamping force F (kN)	Hand force FH N
04232-95120ADX10	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90
04232-95120ADX15	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90
04232-95120ADX30	electropolished	6-32	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90
04232-95120AEX10	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	10	1	1,5	90
04232-95120AEX15	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	15	1	1,5	90
04232-95120AEX30	electropolished	8-32	12	6	14,4	11,5	9	13	36,2	41,7	30	1	1,5	90
04232-05120AEX15	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	15	1	2,5	100
04232-05120AEX20	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100
04232-05120AEX30	electropolished	8-32	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100
04232-05120A0X20	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100
04232-05120A0X30	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100
04232-05120A0X40	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100
04232-05120A0X50	electropolished	10-24	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100
04232-05120A1X20	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	20	1	2,5	100
04232-05120A1X30	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	30	1	2,5	100
04232-05120A1X40	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	40	1	2,5	100
04232-05120A1X50	electropolished	10-32	15,4	8	18	13	11,2	17	52,3	59,1	50	1	2,5	100
04232-15120A1X20	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120
04232-15120A1X30	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120
04232-15120A1X40	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120
04232-15120A1X50	electropolished	10-32	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120
04232-15120A2X20	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	20	1,2	4	120
04232-15120A2X30	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	30	1,2	4	120
04232-15120A2X40	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	40	1,2	4	120
04232-15120A2X50	electropolished	1/4-20	18,1	9	21,5	15	14,5	22	70,4	79,2	50	1,2	4	120
04232-25120A3X25	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350
04232-25120A3X30	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350
04232-25120A3X40	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350
04232-25120A3X50	electropolished	5/16-18	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350
04232-25120A4X25	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	25	1,5	8	350
04232-25120A4X30	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	30	1,5	8	350
04232-25120A4X40	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	40	1,5	8	350
04232-25120A4X50	electropolished	3/8-16	27,1	11	33,3	24	18	28,5	96	108	50	1,5	8	350
