        Sheet steel swivel and fixed castors with vulcanised-on elastic solid rubber tyres, standard version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing steel plate.
Wheel body PA 6 with vulcanised elastic solid rubber tyre.Version:Housing press formed.
Double ball bearing with ball shield in castor head.
Roller bearings in the wheels.Note:Wheel axle bolted.
Wheels are shock and impact proof.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95018 Swivel and fixed castors standard version

429 kB

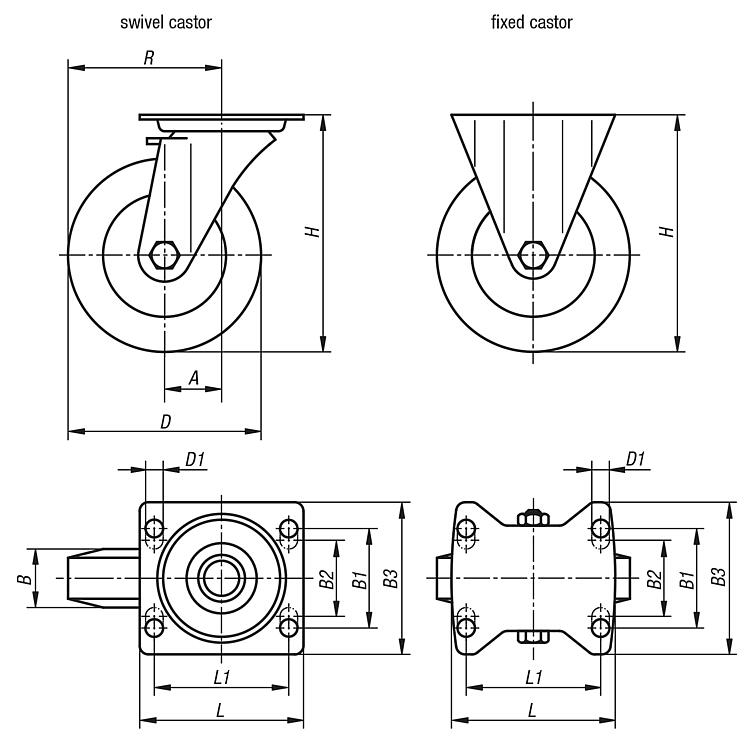

Drawings (total overview)

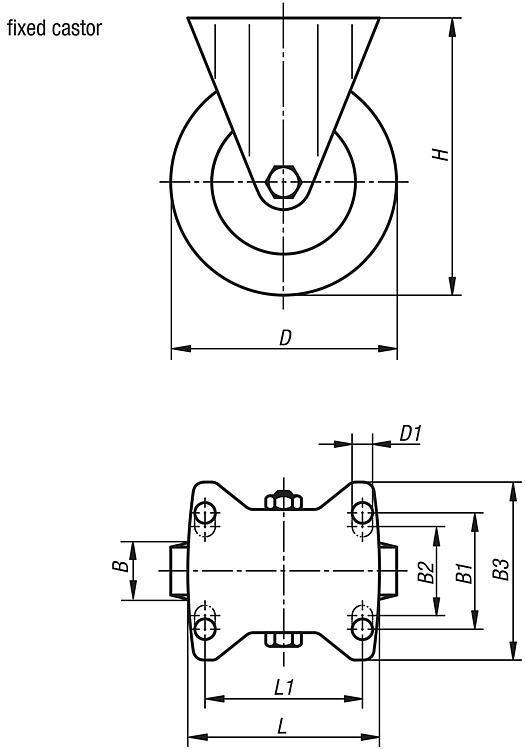

Steel plate fixed castors with vulcanised-on elastic solid rubber tyres, standard version

More information

Drawings

Steel plate fixed castors with vulcanised-on elastic solid rubber tyres, standard version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	Permissible load kg
95018-100371	Fixed castor	without locking system	roller bearing	32	-	60	85	100	9	125	100	80	170
95018-125371	Fixed castor	without locking system	roller bearing	37	-	60	85	125	9	150	100	80	200
95018-160501	Fixed castor	without locking system	roller bearing	50	75	80	110	160	11	195	140	105	350
95018-200501	Fixed castor	without locking system	roller bearing	50	75	80	110	200	11	235	140	105	400

Steel plate swivel castors with vulcanised-on elastic solid rubber tyres, standard version

More information

Drawings

Steel plate swivel castors with vulcanised-on elastic solid rubber tyres, standard version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg
95018-10037	Swivel castor	without locking system	roller bearing	36	32	-	60	85	100	9	125	100	80	86	170
95018-12537	Swivel castor	without locking system	roller bearing	40	37	-	60	85	125	9	150	100	80	102,5	200
95018-16050	Swivel castor	without locking system	roller bearing	60	50	75	80	110	160	11	195	140	105	140	350
95018-20050	Swivel castor	without locking system	roller bearing	65	50	75	80	110	200	11	235	140	105	165	400

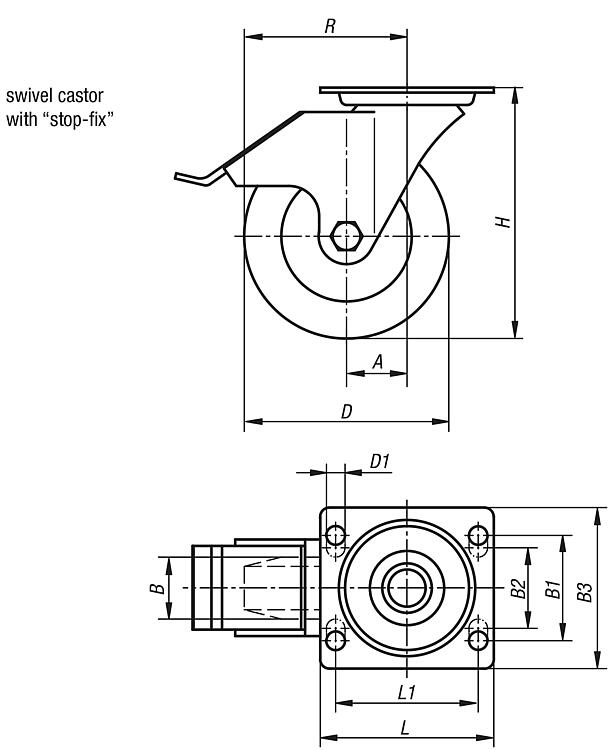

Steel plate swivel castors with stop-fix, vulcanised-on elastic solid rubber tyres, standard version

More information

Drawings

Steel plate swivel castors with stop-fix, vulcanised-on elastic solid rubber tyres, standard version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg
95018-100372	Swivel castor	with stop-fix locking system	roller bearing	36	32	-	60	85	100	9	125	100	80	86	170
95018-125372	Swivel castor	with stop-fix locking system	roller bearing	40	37	-	60	85	125	9	150	100	80	102,5	200
95018-160502	Swivel castor	with stop-fix locking system	roller bearing	60	50	75	80	110	160	11	195	140	105	140	350
95018-200502	Swivel castor	with stop-fix locking system	roller bearing	65	50	75	80	110	200	11	235	140	105	165	400
