        Appliance swivel and fixed castors with solid rubber tyres, standard version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing steel plate.
Wheel treads solid rubber.
Wheel rims polyamide.Version:Housing press formed.

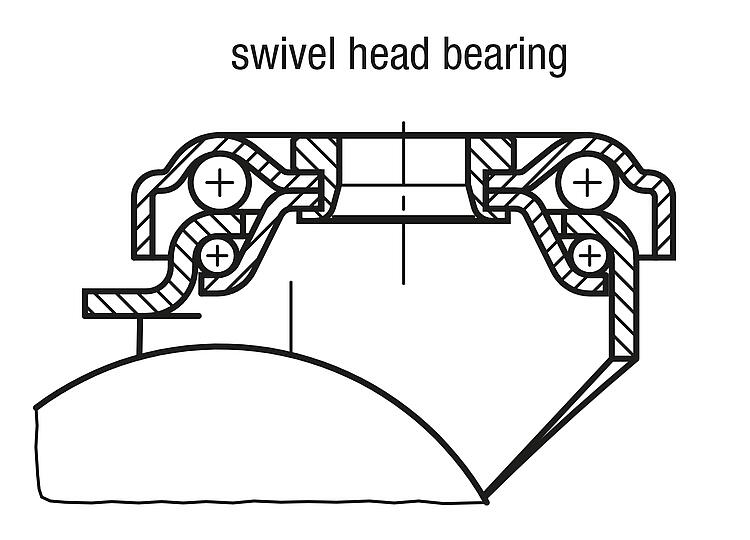

Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle bolted.
Swivel and fixed castors with bolt hole.
Wheels grey, non-marking.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95010 Swivel and fixed castorsappliance, standard version

705 kB

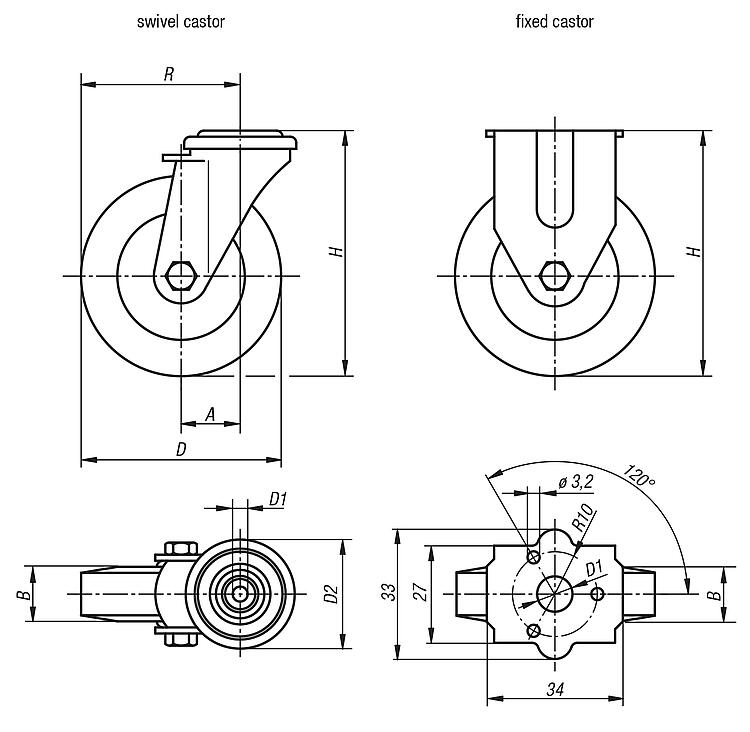

Drawings (total overview)

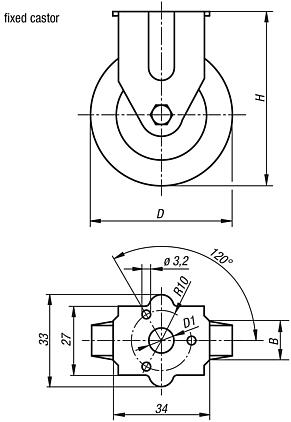

Appliance fixed castors with solid rubber tyres, standard version

More information

Drawings

Appliance fixed castors with solid rubber tyres, standard version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	B	D	D1	H	Permissible load kg	CAD	Acc.	Price	Order
95010-050181	Fixed castor	without locking system	plain bearing	18	50	11	69	40			0.00 €
95010-075251	Fixed castor	without locking system	plain bearing	25	75	11	98	60			0.00 €

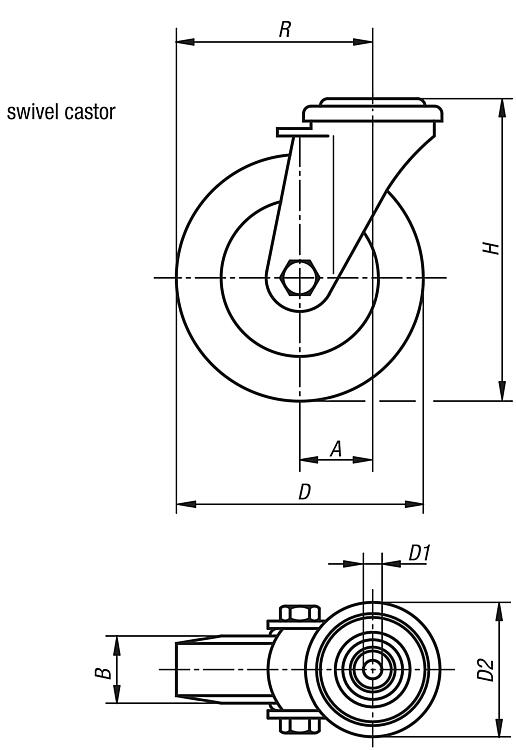

Appliance swivel castors with solid rubber tyres, standard version

More information

Drawings

Appliance swivel castors with solid rubber tyres, standard version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	D	D1	D2	H	R	Permissible load kg
95010-05018	Swivel castor	without locking system	plain bearing	25	18	50	11	43	69	50	40
95010-07525	Swivel castor	without locking system	plain bearing	28	25	75	11	43	98	65,5	60
95010-10025	Swivel castor	without locking system	plain bearing	33	25	100	11	43	121	83	70

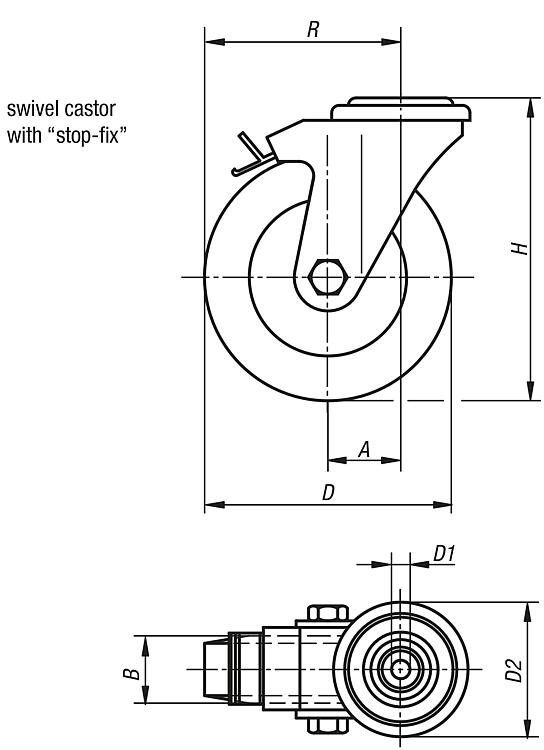

Appliance swivel castors with stop-fix, solid rubber tyres, standard version

More information

Drawings

Appliance swivel castors with stop-fix, solid rubber tyres, standard version

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	D	D1	D2	H	R	Permissible load kg
95010-050182	Swivel castor	with stop-fix locking system	plain bearing	25	18	50	11	43	69	50	40
95010-075252	Swivel castor	with stop-fix locking system	plain bearing	28	25	75	11	43	98	65,5	60
95010-100252	Swivel castor	with stop-fix locking system	plain bearing	33	25	100	11	43	121	83	70
