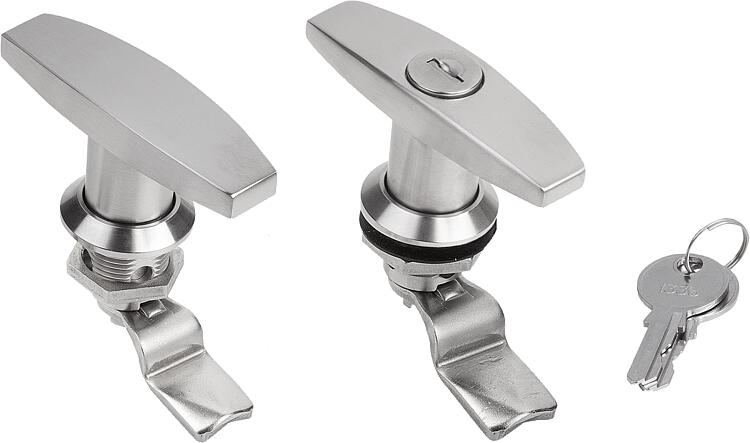

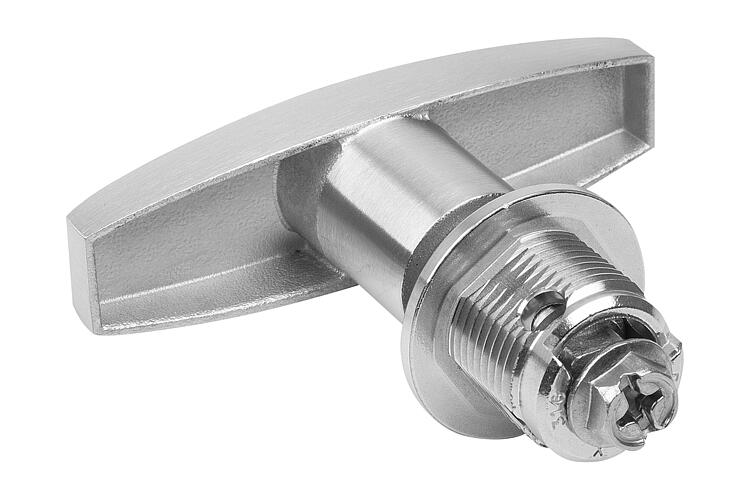

05593-01Quarter-turn locks with T-grip, stainless steel 1.4401,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4401. Version:Bright.
Grip polished.Note:Quarter-turn lock with T-grip. For right or left mounting with 90° closing. The quarter-turn lock can be installed pre-assembled. Supplied with standard stainless-steel nut. The lockable quarter-turn locks are each supplied with 2 keys. Rating IP65.
Please order required tongue version separately. Every tongue can be combined with this housing.
The locks have a single key system, i.e. they can all be opened using the same key (cylinder lock 1333).

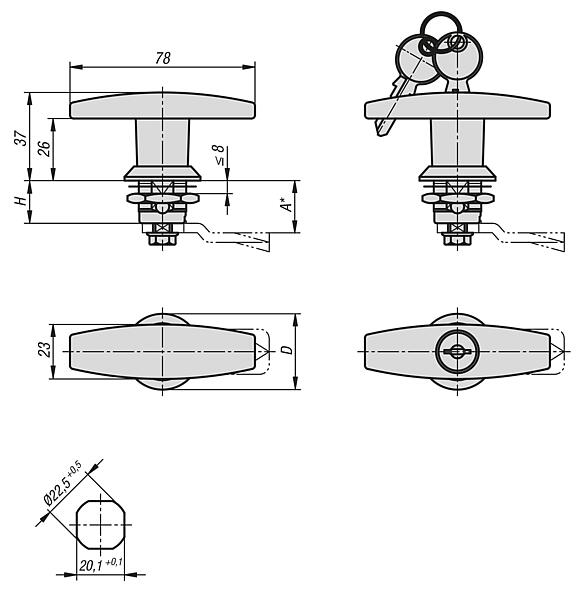

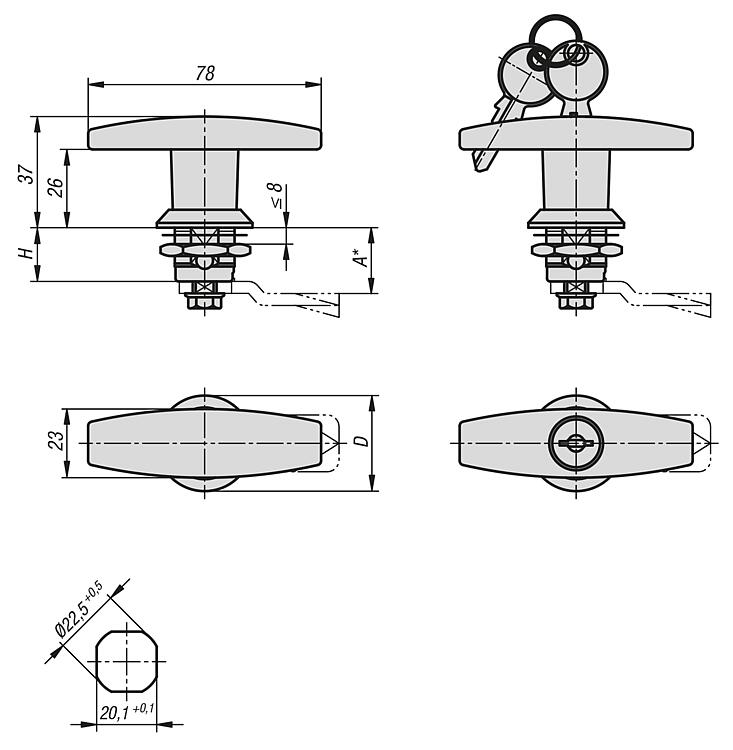

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.On request:Available for door thickness 20 and 40 mm.Accessory:Keys for latches and locks 05586.
Tongue for stainless steel quarter-turn lock 05566-07.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Actuation | D
| H | CAD | Acc. | Price | Order |
|---|
| 05593-01-1186 | T-Grip | 32 | 18 |  | | 0.00 € | | | 05593-01-2186 | lockable T-grip | 32 | 18 | | | 0.00 € | |
