06966-01

Recessed handles, plastic, clip-in

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Recessed handles, plastic, clip-in

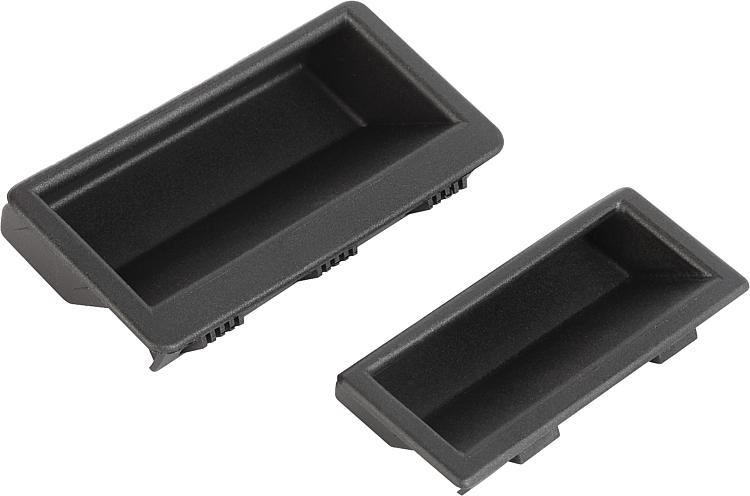

Item description/product images

DescriptionMaterial:Polyamide.Version:black.Note:Recessed grips for clipping into material with a thickness 0.75 to 3.5 mm.

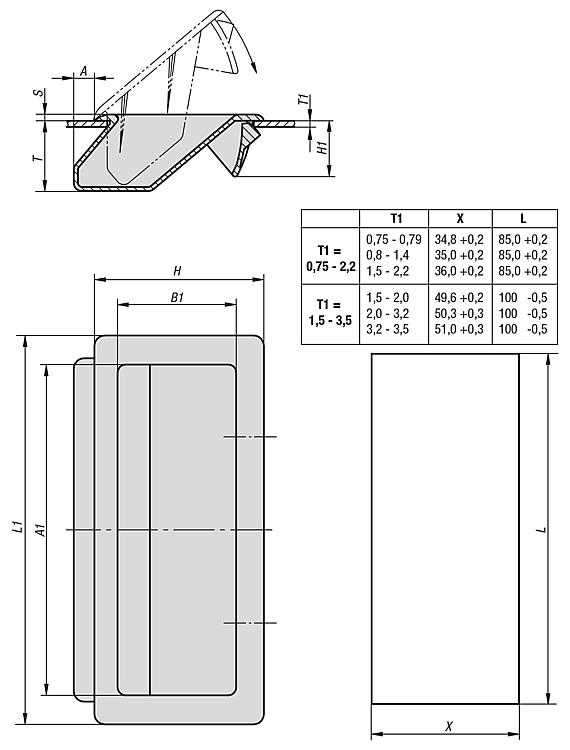

See drawing for installation cut-out dimensions for the various material thicknesses.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06966-01 Recessed handles, plastic, clip-in

150 kB

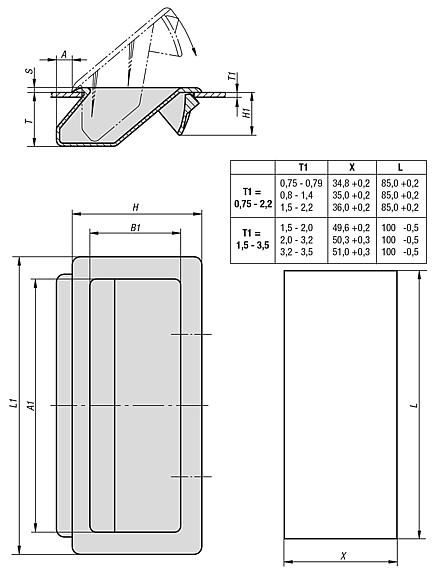

Drawings

Item selection/filter

Order No.	A	A1	B1	H	H1	L1	S	T	CAD	Acc.	Price	Order
06966-01-09441	5	80	28,7	41	13,5	94	1,5	17			2.94 €
06966-01-11057	10	94	40,3	57	18,65	110	2	26			5.59 €
