Connecting elements with tension relief

80855-05

Connecting elements with tension relief

Products
- Product overview
  - Electromechanical
    - Connectors Energy chains
      - Energy chains
        Connecting elements with tension relief

Item description/product images

Show/filter all items

DescriptionMaterial:Polyamide PA6.Version:black.Note:Connecting elements with tension relief for holding and securing energy chains or a corrugated pipes.

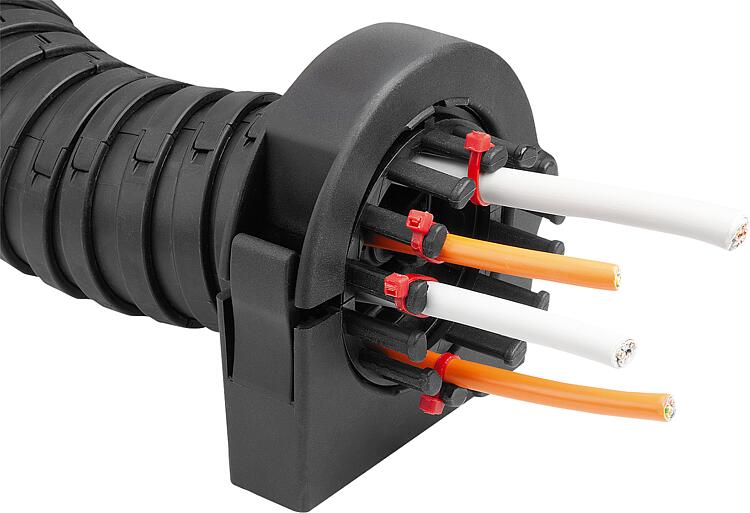

Connecting elements are used where energy chains/corrugated pipes need to be held in place to prevent twisting.

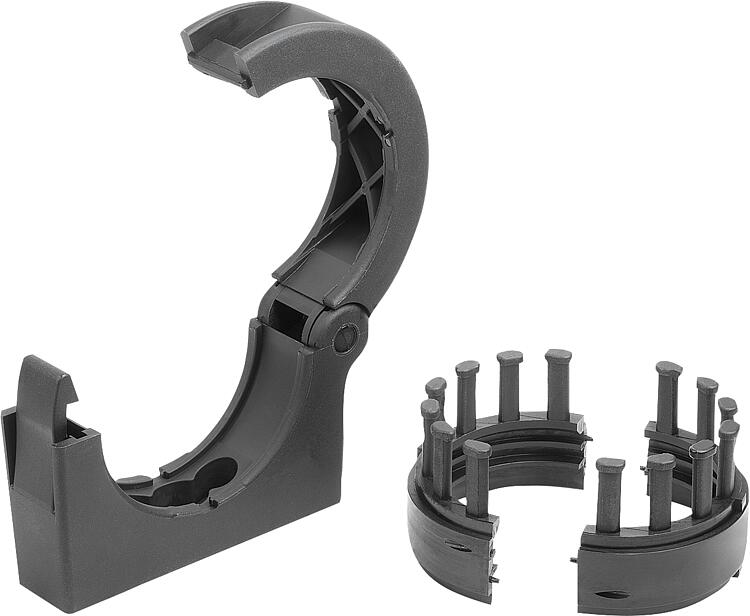

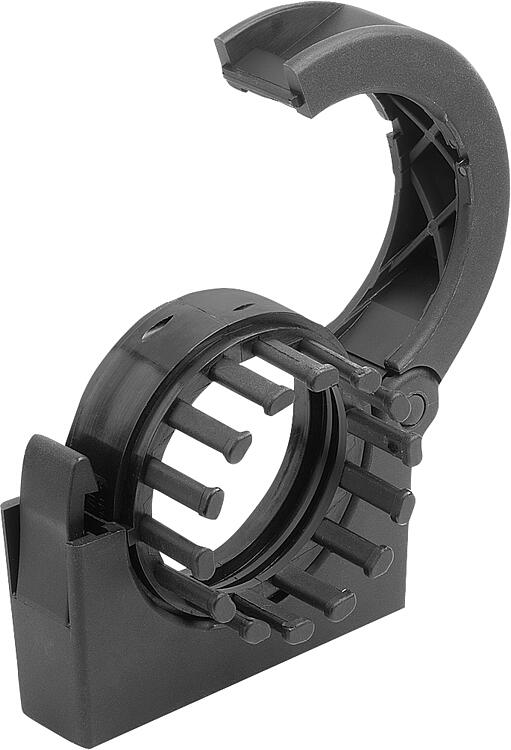

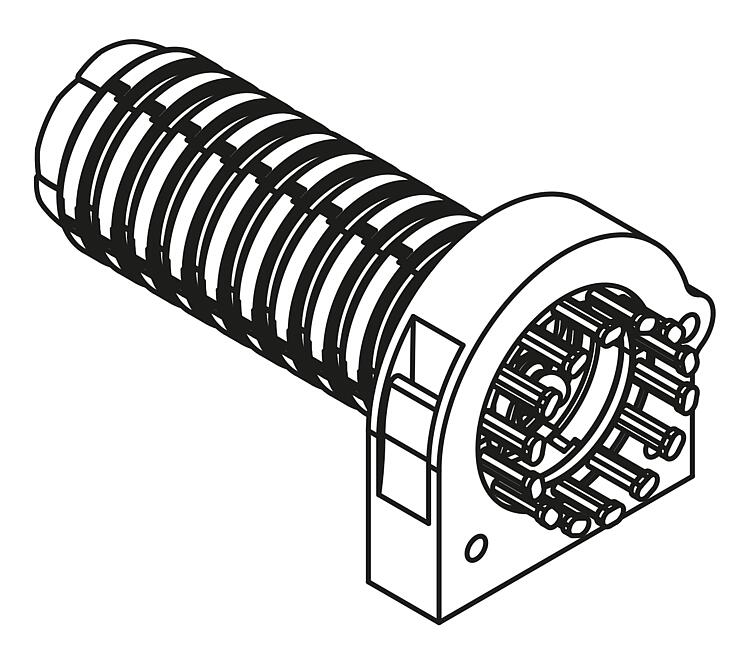

The connection elements are equipped with tension relief teeth. The lines can be secured to the teeth using cable ties.Temperature range:-45 °C to +105 °C (briefly up to +150 °C).Assembly:The connection elements can be opened and closed tool-free via a plastic latch. The inner jaws with tension relief teeth consist of two identical half-shells that are mounted on the energy chain via hole-pin connections. The jaws fitted around the energy chain are inserted into the connection element and enable the energy chain to be held securely by means of the internal profiling.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80855-05 Connecting elements with tension relief

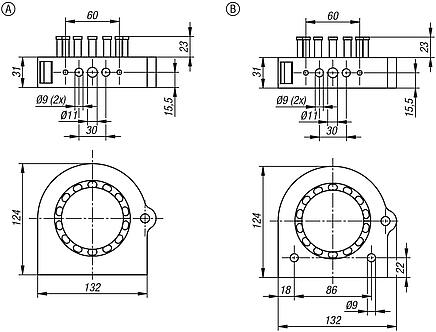

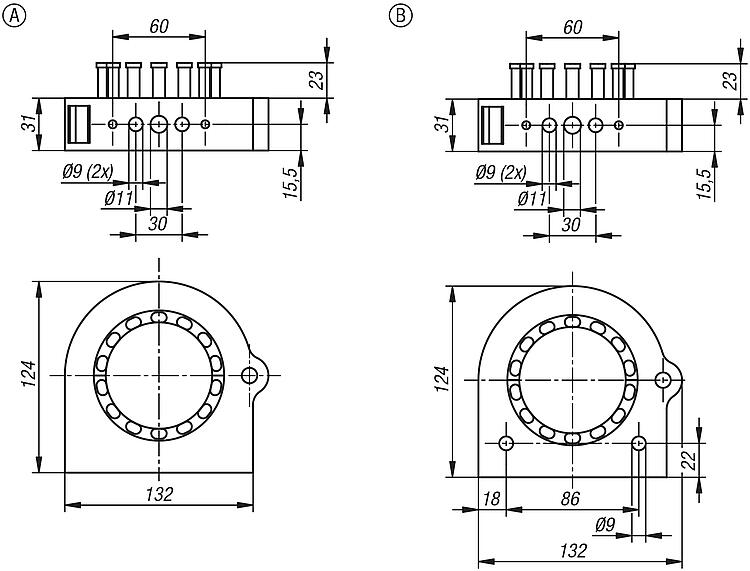

Drawings (total overview)

Connecting elements with tension relief

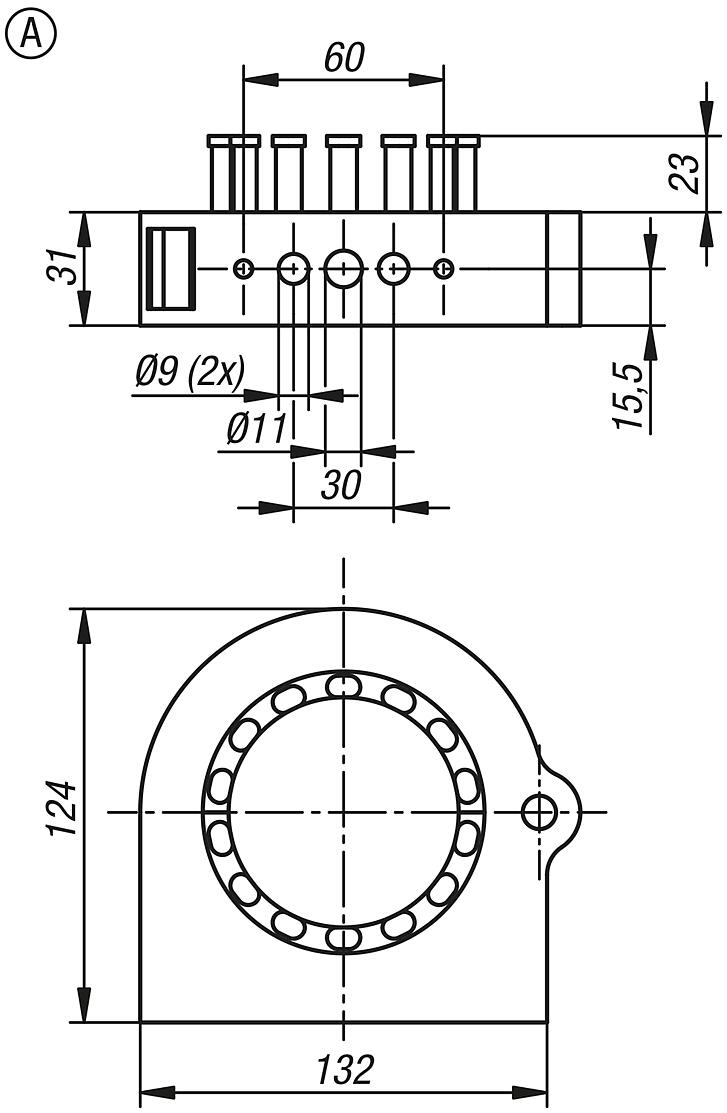

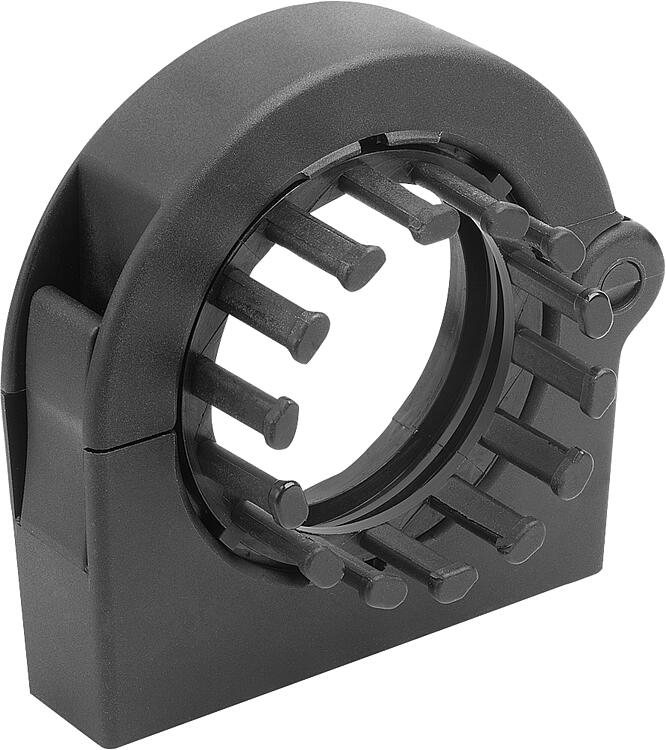

Connecting elements with tension relief, Form A

More information

Drawings

Connecting elements with tension relief, Form A

Item selection/filter

Order No.	Form	Form definition	Nominal size	CAD	Acc.	Price	Order
80855-05-07011	A	standard	70			102.94 €

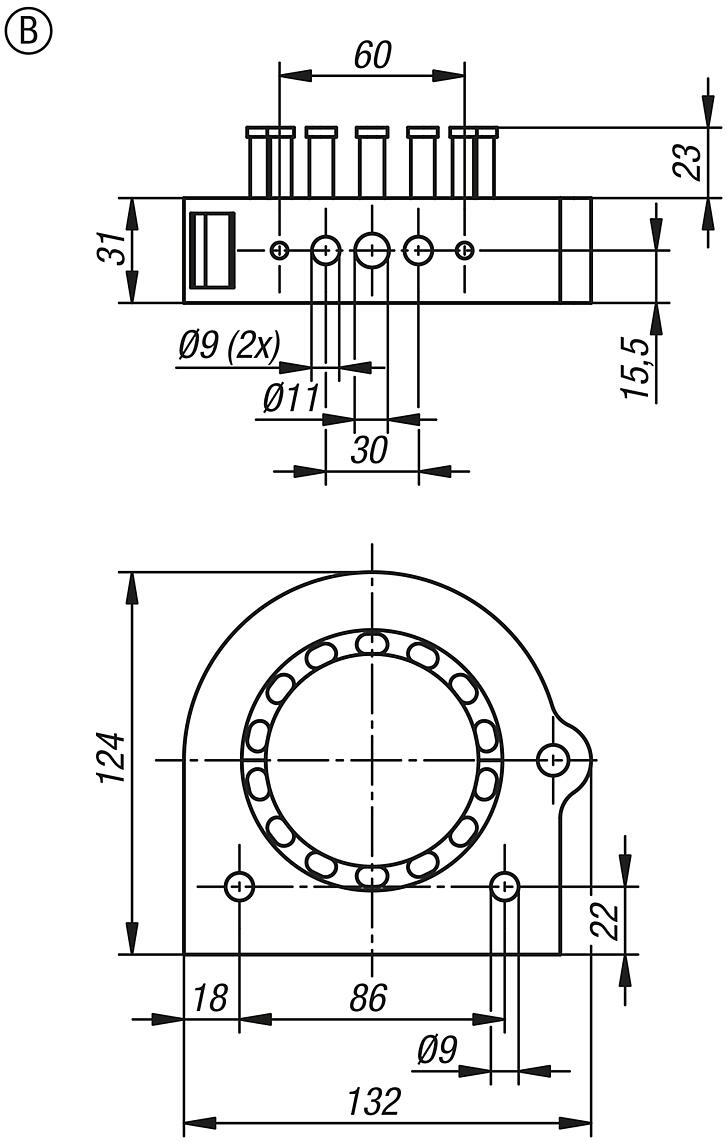

Connecting elements with tension relief, Form B

More information

Drawings

Connecting elements with tension relief, Form B

Item selection/filter

Order No.	Form	Form definition	Nominal size	CAD	Acc.	Price	Order
80855-05-07021	B	front fastening	70			106.77 €
