03090 inchIndexing plungers, steel or stainless steel with plastic... |
go back |
|
|
DescriptionMaterial:Steel version:
Grub screw and indexing pin steel.
Stainless steel version:
Indexing pin hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4034.
Indexing pin not hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom grip black grey thermoplastic. Version:Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.
Mushroom grip black grey RAL7021.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.
On request:Special versions.Accessory:Spacer rings 03089.

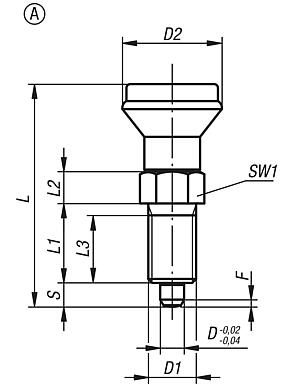

fastening sets for thin-walled parts 03094-10.Drawing reference:Form A: non-lockout type, without locknut
Form B: non-lockout type, with locknut
Form C: lockout type, without locknut
Form D: lockout type, with locknut DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Indexing plungers, steel or stainless steel with plastic mushroom grip and cap, no locking slot or locknut, inch |
More information |
| Order No. | Size | Main
material | locating pin | Form | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03090-1005A4 | 0 | steel | hardened | A | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 |  | | 9.06 € | | | 03090-1105AL | 1 | steel | hardened | A | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 8.61 € | | | 03090-1206A5 | 2 | steel | hardened | A | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | 9.55 € | | | 03090-1308A6 | 3 | steel | hardened | A | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | 11.74 € | | | 03090-1410A7 | 4 | steel | hardened | A | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | 12.51 € | | | 03090-01005A4 | 0 | stainless steel | hardened | A | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 14.77 € | | | 03090-01105AL | 1 | stainless steel | hardened | A | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 14.03 € | | | 03090-01206A5 | 2 | stainless steel | hardened | A | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | 16.58 € | | | 03090-01308A6 | 3 | stainless steel | hardened | A | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | 20.91 € | | | 03090-01410A7 | 4 | stainless steel | hardened | A | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | 22.55 € | | | 03090-11005A4 | 0 | stainless steel | not hardened | A | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 14.77 € | | | 03090-11105AL | 1 | stainless steel | not hardened | A | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 14.03 € | | | 03090-11206A5 | 2 | stainless steel | not hardened | A | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | 16.58 € | | | 03090-11308A6 | 3 | stainless steel | not hardened | A | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | 20.91 € | | | 03090-11410A7 | 4 | stainless steel | not hardened | A | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | 22.55 € | |
|
Indexing plungers, steel or stainless steel with plastic mushroom grip and cap, no locking slot, with locknut, inch |
More information |
| Order No. | Size | Main
material | locating pin | Form | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03090-2005A4 | 0 | steel | hardened | B | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 9.04 € | | | 03090-2105AL | 1 | steel | hardened | B | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 8.78 € | | | 03090-2206A5 | 2 | steel | hardened | B | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 9.74 € | | | 03090-2308A6 | 3 | steel | hardened | B | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 15/16 | 2,3 | 15 | 35 | | | 12.09 € | | | 03090-2410A7 | 4 | steel | hardened | B | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 1-1/8 | 2,8 | 15 | 34 | | | 12.90 € | | | 03090-02005A4 | 0 | stainless steel | hardened | B | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 15.73 € | | | 03090-02105AL | 1 | stainless steel | hardened | B | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 15.01 € | | | 03090-02206A5 | 2 | stainless steel | hardened | B | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 17.63 € | | | 03090-02308A6 | 3 | stainless steel | hardened | B | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 15/16 | 2,3 | 15 | 35 | | | 22.40 € | | | 03090-02410A7 | 4 | stainless steel | hardened | B | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 1-1/8 | 2,8 | 15 | 34 | | | 23.34 € | | | 03090-12005A4 | 0 | stainless steel | not hardened | B | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 15.73 € | | | 03090-12105AL | 1 | stainless steel | not hardened | B | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 15.01 € | | | 03090-12206A5 | 2 | stainless steel | not hardened | B | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 17.63 € | | | 03090-12308A6 | 3 | stainless steel | not hardened | B | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 15/16 | 2,3 | 15 | 35 | | | 22.40 € | | | 03090-12410A7 | 4 | stainless steel | not hardened | B | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 1-1/8 | 2,8 | 15 | 34 | | | 23.34 € | |
|
Indexing plungers, steel or stainless steel with plastic mushroom grip and cap, with locking slot, no locknut, inch |
More information |
| Order No. | Main
material | locating pin | Form | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03090-3005A4 | steel | hardened | C | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 11.41 € | | | 03090-3105AL | steel | hardened | C | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 10.86 € | | | 03090-3206A5 | steel | hardened | C | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | 12.08 € | | | 03090-3308A6 | steel | hardened | C | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | 13.71 € | | | 03090-3410A7 | steel | hardened | C | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | 14.02 € | | | 03090-03005A4 | stainless steel | hardened | C | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 16.58 € | | | 03090-03105AL | stainless steel | hardened | C | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 15.78 € | | | 03090-03206A5 | stainless steel | hardened | C | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | 18.68 € | | | 03090-03308A6 | stainless steel | hardened | C | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | 24.09 € | | | 03090-03410A7 | stainless steel | hardened | C | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | 26.86 € | | | 03090-13005A4 | stainless steel | not hardened | C | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 16.58 € | | | 03090-13105AL | stainless steel | not hardened | C | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 1,3 | 5 | 12 | | | 15.78 € | | | 03090-13206A5 | stainless steel | not hardened | C | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 1,8 | 6 | 14 | | | 18.68 € | | | 03090-13308A6 | stainless steel | not hardened | C | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 2,3 | 15 | 35 | | | 24.09 € | | | 03090-13410A7 | stainless steel | not hardened | C | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 2,8 | 15 | 34 | | | 26.86 € | |
|
Indexing plungers, steel or stainless steel with plastic mushroom grip and cap, with locking slot and locknut, inch |
More information |
| Order No. | Size | Main
material | locating pin | Form | D | D1 | D2 | L | L1 | L2 | L3 | Travel
S | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03090-4005A4 | 0 | steel | hardened | D | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 11.13 € | | | 03090-4105AL | 1 | steel | hardened | D | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 10.95 € | | | 03090-4206A5 | 2 | steel | hardened | D | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 12.30 € | | | 03090-4308A6 | 3 | steel | hardened | D | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 15/16 | 2,3 | 15 | 35 | | | 14.11 € | | | 03090-4410A7 | 4 | steel | hardened | D | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 1-1/8 | 2,8 | 15 | 34 | | | 14.29 € | | | 03090-04005A4 | 0 | stainless steel | hardened | D | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 17.55 € | | | 03090-04105AL | 1 | stainless steel | hardened | D | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 16.72 € | | | 03090-04206A5 | 2 | stainless steel | hardened | D | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 19.69 € | | | 03090-04308A6 | 3 | stainless steel | hardened | D | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 15/16 | 2,3 | 15 | 35 | | | 25.53 € | | | 03090-04410A7 | 4 | stainless steel | hardened | D | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 1-1/8 | 2,8 | 15 | 34 | | | 27.36 € | | | 03090-14005A4 | 0 | stainless steel | not hardened | D | 5 | 3/8-16 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 17.55 € | | | 03090-14105AL | 1 | stainless steel | not hardened | D | 5 | 3/8-24 | 21 | 47 | 17 | 7 | 15 | 5 | 13 | 9/16 | 1,3 | 5 | 12 | | | 16.72 € | | | 03090-14206A5 | 2 | stainless steel | not hardened | D | 6 | 1/2-13 | 25 | 56 | 20 | 8 | 17 | 6 | 14 | 3/4 | 1,8 | 6 | 14 | | | 19.69 € | | | 03090-14308A6 | 3 | stainless steel | not hardened | D | 8 | 5/8-11 | 33 | 74 | 26 | 10 | 23 | 8 | 19 | 15/16 | 2,3 | 15 | 35 | | | 25.53 € | | | 03090-14410A7 | 4 | stainless steel | not hardened | D | 10 | 3/4-10 | 33 | 80 | 28 | 12 | 25 | 10 | 22 | 1-1/8 | 2,8 | 15 | 34 | | | 27.36 € | |
|
