        Indexing plungers, steel or stainless steel with plastic mushroom grip - inch

Item description/product images

Show/filter all items

DescriptionMaterial:

Steel version:
Grub screw and indexing pin steel.

Stainless steel version:
Indexing pin hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4034.

Indexing pin not hardened:
Threaded sleeve 1.4305.
Indexing pin 1.4305.

Mushroom grip thermoplastic, black-grey or traffic red RAL 3020.

Version:Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Stainless steel version:
Threaded sleeve bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.

Mushroom grip black grey RAL7021.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.On request:Special versions.Accessory:Spacer rings 03089.

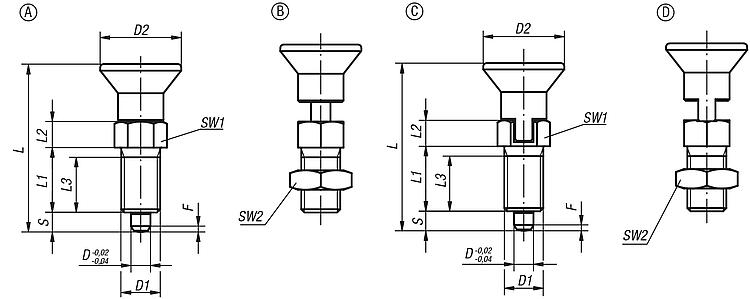

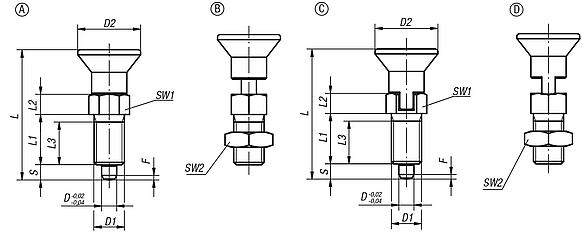

fastening sets for thin-walled parts 03094-10.Drawing reference:

Form A: non-lockout type, without locknut
Form B: non-lockout type, with locknut

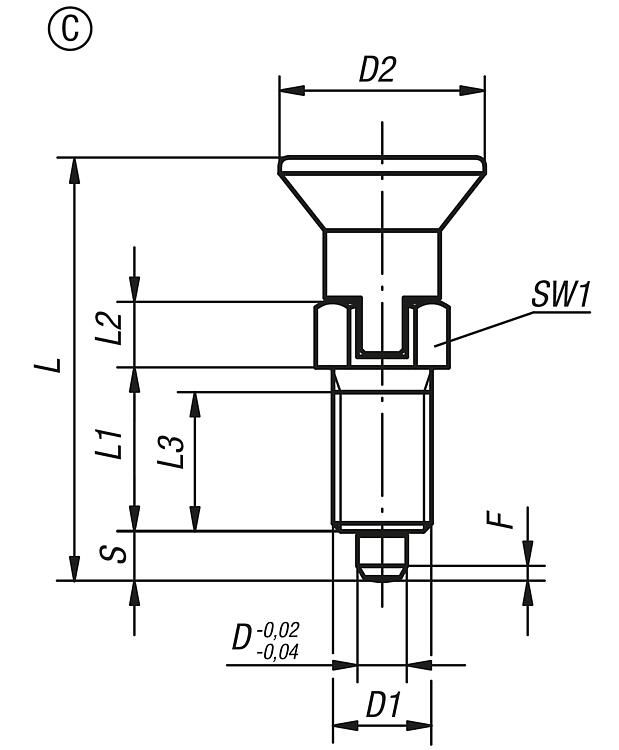

Form C: lockout type, without locknut

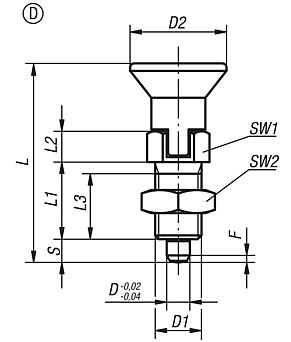

Form D: lockout type, with locknut

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03089 inch Indexing plungers, inch

Drawings (total overview)

Indexing plungers, steel or stainless steel with plastic mushroom grip - inch

Indexing plungers, steel or stainless steel with plastic mushroom grip - inch

More information

Drawings

Indexing plungers, steel or stainless steel with plastic mushroom grip - inch

Item selection/filter

Order No.	Form	Main material	Steel code	Surface finish body	Component colour	D	D1	D2	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03089-1903AJ	A	steel	-	hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			8.70 €
03089-1004AK	A	steel	-	hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			7.83 €
03089-1105AL	A	steel	-	hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			8.29 €
03089-1206A5	A	steel	-	hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			9.20 €
03089-1308A6	A	steel	-	hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			11.85 €
03089-1410A7	A	steel	-	hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			11.99 €
03089-1412AO	A	steel	-	hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			16.97 €
03089-1516A8	A	steel	-	hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	3,2	20	46			23.55 €
03089-1903AJ84	A	steel	-	hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			8.70 €
03089-1004AK84	A	steel	-	hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			7.83 €
03089-1105AL84	A	steel	-	hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			8.29 €
03089-1206A584	A	steel	-	hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			9.20 €
03089-1308A684	A	steel	-	hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			11.85 €
03089-1410A784	A	steel	-	hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			11.99 €
03089-1412AO84	A	steel	-	hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			16.97 €
03089-1516A884	A	steel	-	hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	3,2	20	46			23.55 €
03089-01903AJ	A	stainless steel	1.4034	hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			14.13 €
03089-01004AK	A	stainless steel	1.4034	hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			12.04 €
03089-01105AL	A	stainless steel	1.4034	hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			13.51 €
03089-01206A5	A	stainless steel	1.4034	hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			15.93 €
03089-01308A6	A	stainless steel	1.4034	hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			21.11 €
03089-01410A7	A	stainless steel	1.4034	hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			21.65 €
03089-01412AO	A	stainless steel	1.4034	hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			31.74 €
03089-01516A8	A	stainless steel	1.4034	hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	3,2	20	46			45.12 €
03089-01903AJ84	A	stainless steel	1.4034	hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			14.13 €
03089-01004AK84	A	stainless steel	1.4034	hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			12.04 €
03089-01105AL84	A	stainless steel	1.4034	hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			13.51 €
03089-01206A584	A	stainless steel	1.4034	hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			15.93 €
03089-01308A684	A	stainless steel	1.4034	hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			21.11 €
03089-01410A784	A	stainless steel	1.4034	hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			21.65 €
03089-01412AO84	A	stainless steel	1.4034	hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			31.74 €
03089-01516A884	A	stainless steel	1.4034	hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	3,2	20	46			45.12 €
03089-11903AJ	A	stainless steel	1.4305	not hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			14.13 €
03089-11004AK	A	stainless steel	1.4305	not hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			12.04 €
03089-11105AL	A	stainless steel	1.4305	not hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			13.51 €
03089-11206A5	A	stainless steel	1.4305	not hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			15.93 €
03089-11308A6	A	stainless steel	1.4305	not hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			21.11 €
03089-11410A7	A	stainless steel	1.4305	not hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			21.65 €
03089-11412AO	A	stainless steel	1.4305	not hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			31.74 €
03089-11516A8	A	stainless steel	1.4305	not hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	3,2	20	46			45.12 €
03089-11903AJ84	A	stainless steel	1.4305	not hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			14.13 €
03089-11004AK84	A	stainless steel	1.4305	not hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			12.04 €
03089-11105AL84	A	stainless steel	1.4305	not hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			13.51 €
03089-11206A584	A	stainless steel	1.4305	not hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			15.93 €
03089-11308A684	A	stainless steel	1.4305	not hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			21.11 €
03089-11410A784	A	stainless steel	1.4305	not hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			21.65 €
03089-11412AO84	A	stainless steel	1.4305	not hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			31.74 €
03089-11516A884	A	stainless steel	1.4305	not hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	3,2	20	46			45.12 €

Indexing plungers, steel or stainless steel with plastic mushroom grip and locknut - inch

More information

Drawings

Indexing plungers, steel or stainless steel with plastic mushroom grip and locknut - inch

Item selection/filter

Order No.	Form	Main material	Steel code	Surface finish body	Component colour	D	D1	D2	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03089-2903AJ	B	steel	-	hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			8.86 €
03089-2004AK	B	steel	-	hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			7.96 €
03089-2105AL	B	steel	-	hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			8.43 €
03089-2206A5	B	steel	-	hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			9.36 €
03089-2308A6	B	steel	-	hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			12.20 €
03089-2410A7	B	steel	-	hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			12.51 €
03089-2412AO	B	steel	-	hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			17.20 €
03089-2516A8	B	steel	-	hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			23.88 €
03089-2903AJ84	B	steel	-	hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			8.86 €
03089-2004AK84	B	steel	-	hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			7.96 €
03089-2105AL84	B	steel	-	hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			8.43 €
03089-2206A584	B	steel	-	hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			9.36 €
03089-2308A684	B	steel	-	hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			12.20 €
03089-2410A784	B	steel	-	hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			12.51 €
03089-2412AO84	B	steel	-	hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			17.20 €
03089-2516A884	B	steel	-	hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			23.88 €
03089-02903AJ	B	stainless steel	1.4034	hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			15.10 €
03089-02004AK	B	stainless steel	1.4034	hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			12.85 €
03089-02105AL	B	stainless steel	1.4034	hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			14.41 €
03089-02206A5	B	stainless steel	1.4034	hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			16.94 €
03089-02308A6	B	stainless steel	1.4034	hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			21.49 €
03089-02410A7	B	stainless steel	1.4034	hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			22.41 €
03089-02412AO	B	stainless steel	1.4034	hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			32.85 €
03089-02516A8	B	stainless steel	1.4034	hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			46.69 €
03089-02903AJ84	B	stainless steel	1.4034	hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			15.10 €
03089-02004AK84	B	stainless steel	1.4034	hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			12.85 €
03089-02105AL84	B	stainless steel	1.4034	hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			14.41 €
03089-02206A584	B	stainless steel	1.4034	hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			16.94 €
03089-02308A684	B	stainless steel	1.4034	hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			21.49 €
03089-02410A784	B	stainless steel	1.4034	hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			22.41 €
03089-02412AO84	B	stainless steel	1.4034	hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			32.85 €
03089-02516A884	B	stainless steel	1.4034	hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			46.69 €
03089-12903AJ	B	stainless steel	1.4305	not hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			15.10 €
03089-12004AK	B	stainless steel	1.4305	not hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			12.85 €
03089-12105AL	B	stainless steel	1.4305	not hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			14.41 €
03089-12206A5	B	stainless steel	1.4305	not hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			16.94 €
03089-12308A6	B	stainless steel	1.4305	not hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			21.49 €
03089-12410A7	B	stainless steel	1.4305	not hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			22.41 €
03089-12412AO	B	stainless steel	1.4305	not hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			32.85 €
03089-12516A8	B	stainless steel	1.4305	not hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			46.69 €
03089-12903AJ84	B	stainless steel	1.4305	not hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			15.10 €
03089-12004AK84	B	stainless steel	1.4305	not hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			12.85 €
03089-12105AL84	B	stainless steel	1.4305	not hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			14.41 €
03089-12206A584	B	stainless steel	1.4305	not hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			16.94 €
03089-12308A684	B	stainless steel	1.4305	not hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			21.49 €
03089-12410A784	B	stainless steel	1.4305	not hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			22.41 €
03089-12412AO84	B	stainless steel	1.4305	not hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			32.85 €
03089-12516A884	B	stainless steel	1.4305	not hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			46.69 €

Indexing plungers, steel or stainless steel with plastic mushroom grip and locking slot - inch

More information

Drawings

Indexing plungers, steel or stainless steel with plastic mushroom grip and locking slot - inch

Item selection/filter

Order No.	Form	Main material	Steel code	Surface finish body	Component colour	D	D1	D2	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03089-3903AJ	C	steel	-	hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			10.92 €
03089-3004AK	C	steel	-	hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			9.85 €
03089-3105AL	C	steel	-	hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			10.40 €
03089-3206A5	C	steel	-	hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			11.56 €
03089-3308A6	C	steel	-	hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			13.82 €
03089-3410A7	C	steel	-	hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			15.71 €
03089-3412AO	C	steel	-	hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			22.20 €
03089-3516A8	C	steel	-	hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	3,2	20	46			30.83 €
03089-3903AJ84	C	steel	-	hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			10.92 €
03089-3004AK84	C	steel	-	hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			9.85 €
03089-3105AL84	C	steel	-	hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			10.40 €
03089-3206A584	C	steel	-	hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			11.56 €
03089-3308A684	C	steel	-	hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			13.82 €
03089-3410A784	C	steel	-	hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			15.71 €
03089-3412AO84	C	steel	-	hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			22.20 €
03089-3516A884	C	steel	-	hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	3,2	20	46			30.83 €
03089-03903AJ	C	stainless steel	1.4034	hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			15.85 €
03089-03004AK	C	stainless steel	1.4034	hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			14.32 €
03089-03105AL	C	stainless steel	1.4034	hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			15.16 €
03089-03206A5	C	stainless steel	1.4034	hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			17.90 €
03089-03308A6	C	stainless steel	1.4034	hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			24.32 €
03089-03410A7	C	stainless steel	1.4034	hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			28.12 €
03089-03412AO	C	stainless steel	1.4034	hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			41.25 €
03089-03516A8	C	stainless steel	1.4034	hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	3,2	20	46			58.61 €
03089-03903AJ84	C	stainless steel	1.4034	hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			15.85 €
03089-03004AK84	C	stainless steel	1.4034	hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			14.32 €
03089-03105AL84	C	stainless steel	1.4034	hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			15.16 €
03089-03206A584	C	stainless steel	1.4034	hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			17.90 €
03089-03308A684	C	stainless steel	1.4034	hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			24.32 €
03089-03410A784	C	stainless steel	1.4034	hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			28.12 €
03089-03412AO84	C	stainless steel	1.4034	hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			41.25 €
03089-03516A884	C	stainless steel	1.4034	hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	3,2	20	46			58.61 €
03089-13903AJ	C	stainless steel	1.4305	not hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			15.85 €
03089-13004AK	C	stainless steel	1.4305	not hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			14.32 €
03089-13105AL	C	stainless steel	1.4305	not hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			15.16 €
03089-13206A5	C	stainless steel	1.4305	not hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			17.90 €
03089-13308A6	C	stainless steel	1.4305	not hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			24.32 €
03089-13410A7	C	stainless steel	1.4305	not hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			28.12 €
03089-13412AO	C	stainless steel	1.4305	not hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			41.25 €
03089-13516A8	C	stainless steel	1.4305	not hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	3,2	20	46			58.61 €
03089-13903AJ84	C	stainless steel	1.4305	not hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	0,8	4,5	10			15.85 €
03089-13004AK84	C	stainless steel	1.4305	not hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1	6	12			14.32 €
03089-13105AL84	C	stainless steel	1.4305	not hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	1,3	5	12			15.16 €
03089-13206A584	C	stainless steel	1.4305	not hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	1,8	6	14			17.90 €
03089-13308A684	C	stainless steel	1.4305	not hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	2,3	15	35			24.32 €
03089-13410A784	C	stainless steel	1.4305	not hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	2,8	15	40			28.12 €
03089-13412AO84	C	stainless steel	1.4305	not hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	2,8	15	39			41.25 €
03089-13516A884	C	stainless steel	1.4305	not hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	3,2	20	46			58.61 €

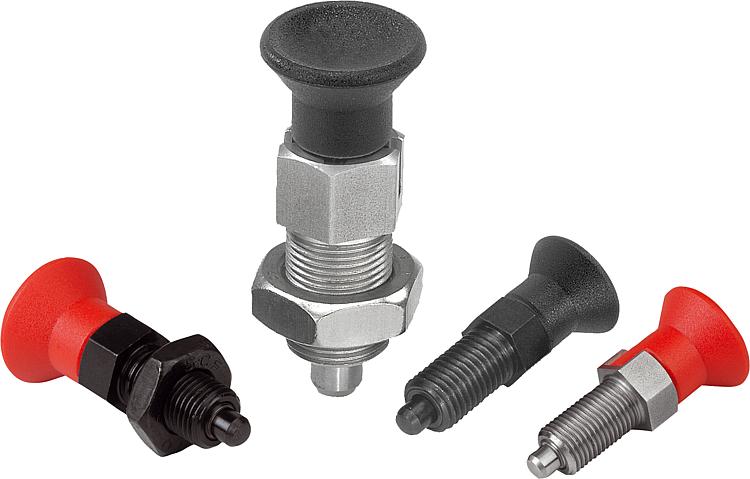

Indexing plungers, steel or stainless steel with plastic mushroom grip, locking slot and locknut - inch

More information

Drawings

Indexing plungers, steel or stainless steel with plastic mushroom grip, locking slot and locknut - inch

Item selection/filter

Order No.	Form	Main material	Steel code	Surface finish body	Component colour	D	D1	D2	L	L1	L2	L3	Travel S	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03089-4903AJ	D	steel	-	hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			11.03 €
03089-4004AK	D	steel	-	hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			9.96 €
03089-4105AL	D	steel	-	hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			10.56 €
03089-4206A5	D	steel	-	hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			11.73 €
03089-4308A6	D	steel	-	hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			14.13 €
03089-4410A7	D	steel	-	hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			16.01 €
03089-4412AO	D	steel	-	hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			22.65 €
03089-4516A8	D	steel	-	hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			31.45 €
03089-4903AJ84	D	steel	-	hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			11.03 €
03089-4004AK84	D	steel	-	hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			9.96 €
03089-4105AL84	D	steel	-	hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			10.56 €
03089-4206A584	D	steel	-	hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			11.73 €
03089-4308A684	D	steel	-	hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			14.13 €
03089-4410A784	D	steel	-	hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			16.01 €
03089-4412AO84	D	steel	-	hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			22.65 €
03089-4516A884	D	steel	-	hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			31.45 €
03089-04903AJ	D	stainless steel	1.4034	hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			16.80 €
03089-04004AK	D	stainless steel	1.4034	hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			14.83 €
03089-04105AL	D	stainless steel	1.4034	hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			16.04 €
03089-04206A5	D	stainless steel	1.4034	hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			18.90 €
03089-04308A6	D	stainless steel	1.4034	hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			25.78 €
03089-04410A7	D	stainless steel	1.4034	hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			28.65 €
03089-04412AO	D	stainless steel	1.4034	hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			42.01 €
03089-04516A8	D	stainless steel	1.4034	hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			59.69 €
03089-04903AJ84	D	stainless steel	1.4034	hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			16.80 €
03089-04004AK84	D	stainless steel	1.4034	hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			14.83 €
03089-04105AL84	D	stainless steel	1.4034	hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			16.04 €
03089-04206A584	D	stainless steel	1.4034	hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			18.90 €
03089-04308A684	D	stainless steel	1.4034	hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			25.78 €
03089-04410A784	D	stainless steel	1.4034	hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			28.65 €
03089-04412AO84	D	stainless steel	1.4034	hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			42.01 €
03089-04516A884	D	stainless steel	1.4034	hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			59.69 €
03089-14903AJ	D	stainless steel	1.4305	not hardened	black grey RAL 7021	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			16.80 €
03089-14004AK	D	stainless steel	1.4305	not hardened	black grey RAL 7021	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			14.83 €
03089-14105AL	D	stainless steel	1.4305	not hardened	black grey RAL 7021	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			16.04 €
03089-14206A5	D	stainless steel	1.4305	not hardened	black grey RAL 7021	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			18.90 €
03089-14308A6	D	stainless steel	1.4305	not hardened	black grey RAL 7021	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			25.78 €
03089-14410A7	D	stainless steel	1.4305	not hardened	black grey RAL 7021	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			28.65 €
03089-14412AO	D	stainless steel	1.4305	not hardened	black grey RAL 7021	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			42.01 €
03089-14516A8	D	stainless steel	1.4305	not hardened	black grey RAL 7021	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			59.69 €
03089-14903AJ84	D	stainless steel	1.4305	not hardened	traffic red RAL 3020	3	1/4-28	14	31,5	12	5	10	3,5	8	7/16	0,8	4,5	10			16.80 €
03089-14004AK84	D	stainless steel	1.4305	not hardened	traffic red RAL 3020	4	5/16-24	18	38,5	15	6	13	4	10	1/2	1	6	12			14.83 €
03089-14105AL84	D	stainless steel	1.4305	not hardened	traffic red RAL 3020	5	3/8-24	21	43,5	17	7	15	5	13	9/16	1,3	5	12			16.04 €
03089-14206A584	D	stainless steel	1.4305	not hardened	traffic red RAL 3020	6	1/2-13	25	51,7	20	8	16	6	14	3/4	1,8	6	14			18.90 €
03089-14308A684	D	stainless steel	1.4305	not hardened	traffic red RAL 3020	8	5/8-11	33	68	26	10	21	8	19	15/16	2,3	15	35			25.78 €
03089-14410A784	D	stainless steel	1.4305	not hardened	traffic red RAL 3020	10	3/4-10	33	74	28	12	23	10	22	1-1/8	2,8	15	40			28.65 €
03089-14412AO84	D	stainless steel	1.4305	not hardened	traffic red RAL 3020	12	3/4-16	33	78	28	14	25	12	22	1-1/8	2,8	15	39			42.01 €
03089-14516A884	D	stainless steel	1.4305	not hardened	traffic red RAL 3020	16	1-8	40	96	32	18	28	16	27	1-1/2	3,2	20	46			59.69 €

Other items in this category

<< | < | 1-10 | 11-16 | > | >>

Indexing plungers stainless steel - inch

03089 inch

Indexing plungers stainless steel - inch

Indexing plungers, steel or stainless steel with plastic mushroom grip and extended indexing pin, inch

03089 inch

Indexing plungers, steel or stainless steel with plastic mushroom grip and extended indexing pin, inch

Indexing plungers short version, inch

03089 inch

Indexing plungers short version, inch

Indexing plungers, steel or stainless steel with plastic mushroom grip and cap, inch

03090 inch

Indexing plungers, steel or stainless steel with plastic mushroom grip and cap, inch

Indexing plungers steel, with cam lever

03090 inch

Indexing plungers steel, with cam lever

Indexing plungers, inch

03091 inch

Indexing plungers, inch

Indexing plungers, steel or stainless steel with threaded pin, inch

03092 inch

Indexing plungers, steel or stainless steel with threaded pin, inch

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip - inch

03093 inch

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip - inch

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and extended indexing pin, inch

03093 inch

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and extended indexing pin, inch

Indexing plungers, stainless steel, without collar, with stainless steel mushroom grip, inch

03093 inch

Indexing plungers, stainless steel, without collar, with stainless steel mushroom grip, inch

<< | < | 1-10 | 11-16 | > | >>

Shopping cart

Number of items:

0

Amount:

0.00 €

Quick order / Check availabilityOrder article directly or check availability.display

Netherlands

Copyright © 2025 norelem. All rights reserved.

Tel. +49 71 45/206-44 to 45 · Fax +49 71 45/206-83
