        Riser stops

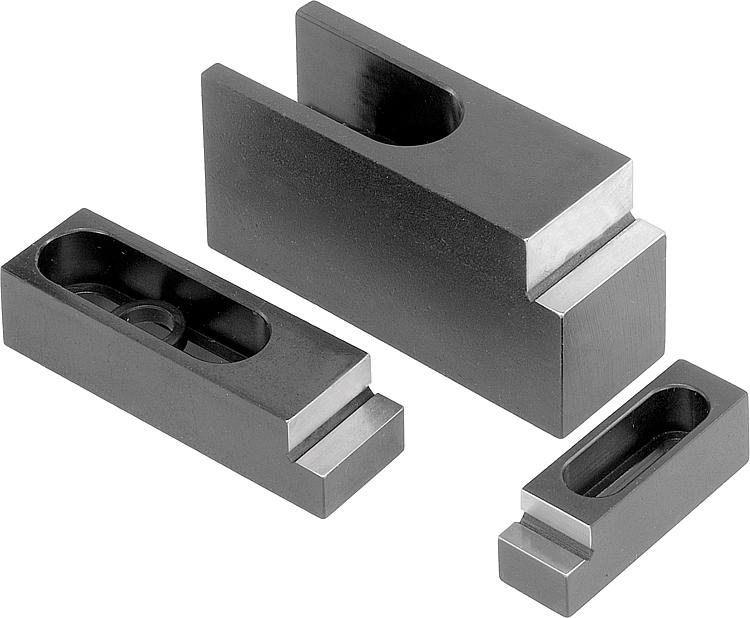

Item description/product images

DescriptionMaterial:Steel.Version:Tempered, black oxidised.
Riser faces ground.Note:Also called multi-fixture clamps and stops.
Cost-effective custom made clamping fixtures can be produced using the adjustable riser cam clamps together with the matching riser stops.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04445 Riser stops

188 kB

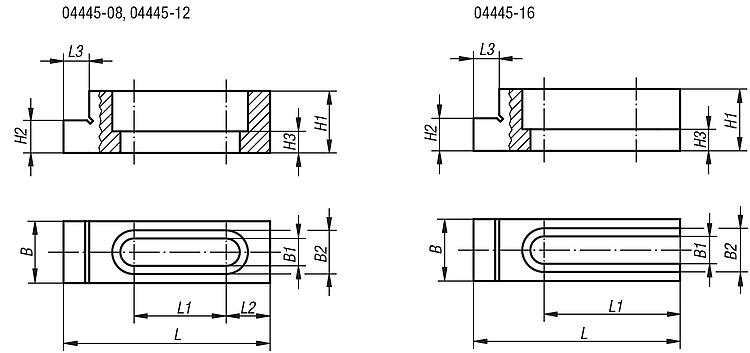

Drawings

Item selection/filter

Order No.	for screws	L	L1	L2	L3	B	B1	B2	H1	H2	H3	Long hole	Price
04445-08	M8	63,5	28,3	13,5	7,9	19	8,4	13,4	19	11,684 -0,013	6,6	closed	82.48 €
04445-12	M12	95,2	42,7	12,7	7,9	28,5	13,4	19,8	22	12,192 -0,013	6,9	closed	95.62 €
04445-16	M16	107	46,2	-	9,5	38	17	24,8	50,7	35,001 -0,013	21,3	open	277.81 €
