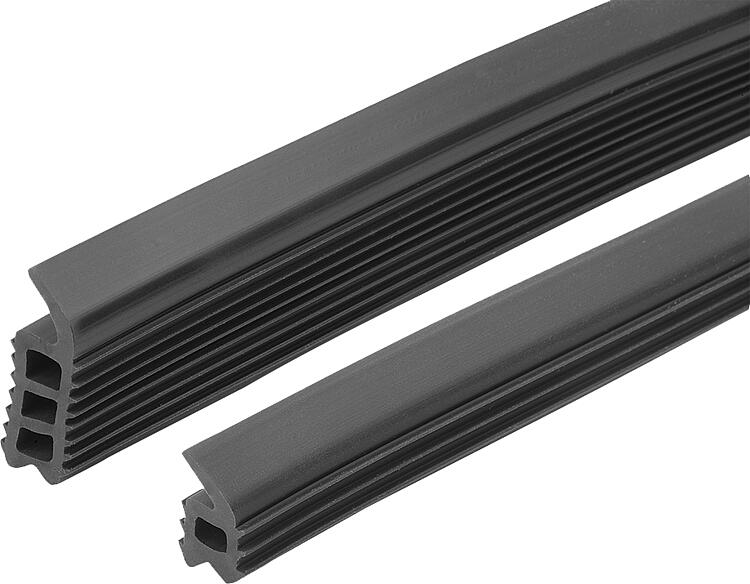

DescriptionProduct description:Conventional PVC sealing profiles for insertion into sealing ducts, slots or U-profiles.
The lip profiles reliably seal and protect the components from external influences.Material:PVC.Version:black.Note:Shore 57A ± 5.

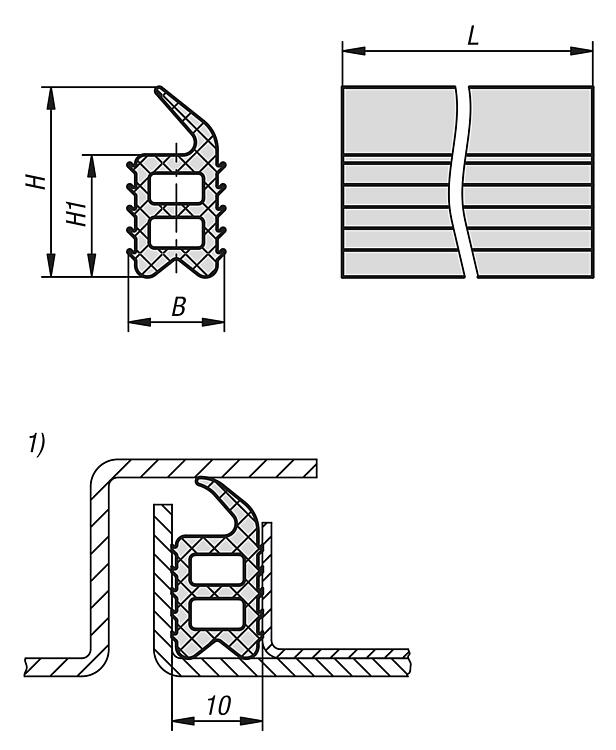

Observe tolerances acc. to DIN 16941.Application:- Switchbox construction - Machine and plant construction - Automotive industry - Construction and window fabricationAssembly:Quick, simple and smooth installation. When pressed in by hand, the lip profile jams into a gap or channel between two faces.On request:Other lengths.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No. | B | H | H1 | L | Clamping range mm | CAD | Acc. | Price | Order |
---|
96523-02-0170X2000 | 11 | 17 | 9,5 | 2000 | 10 |  | | 10.60 € | | 96523-02-0170X5000 | 11 | 17 | 9,5 | 5000 | 10 |  | | 23.74 € | | 96523-02-0170X10000 | 11 | 17 | 9,5 | 10000 | 10 |  | | 45.62 € | | 96523-02-0170X20000 | 11 | 17 | 9,5 | 20000 | 10 |  | | 89.39 € | | 96523-02-0195X2000 | 11 | 19,5 | 11,5 | 2000 | 10 |  | | 11.05 € | | 96523-02-0195X5000 | 11 | 19,5 | 11,5 | 5000 | 10 |  | | 24.87 € | | 96523-02-0195X10000 | 11 | 19,5 | 11,5 | 10000 | 10 |  | | 47.90 € | | 96523-02-0195X20000 | 11 | 19,5 | 11,5 | 20000 | 10 |  | | 93.94 € | | 96523-02-0215X2000 | 11 | 21,5 | 13,5 | 2000 | 10 |  | | 9.79 € | | 96523-02-0215X5000 | 11 | 21,5 | 13,5 | 5000 | 10 |  | | 21.71 € | | 96523-02-0215X10000 | 11 | 21,5 | 13,5 | 10000 | 10 |  | | 41.57 € | | 96523-02-0215X20000 | 11 | 21,5 | 13,5 | 20000 | 10 |  | | 81.29 € | | 96523-02-0275X2000 | 11 | 27,5 | 19,5 | 2000 | 10 |  | | 15.66 € | | 96523-02-0275X5000 | 11 | 27,5 | 19,5 | 5000 | 10 |  | | 36.39 € | | 96523-02-0275X10000 | 11 | 27,5 | 19,5 | 10000 | 10 |  | | 70.92 € | | 96523-02-0275X20000 | 11 | 27,5 | 19,5 | 20000 | 10 |  | | 139.99 € | |
