DescriptionMaterial:Carbon steel and ductile iron.Version:Tempered and black oxidised.
Wedge faces fine machined.
Note:Fine adjustment by knurled screw or Allen key. Therefore vertical movement without lateral displacement. Especially suitable for marking or machining heavy parts. Ball handle 02210-01 is added to each height wedge.

H min is reached by removing the baseplate.

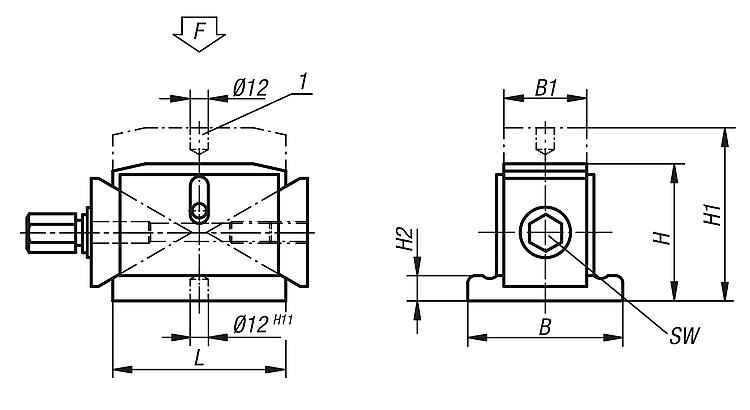

Drawing reference:
1) centring hole for 02210
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 02320 Wedge supports 296 kB

Drawings

Wedge supports

Item selection/filter

Order No.Clamp rangeBB1HH1H2LSWtravel per
spindle
rotation
F
kN
CADAcc.PriceOrder
02320-5050 - 6863405068763130,8640  382.95 €
02320-100100 - 1251156010012520125241,16100  822.25 €
