82100-21Power supply unit 24V DC, 36W, 1.5A, input 100-240V AC with M12... |
go back |
|
Item description/product images |
|
|

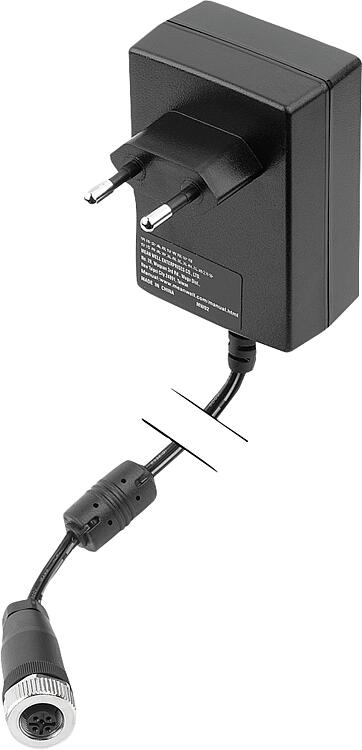

DescriptionNote:Compact AC/DC industrial quality desktop power supply unit with 100 to 240 volt AC input and 24 volt DC output. Extremely robust, long service life even in harsh environments.
Input: Euro plug.

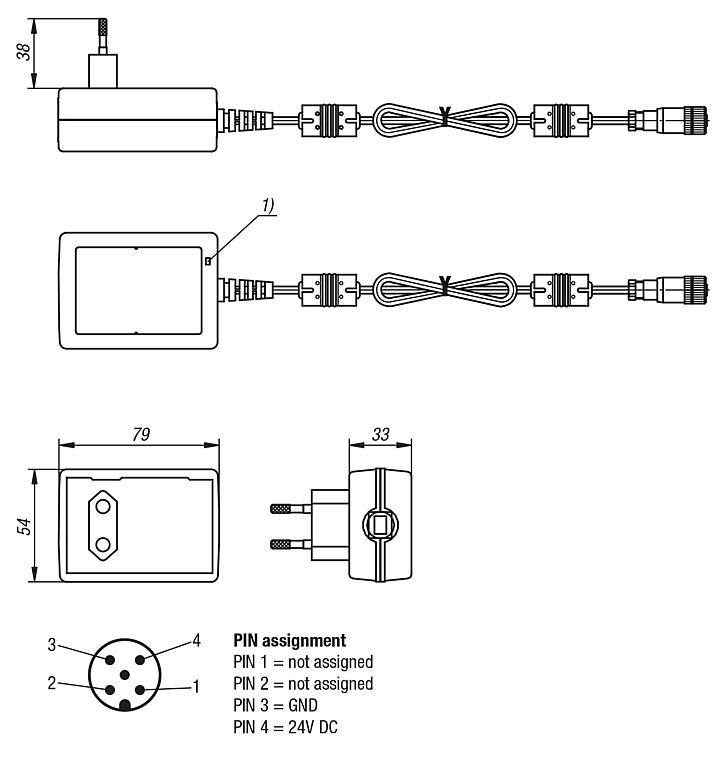

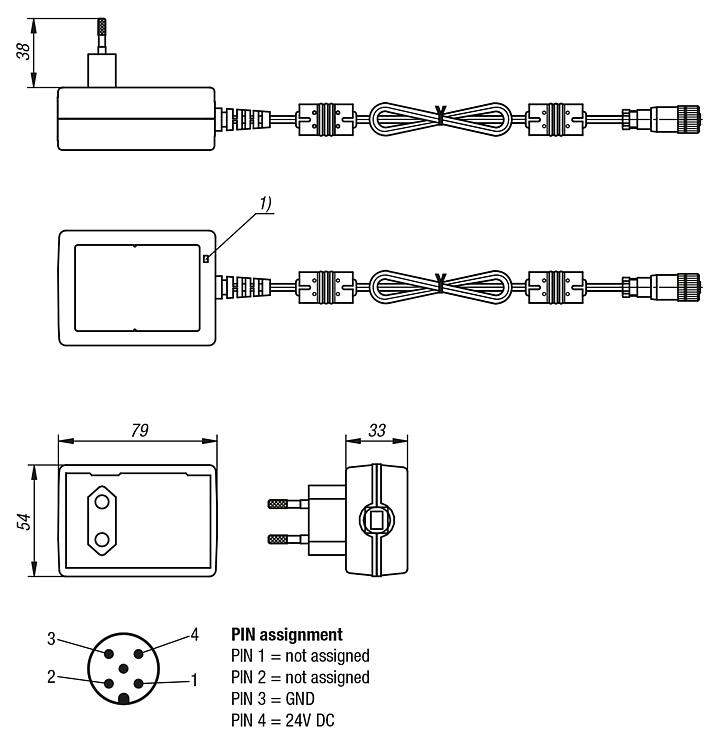

Output: Permanently attached 1 metre long cable with M12x1 A-coded connector (4-pin socket) with screw lock.
Certificates / Standards met:
CE, UKCA, UL/cUL, TÜV EN + EN CB IEC 62368-1, FCC.Temperature range:0 °C to +40 °C.Advantages:Protected against short circuit, overload and voltage surge.
LED in operation signal lamp.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Input voltage
VAC
| Input frequency
Hz | Max.
input current
(115V AC) | Max.
input current
(230V AC) | Nominal output voltage
V DC
| CAD | Acc. | Price | Order |
|---|
| 82100-21-24153612 | 100 - 240 | 50-60 | 1000 mA ±1% | 500mA ±1% | 24 |  | | 42.69 € | |
Order No.
| Output performance
W
| Output current
A | Efficiency ratio
by full load
% | Air humidity
in use
(%) | Safety rating | CAD | Acc. | Price | Order |
|---|
| 82100-21-24153612 | 36 | 1,5 | 88,5 | 20-90 non-condensing | IP20 | | | 42.69 € | |
