82100-20Power supply unit 24V DC, 60W, 2.5A, input 90-264V AC with M12... |
go back |
|
Item description/product images |
|
|

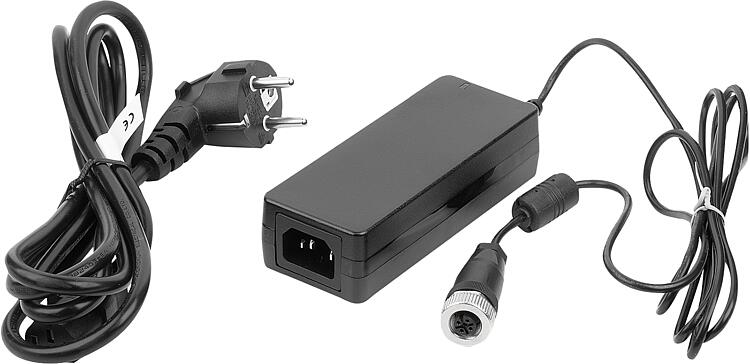

DescriptionNote:Compact AC/DC industrial quality desktop power supply unit with 90 to 264 volt AC input and 24 volt DC output. Extremely robust, long service life even in harsh environments.
Input: Connection cable 1.8 metres long with IEC socket C13 and angled SCHUKO plug.

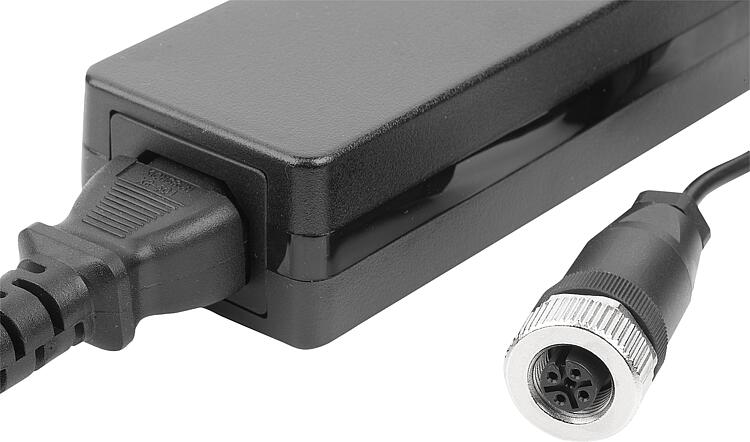

Output: Permanently attached 1,8 metre long cable with M12x1 A-coded connector (4-pin socket) with screw lock.
Certificates / Standards met:
CE, UKCA, EU, EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS.Temperature range:-30 °C to +70 °C.Advantages:Protected against short circuit, overload, voltage surge and excess temperature.
Completely enclosed housing.
LED in operation signal lamp.
Power consumption in open-circuit mode < 0.075 W.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Input voltage
VAC
| Input frequency
Hz | Max.
input current
(115V AC) | Max.
input current
(230V AC) | Nominal output voltage
V DC
| CAD | Acc. | Price | Order |
|---|
| 82100-20-24256012 | 90 - 264 | 47 - 63 | 1400 mA ± 1% | 1000 mA ±1% | 24 |  | | 47.36 € | |
Order No.
| Output performance
W
| Output current
A | Surge protection
V DC | Overheating protection
(°C) | Efficiency ratio
by full load
% | Air humidity
in use
(%) | CAD | Acc. | Price | Order |
|---|
| 82100-20-24256012 | 60 | 2,5 | 25,2-32,4 | 75±5 | 90,5 | 20-90 non-condensing | | | 47.36 € | |
