06192_L
Star grips similar to DIN 6336, aluminium, Form L, with external...
go back
Products
Product overview
Flexible standard component system
Operating parts
Grips, handles and knobs
Star grips aluminium, similar to DIN 6336

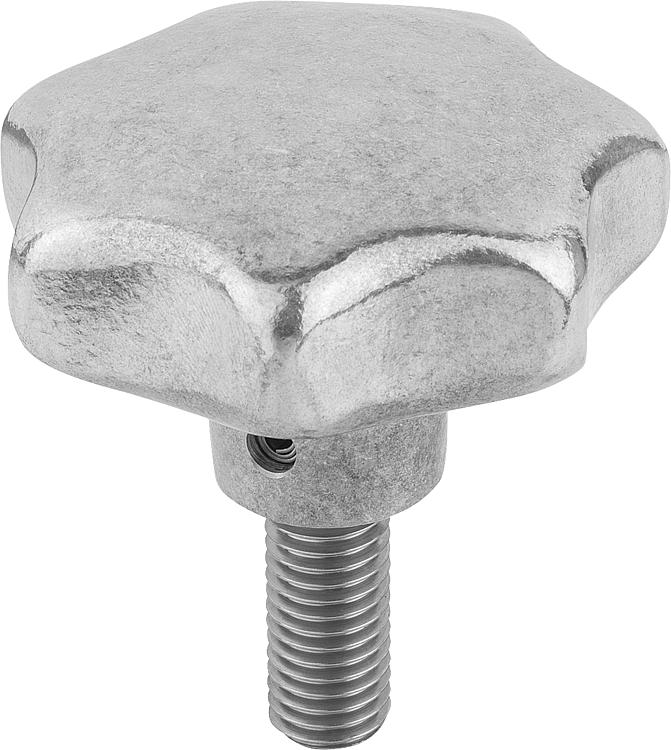

Star grips similar to DIN 6336, aluminium, Form L, with external thread
Item description/product images
Description
Material:
Aluminium.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.
Version:
Star grip vibratory ground.
Grub screw and pin bright.
Special features:
Download
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06192_L Star grips similar to DIN 6336, aluminium, Form L, with external thread
215 kB
Drawings
Item selection/filter
Order No.
Form
Surface finish
body
D
D1
D2
H
L
CAD
Acc.
Price
Order
06192-64008X20
L
tumbled
M8
40
14
25
20
0.00
€
06192-64008X25
L
tumbled
M8
40
14
25
25
0.00
€
06192-64008X30
L
tumbled
M8
40
14
25
30
0.00
€
06192-64008X40
L
tumbled
M8
40
14
25
40
0.00
€
06192-65010X25
L
tumbled
M10
50
18
32
25
0.00
€
06192-65010X30
L
tumbled
M10
50
18
32
30
0.00
€
06192-65010X40
L
tumbled
M10
50
18
32
40
0.00
€
06192-65010X50
L
tumbled
M10
50
18
32
50
0.00
€
06192-66312X30
L
tumbled
M12
63
20
40
30
0.00
€
06192-66312X40
L
tumbled
M12
63
20
40
40
0.00
€
06192-66312X50
L
tumbled
M12
63
20
40
50
0.00
€
06192-66312X60
L
tumbled
M12
63
20
40
60
0.00
€
Other items in this category
06192_A
Star grips similar to DIN 6336, aluminium, Form A, blank
06192_B
Star grips similar to DIN 6336, aluminium, Form B, drilled through
06192_C
Star grips similar to DIN 6336, aluminium, Form C, blind hole
06192_D
Star grips similar to DIN 6336, aluminium, Form D, thread countersunk
06192_E
Star grips similar to DIN 6336, aluminium, Form E, blind tapped hole
