Star grips aluminium, similar to DIN 6336

Item description/product images

DescriptionMaterial:

Aluminium.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Vibratory ground or ground and polished.

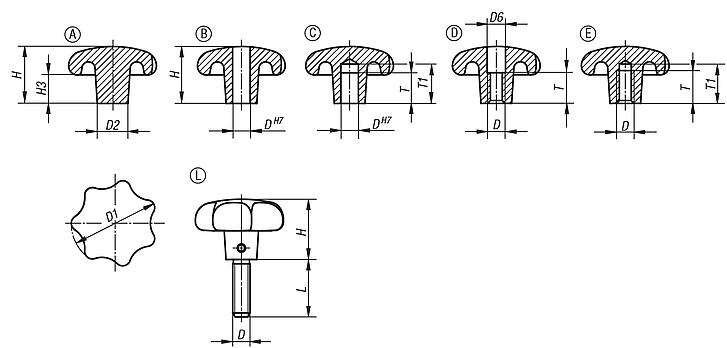

Grub screw and pin bright.On request:Blank star grips (not tumbled).Drawing reference:

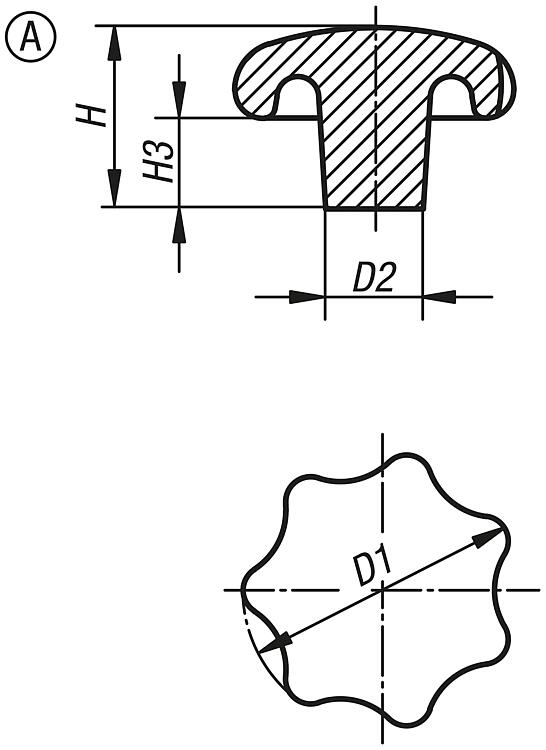

Form A: blank

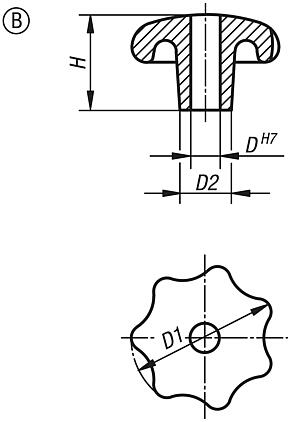

Form B: drilled through

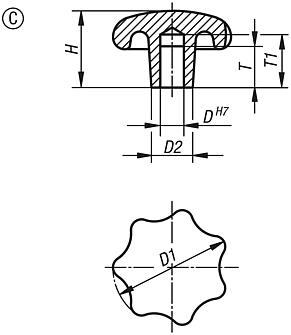

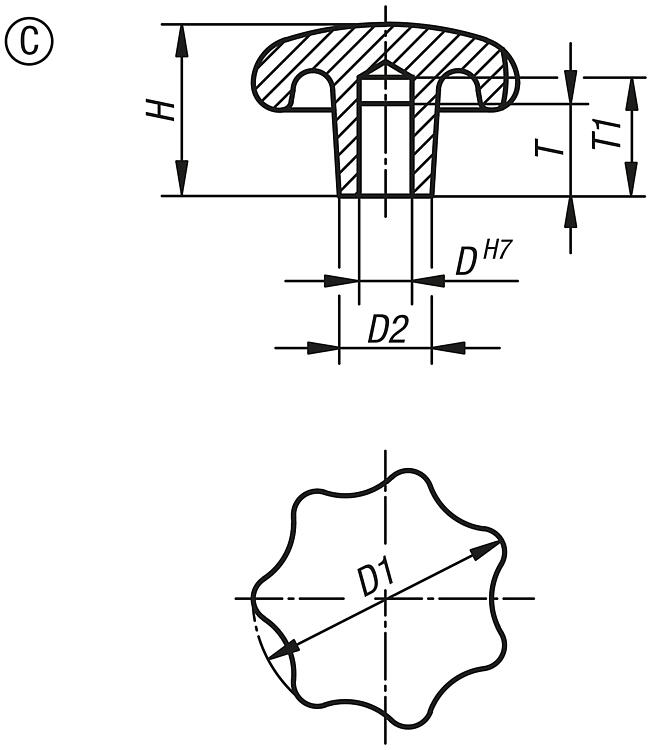

Form C: blind hole

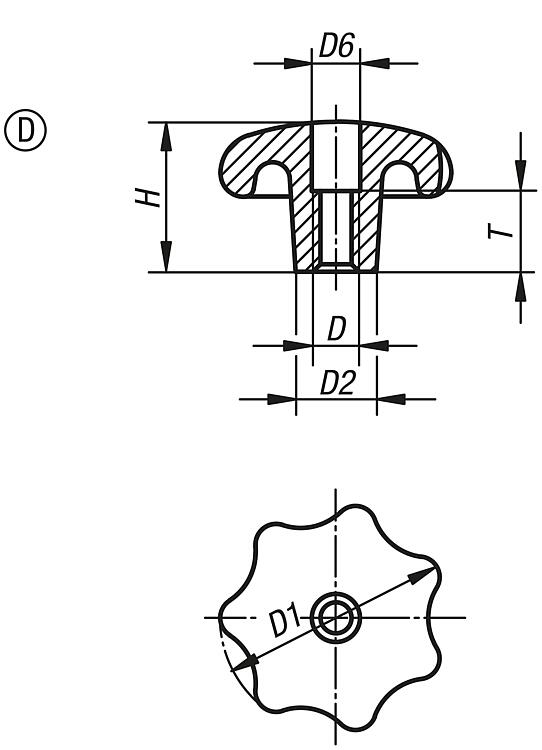

Form D: tapped and counterbored

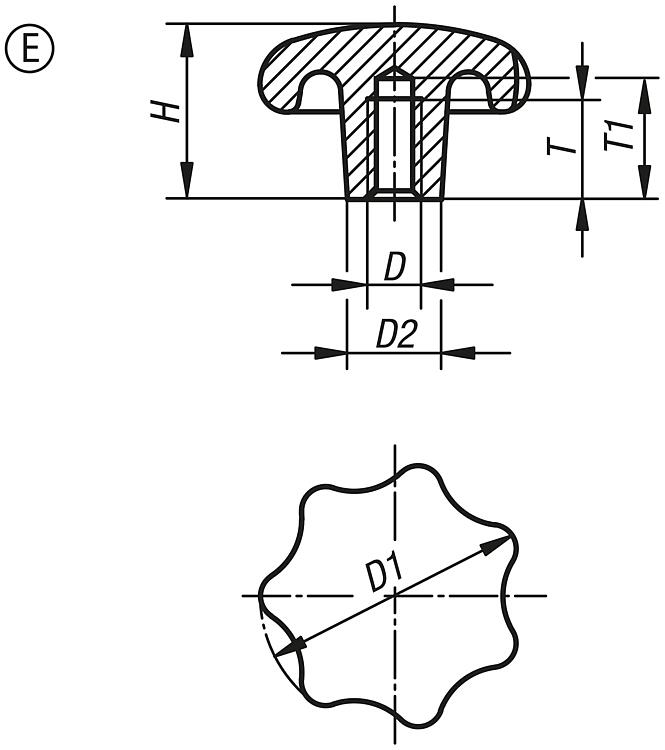

Form E: tapped blind hole

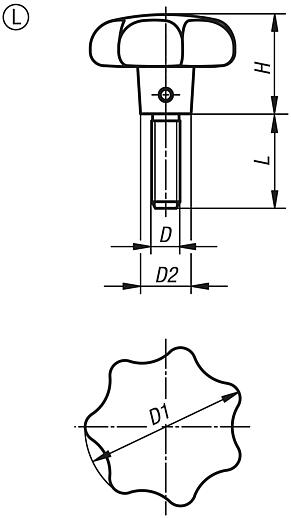

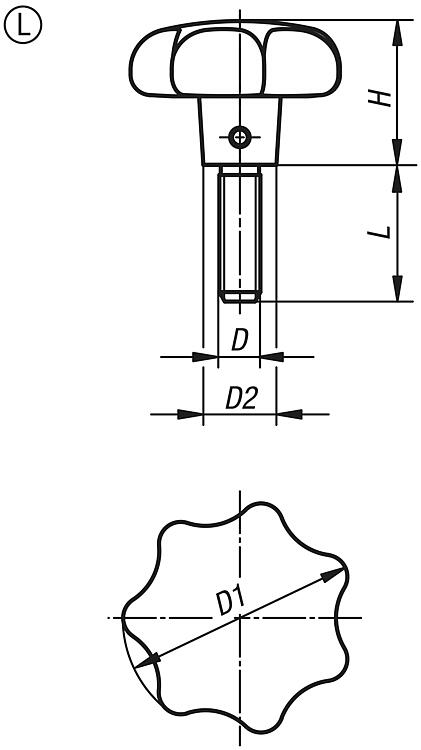

Form L: external thread

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Form	Surface finish body	D1	D2	H	H3
06192-14008	A	tumbled	40	14	26	13
06192-15010	A	tumbled	50	18	34	17
06192-16312	A	tumbled	63	20	42	21
06192-18016	A	tumbled	80	25	52	25

Order No.	Form	Surface finish body	D	D1	D2	H
06192-240082	B	polished	8	40	14	25
06192-250102	B	polished	10	50	18	32
06192-263122	B	polished	12	63	20	40
06192-280162	B	polished	16	80	25	50
06192-24008	B	tumbled	8	40	14	25
06192-25010	B	tumbled	10	50	18	32
06192-26312	B	tumbled	12	63	20	40
06192-28016	B	tumbled	16	80	25	50

Order No.	Form	Surface finish body	D	D1	D2	H	T	T1
06192-340082	C	polished	8	40	14	25	15	18
06192-350102	C	polished	10	50	18	32	18	21
06192-363122	C	polished	12	63	20	40	22	25
06192-380162	C	polished	16	80	25	50	28	32
06192-34008	C	tumbled	8	40	14	25	15	18
06192-35010	C	tumbled	10	50	18	32	18	21
06192-36312	C	tumbled	12	63	20	40	22	25
06192-38016	C	tumbled	16	80	25	50	28	32

Order No.	Form	Surface finish body	D	D1	D2	D6	H	T
06192-440082	D	polished	M8	40	14	8,4	25	12
06192-450102	D	polished	M10	50	18	10,5	32	16
06192-463122	D	polished	M12	63	20	13	40	20
06192-480162	D	polished	M16	80	25	17	50	30
06192-44008	D	tumbled	M8	40	14	8,4	25	12
06192-45010	D	tumbled	M10	50	18	10,5	32	16
06192-46312	D	tumbled	M12	63	20	13	40	20
06192-48016	D	tumbled	M16	80	25	17	50	30

Order No.	Form	Surface finish body	D	D1	D2	H	T	T1
06192-540082	E	polished	M8	40	14	25	15	18
06192-550102	E	polished	M10	50	18	32	18	21
06192-563122	E	polished	M12	63	20	40	22	25
06192-580162	E	polished	M16	80	25	50	28	32
06192-54008	E	tumbled	M8	40	14	25	15	18
06192-55010	E	tumbled	M10	50	18	32	18	21
06192-56312	E	tumbled	M12	63	20	40	22	25
06192-58016	E	tumbled	M16	80	25	50	28	32

Order No.	Form	Surface finish body	D	D1	D2	H	L
06192-64008X20	L	tumbled	M8	40	14	25	20
06192-64008X25	L	tumbled	M8	40	14	25	25
06192-64008X30	L	tumbled	M8	40	14	25	30
06192-64008X40	L	tumbled	M8	40	14	25	40
06192-65010X25	L	tumbled	M10	50	18	32	25
06192-65010X30	L	tumbled	M10	50	18	32	30
06192-65010X40	L	tumbled	M10	50	18	32	40
06192-65010X50	L	tumbled	M10	50	18	32	50
06192-66312X30	L	tumbled	M12	63	20	40	30
06192-66312X40	L	tumbled	M12	63	20	40	40
06192-66312X50	L	tumbled	M12	63	20	40	50
06192-66312X60	L	tumbled	M12	63	20	40	60
