06156_L
Palm grips similar to DIN 6335, aluminium, Form L, with external...
go back
Products
Product overview
Flexible standard component system
Operating parts
Grips, handles and knobs
Palm grips aluminium, similar to DIN 6335

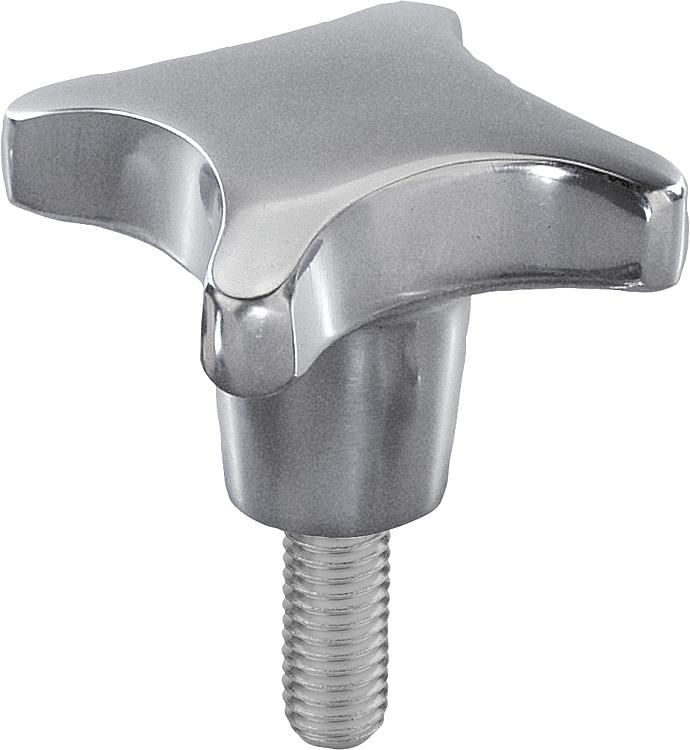

Palm grips similar to DIN 6335, aluminium, Form L, with external thread
Item description/product images
Description
Material:
Aluminium.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.
Version:
Palm grip vibratory ground.
Grub screw and pin bright.
Special features:
Download
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06156_L Palm grips similar to DIN 6335, aluminium, Form L, with external thread
151 kB
Drawings
Item selection/filter
Order No.
Form
Surface finish
body
D
D1
D2
H
L
CAD
Acc.
Price
Order
06156-604008X20
L
tumbled
M8
40
14
25
20
0.00
€
06156-604008X25
L
tumbled
M8
40
14
25
25
0.00
€
06156-604008X30
L
tumbled
M8
40
14
25
30
0.00
€
06156-604008X40
L
tumbled
M8
40
14
25
40
0.00
€
06156-604008X50
L
tumbled
M8
40
14
25
50
0.00
€
06156-605010X20
L
tumbled
M10
50
18
32
20
0.00
€
06156-605010X25
L
tumbled
M10
50
18
32
25
0.00
€
06156-605010X30
L
tumbled
M10
50
18
32
30
0.00
€
06156-605010X40
L
tumbled
M10
50
18
32
40
0.00
€
06156-605010X50
L
tumbled
M10
50
18
32
50
0.00
€
06156-606312X20
L
tumbled
M12
63
25
40
20
0.00
€
06156-606312X30
L
tumbled
M12
63
25
40
30
0.00
€
06156-606312X40
L
tumbled
M12
63
25
40
40
0.00
€
06156-606312X50
L
tumbled
M12
63
25
40
50
0.00
€
