Palm grips aluminium, similar to DIN 6335

Item description/product images

DescriptionMaterial:

Aluminium.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Vibratory ground or ground and polished.

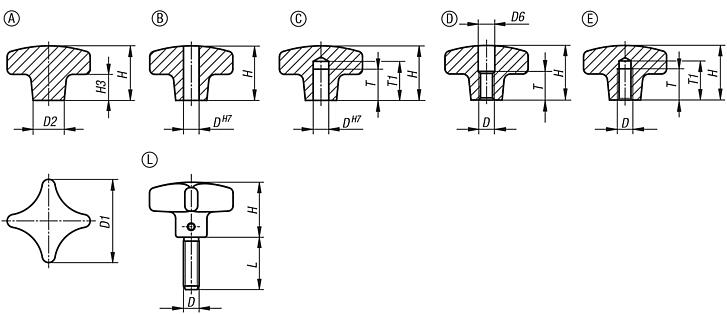

Grub screw and pin bright.On request:Blank palm grips (not tumbled).Drawing reference:

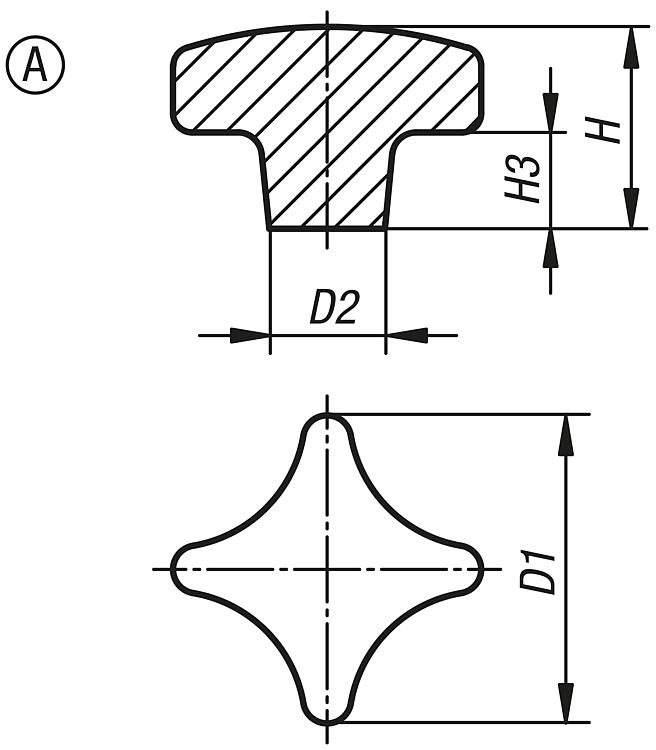

Form A: blank
Form B: drilled through

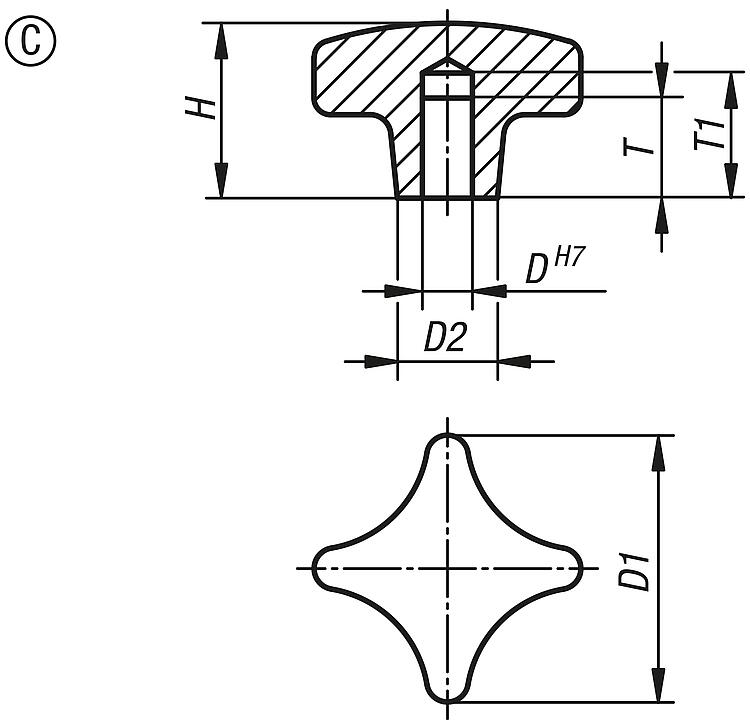

Form C: blind hole

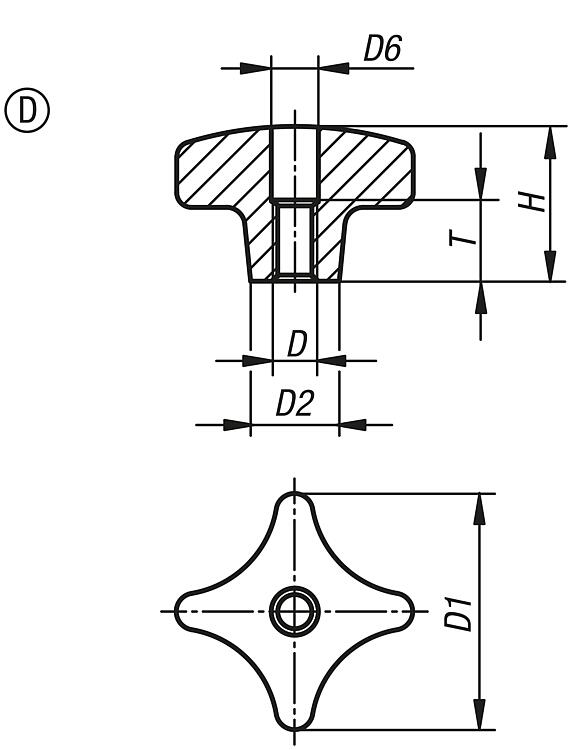

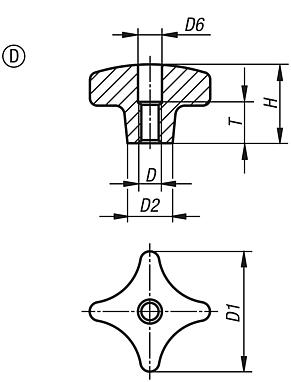

Form D: tapped and counterbored
Form E: tapped blind hole
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Surface finish body	Form	D1	D2	H	H3
06156-104008	tumbled	A	40	14	26	14
06156-105010	tumbled	A	50	18	34	20
06156-106312	tumbled	A	63	25	42	25
06156-108016	tumbled	A	80	25	52	30

Order No.	Form	Finish	D1	D	D2	H
06156-2080162	B	polished	80	16	25	50
06156-2040082	B	polished	40	8	14	25
06156-2050102	B	polished	50	10	18	32
06156-2063122	B	polished	63	12	25	40
06156-205010	B	tumbled	50	10	18	32
06156-206312	B	tumbled	63	12	25	40
06156-204008	B	tumbled	40	8	14	25
06156-208016	B	tumbled	80	16	25	50

Order No.	Form	Finish	D	D1	D2	H	T	T1
06156-3080162	C	polished	16	80	25	50	28	32
06156-3040082	C	polished	8	40	14	25	15	18
06156-3050102	C	polished	10	50	18	32	18	21
06156-3063122	C	polished	12	63	25	40	22	25
06156-305010	C	tumbled	10	50	18	32	18	21
06156-306312	C	tumbled	12	63	25	40	22	25
06156-304008	C	tumbled	8	40	14	25	15	18
06156-308016	C	tumbled	16	80	25	50	28	32

Order No.	Form	Finish	D	D1	D2	D6	H	T
06156-404008	D	tumbled	M8	40	14	8,4	25	15
06156-405010	D	tumbled	M10	50	18	10,5	32	18
06156-406312	D	tumbled	M12	63	25	13	40	22
06156-408016	D	tumbled	M16	80	25	17	50	28
06156-4040082	D	polished	M8	40	14	8,4	25	15
06156-4050102	D	polished	M10	50	18	10,5	32	18
06156-4063122	D	polished	M12	63	25	13	40	22
06156-4080162	D	polished	M16	80	25	17	50	28

Order No.	Form	Finish	D	D1	D2	H	T	T1
06156-504008	E	tumbled	M8	40	14	25	15	18
06156-505010	E	tumbled	M10	50	18	32	18	21
06156-506312	E	tumbled	M12	63	25	40	22	25
06156-508016	E	tumbled	M16	80	25	50	28	32
06156-5040082	E	polished	M8	40	14	25	15	18
06156-5050102	E	polished	M10	50	18	32	18	21
06156-5063122	E	polished	M12	63	25	40	22	25
06156-5080162	E	polished	M16	80	25	50	28	32

Order No.	Form	Surface finish body	D	D1	D2	H	L
06156-604008X20	L	tumbled	M8	40	14	25	20
06156-604008X25	L	tumbled	M8	40	14	25	25
06156-604008X30	L	tumbled	M8	40	14	25	30
06156-604008X40	L	tumbled	M8	40	14	25	40
06156-604008X50	L	tumbled	M8	40	14	25	50
06156-605010X20	L	tumbled	M10	50	18	32	20
06156-605010X25	L	tumbled	M10	50	18	32	25
06156-605010X30	L	tumbled	M10	50	18	32	30
06156-605010X40	L	tumbled	M10	50	18	32	40
06156-605010X50	L	tumbled	M10	50	18	32	50
06156-606312X20	L	tumbled	M12	63	25	40	20
06156-606312X30	L	tumbled	M12	63	25	40	30
06156-606312X40	L	tumbled	M12	63	25	40	40
06156-606312X50	L	tumbled	M12	63	25	40	50
