        LED workplace lamps in an aluminium housing 230 Volt, dimmable

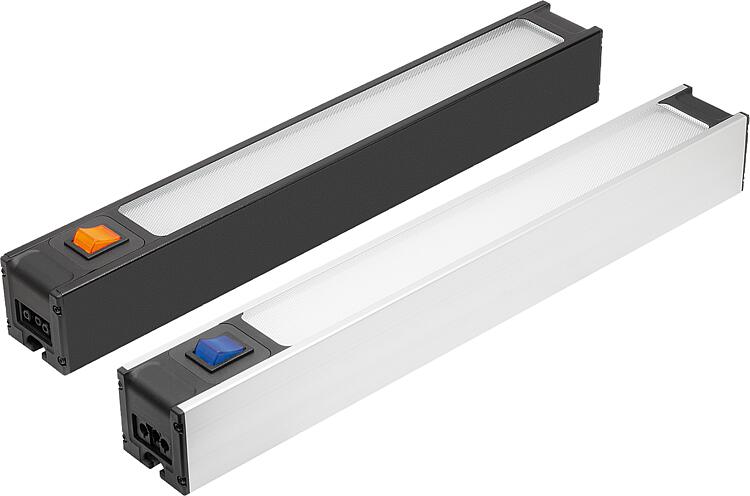

Item description/product images

DescriptionMaterial:Housing: aluminium.
Cover caps: PA plastic, carbon fibre reinforced.
Diffusion disc: polycarbonate.
Buttons: ABS/PA plastic.Version:Housing: natural tone anodised (ESD version black anodised).
Cover caps: black.
Diffusion disc: transparent.
Button: blue, illuminable (ESD version orange, illuminable).Note:LED lamps in robust industrial quality for lighting at the workplace. The LED lamps are enclosed in an aluminium profile with type I slot 8 at the rear. An attachment to profile slots and to panel elements is possible by means of the slot using the separately available accessories.

The LED lamps have a power input and a power output. These are integrated into the end caps at the respective ends. The connection to the power supply is made via the separately available mains cable. By using a coupling or a connection cable, several LED lamps can be connected directly to or at a distance from each other (Linking of max. 6 socket outlets, cable length max. 8 m for mains and connecting cable. Max. power rating 3500 W). Additional LED lamps or socket outlets can be connected to the power output.

By the LED lamp, the on/off and dimming functions are controlled via the dimming knob on the power input side of the lamp. The last set light intensity is saved and automatically recalled the next time the unit is switched on.

Due to the conical prismatic lens, the LED lamps supply the workplace with a uniform, glare and flicker free light flux in workplace-friendly neutral white. The long service life of the LED's, up to 100,000 hours, makes them virtually maintenance-free.Temperature range:0 °C to +40 °C.Accessory:80161 Mains cables.
80161-05 Connecting cables.
80161-10 Couplings.
80161-49 End caps.
07075-01 Slot key direct connectors.
07075-02 Slot key profile connectors.
10242-01 Angle steel.
10905 Connector plates.Drawing reference:

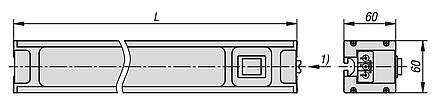

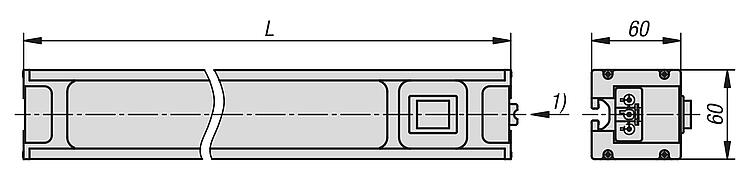

1) Input side

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 86050 LED workplace lamps in an aluminium housing 230 Volt, dimmable

181 kB

Drawings

Item selection/filter

Order No.	Main colour	Slot width	L	Input switchable	Dimmable	Operating voltage V AC	Operating frequency Hz	Operating current max. A	Beam angle	Colour rendition index
86050-10X476	natural anodised	8	476	yes	yes	230	50	16	80°	85
86050-11X476	black anodised	8	476	yes	yes	230	50	16	80°	85
86050-10X953	natural anodised	8	953	yes	yes	230	50	16	79°	85
86050-11X953	black anodised	8	953	yes	yes	230	50	16	79°	85

Order No.	Colour temp.	Luminous efficacy lm/W	Luminous flux lm	Power consumption W	Safety rating	Protection class	Wattage max. W	ESD electrostatic discharging
86050-10X476	4000 k (neutral white)	86	1396	17	IP20	II Protective insulation	3500	no
86050-11X476	4000 k (neutral white)	86	1396	17	IP20	II Protective insulation	3500	yes
86050-10X953	4000 k (neutral white)	86	3294	40	IP20	II Protective insulation	3500	no
86050-11X953	4000 k (neutral white)	86	3294	40	IP20	II Protective insulation	3500	yes
