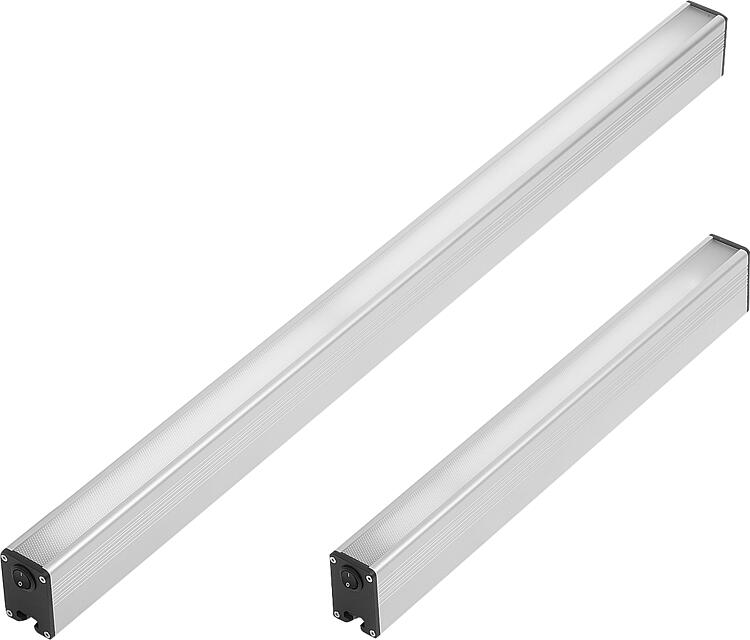

        LED workstation lamps in aluminium housing, 5600K, 230 volt

Item description/product images

DescriptionProduct description:LED lamp in daylight white. Universal LED lamp for a wide range of applications in workshops, logistics areas or at system workstations.Material:Housing: aluminium.
Diffuser: plastic.
End caps: polyamide (PA).Version:Housing: natural tone anodised.
Diffuser: micro-prisms, anti-glare.

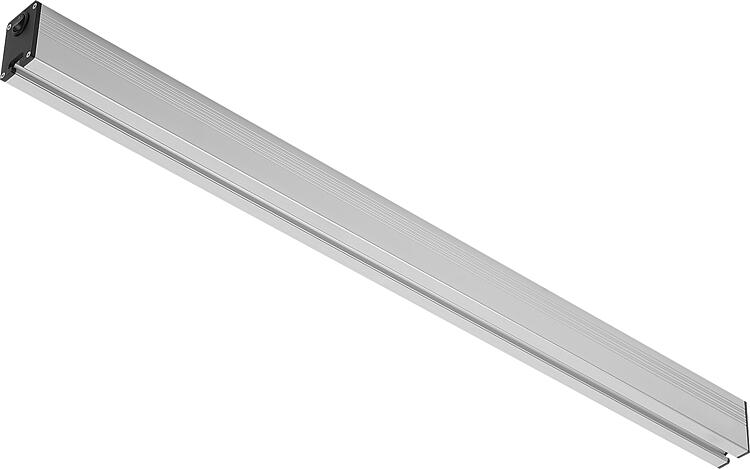

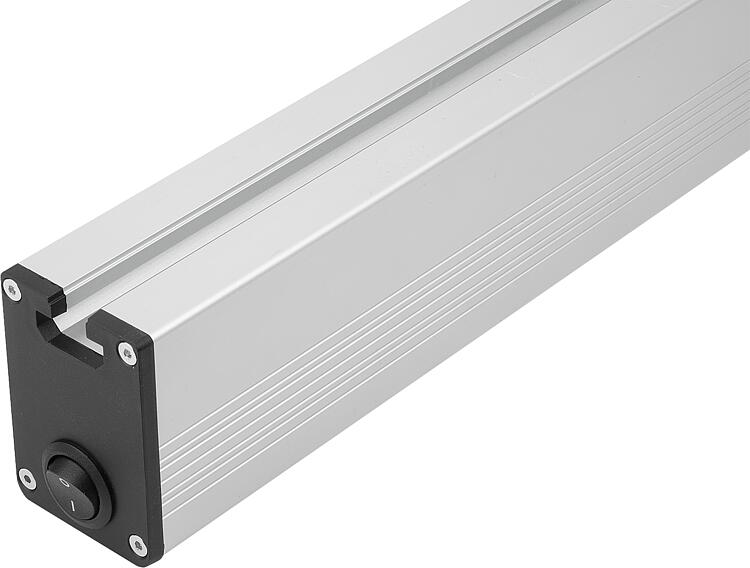

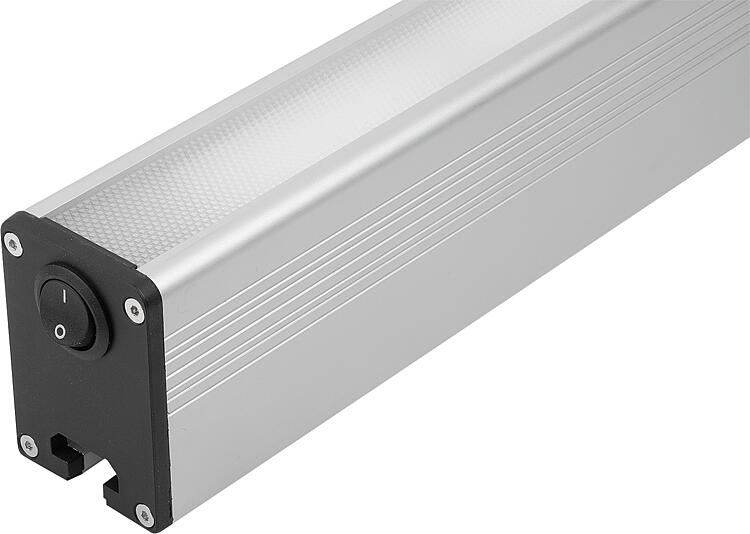

End caps: black.Note:LED lamps in robust industrial quality for lighting at the workplace. These LED lamps are housed in an aluminium profile with an 8 mm slot on the back. An attachment to profile slots and to panel elements is possible by means of the slot using the separately available accessories. They are operated via a rocker switch.

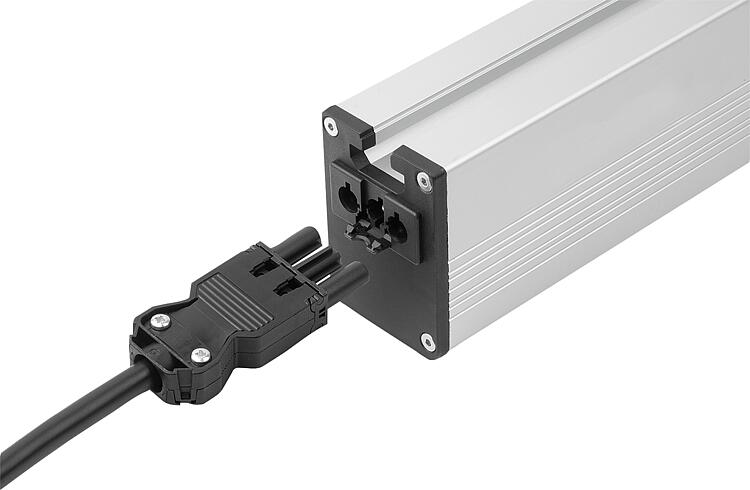

The LED lamps have a power input. This is built into the front side of the end cap. The connection to the power supply is made via a separately available mains cable (Wieland plug GST18i3).

The LED lamps provide the workplace with a uniform, glare-free and flicker-free illumination in work-friendly daylight white, light temperature 5600K, through a micro-prism lens. The beam angle is 100°.

Certificates / Standards met:
CE, UKCA.
DIN EN 62471.Temperature range:-10°C to +45°C.Advantages:The high-quality aluminium housing guarantees durability, stability and low weight. The IP40 rating means the lamp ideal for indoor use. The lamps achieve a colour rendering of >85. The LED lamps are simple, robust and impervious with optics for area illumination. The light diffusion-enhancing micro-prism cover ensures balanced illumination of workstations in production, assembly or packaging. The long LED service life of up to 100,000 hours (L80/B10) make the lamps virtually maintenance-free.Accessory:80161 Mains cables.
86090 Connector plates for slot 8.
07090 T-nuts for slot 8.
10242-01 Steel angle bracket.Drawing reference:

1) Input side

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 86050-02 LED workstation lamps in aluminium housing, 5600K, 230 volt

403 kB

Drawings

Item selection/filter

Order No.	L	Connection	Dimmable	Lamp socket	Power consumption W	CAD	Acc.	Price	Order
86050-02-100X0500	500	WIELAND GST18i3	no	LED integrated	~14			0.00 €
86050-02-100X0900	900	WIELAND GST18i3	no	LED integrated	~24			0.00 €

Order No.	Lamp power W	Operating voltage V AC	Operating frequency Hz	Light distribution	Beam angle	CAD	Acc.	Price	Order
86050-02-100X0500	~11	120-277	50-60	direct	100°			0.00 €
86050-02-100X0900	~21	120-277	50-60	direct	100°			0.00 €

Order No.	Colour temp.	Luminous efficacy lm/W	Luminous flux lm	Colour rendition index	Service life Lamp	CAD	Acc.	Price	Order
86050-02-100X0500	5600 K (daylight white)	155	1670	>85	>100.000 h (L80/B10)			0.00 €
86050-02-100X0900	5600 K (daylight white)	155	3340	>85	>100.000 h (L80/B10)			0.00 €
