03330 inchLateral spring plungers with aluminium sleeve and plastic or... |
go back |
|
|
DescriptionMaterial:Sleeve aluminium.
Spring steel.
Thrust pin steel or POM.Version:Steel thrust pin hardened and electro zinc-plated.

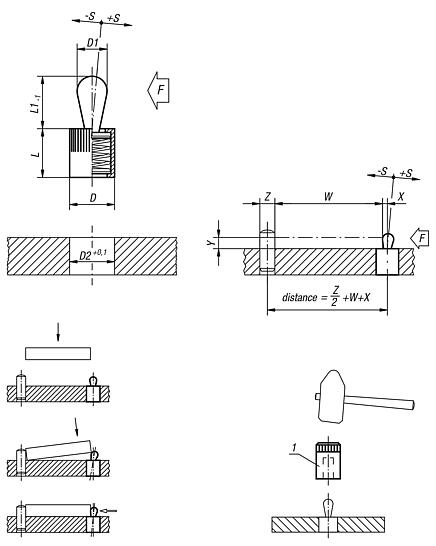

Sleeve blue electro zinc-plated.Note:For the inch series, dimension D and D2 are in inches, all other dimensions are in mm.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Lateral spring plungers without seal, thrust pin and spring steel - inch |
More information |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| 03330-21034CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03CM |  | | 5.26 € | | | 03330-21036CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 20 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03CM | | | 5.26 € | | | 03330-21038CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 40 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03CM | | | 5.26 € | | | 03330-21054CU | 7/16 | 5 | 11 | 6,7 | 7/16 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05CU | | | 5.73 € | | | 03330-21056CU | 7/16 | 5 | 11 | 6,7 | 7/16 | 0,8 | 50 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05CU | | | 5.73 € | | | 03330-21058CU | 7/16 | 5 | 11 | 6,7 | 7/16 | 0,8 | 100 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05CU | | | 5.73 € | | | 03330-21064CU | 7/16 | 6 | 11 | 10,7 | 7/16 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05CU | | | 6.19 € | | | 03330-21066CU | 7/16 | 6 | 11 | 10,7 | 7/16 | 1 | 75 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05CU | | | 6.19 € | | | 03330-21068CU | 7/16 | 6 | 11 | 10,7 | 7/16 | 1 | 150 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05CU | | | 6.19 € | | | 03330-21084CP | 1/2 | 8 | 13 | 13,9 | 1/2 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | 03330-08CP | | | 6.74 € | | | 03330-21086CP | 1/2 | 8 | 13 | 13,9 | 1/2 | 1,3 | 100 | - | - | - | - | 2,5 | 2,7 | 03330-08CP | | | 6.74 € | | | 03330-21088CP | 1/2 | 8 | 13 | 13,9 | 1/2 | 1,3 | 150 | - | - | - | - | 2,5 | 2,7 | 03330-08CP | | | 6.74 € | | | 03330-21104CQ | 5/8 | 10 | 17 | 16,7 | 5/8 | 1,6 | 100 | - | - | - | - | - | 3,1 | 03330-10CQ | | | 7.42 € | | | 03330-21106CQ | 5/8 | 10 | 17 | 16,7 | 5/8 | 1,6 | 150 | - | - | - | - | - | 3,1 | 03330-10CQ | | | 7.42 € | | | 03330-21108CQ | 5/8 | 10 | 17 | 16,7 | 5/8 | 1,6 | 200 | - | - | - | - | - | 3,1 | 03330-10CQ | | | 7.42 € | |
|
Lateral spring plungers with seal, thrust pin and spring steel - inch |
More information |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| 03330-22034CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03CM | | | 7.58 € | | | 03330-22036CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 20 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03CM | | | 7.58 € | | | 03330-22038CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 40 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03CM | | | 7.58 € | | | 03330-22054CU | 7/16 | 5 | 12 | 6 | 7/16 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05CU | | | 7.90 € | | | 03330-22056CU | 7/16 | 5 | 12 | 6 | 7/16 | 0,8 | 50 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05CU | | | 7.90 € | | | 03330-22058CU | 7/16 | 5 | 12 | 6 | 7/16 | 0,8 | 100 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05CU | | | 7.90 € | | | 03330-22064CU | 7/16 | 6 | 12 | 10 | 7/16 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05CU | | | 8.37 € | | | 03330-22066CU | 7/16 | 6 | 12 | 10 | 7/16 | 1 | 75 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05CU | | | 8.37 € | | | 03330-22068CU | 7/16 | 6 | 12 | 10 | 7/16 | 1 | 100 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05CU | | | 8.37 € | | | 03330-22084CP | 1/2 | 8 | 14 | 13 | 1/2 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | 03330-08CP | | | 8.90 € | | | 03330-22086CP | 1/2 | 8 | 14 | 13 | 1/2 | 1,3 | 100 | - | - | - | - | 2,5 | 2,7 | 03330-08CP | | | 8.90 € | | | 03330-22088CP | 1/2 | 8 | 14 | 13 | 1/2 | 1,3 | 150 | - | - | - | - | 2,5 | 2,7 | 03330-08CP | | | 8.90 € | | | 03330-22104CQ | 5/8 | 10 | 18 | 16 | 5/8 | 1,6 | 100 | - | - | - | - | - | 3,1 | 03330-10CQ | | | 9.59 € | | | 03330-22106CQ | 5/8 | 10 | 18 | 16 | 5/8 | 1,6 | 150 | - | - | - | - | - | 3,1 | 03330-10CQ | | | 9.59 € | | | 03330-22108CQ | 5/8 | 10 | 18 | 16 | 5/8 | 1,6 | 200 | - | - | - | - | - | 3,1 | 03330-10CQ | | | 9.59 € | |
|
Lateral spring plungers without seal, thrust pin POM, spring steel - inch |
More information |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| 03330-71034CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03CM | | | 5.26 € | | | 03330-71054CU | 7/16 | 5 | 11 | 6,7 | 7/16 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05CU | | | 5.73 € | | | 03330-71064CU | 7/16 | 6 | 11 | 10,7 | 7/16 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05CU | | | 6.19 € | | | 03330-71084CP | 1/2 | 8 | 13 | 13,9 | 1/2 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | 03330-08CP | | | 6.74 € | | | 03330-71104CQ | 5/8 | 10 | 17 | 16,7 | 5/8 | 1,6 | 100 | - | - | - | - | - | 3,1 | 03330-10CQ | | | 7.42 € | |
|
Lateral spring plungers with seal, thrust pin POM, spring steel - inch |
More information |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| 03330-72034CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | 03330-03CM | | | 7.58 € | | | 03330-72054CU | 7/16 | 5 | 12 | 6 | 7/16 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | 03330-05CU | | | 7.90 € | | | 03330-72064CU | 7/16 | 6 | 12 | 10 | 7/16 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | 03330-05CU | | | 8.37 € | | | 03330-72084CP | 1/2 | 8 | 14 | 13 | 1/2 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | 03330-08CP | | | 8.90 € | | | 03330-72104CQ | 5/8 | 10 | 18 | 16 | 5/8 | 1,6 | 100 | - | - | - | - | - | 3,1 | 03330-10CQ | | | 9.59 € | |
|
