        Eccentric bushes and assembly tools for lateral spring plungers - inch

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Black oxidised.Note:For the inch series, dimension D, D1, D2 et D3 are in inches, all other dimensions are in mm.Drawing reference:

1) assembly tool

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03330 inch Eccentric bushes and assembly tools for lateral spring plungers, inch

238 kB

Drawings (total overview)

Eccentric bushes for lateral spring plungers - inch

More information

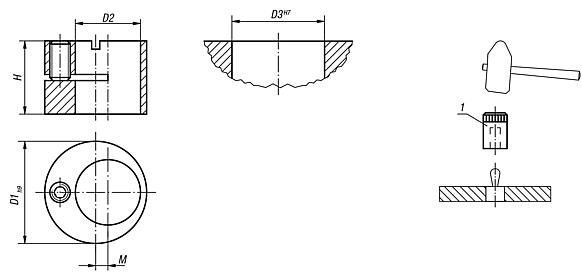

Drawings

Eccentric bushes for lateral spring plungers - inch

Item selection/filter

Order No.	D1	D2	D3	H	M	Suitable for lateral spring plungers with D =	Price
03330-120CM	1/2	1/4	1/2	9,9	2	1/4	30.57 €
03330-160CU	11/16	7/16	11/16	11,9	2	7/167/16	34.90 €
03330-180CP	3/4	1/2	3/4	13,9	2	1/21/2	37.54 €
03330-250CQ	1	5/8	1	17,9	3	5/85/8	43.07 €
