Splined shafts, T2,5 profile

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Drive technology
      - Toothed belt pulleys Splined shaft Timing belts
        Splined shafts T profile
        Splined shafts, T2,5 profile

Item description/product images

DescriptionMaterial:Aluminium.Version:Bright.Note:Standard T-profile to ISO 17396 with metric pitch (trapezoidal toothing). For manufacturing your own toothed wheelsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

22007_2_5_Datasheet_32668_Splined_shafts_T2_5_profile--en

145 kB

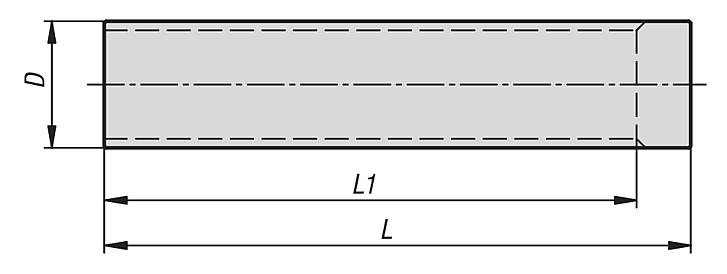

Drawings

Item selection/filter

Order No.	Profile	No. of teeth	D	L	L1	Price
22007-25010	T2,5	10	7,42	75	50	on request
22007-25012	T2,5	12	9	75	50	on request
22007-25013	T2,5	13	9,8	75	50	on request
22007-25014	T2,5	14	10,6	75	50	on request
22007-25015	T2,5	15	11,4	75	75	on request
22007-25016	T2,5	16	12,2	75	75	on request
22007-25017	T2,5	17	13	75	75	on request
22007-25018	T2,5	18	13,8	75	75	on request
22007-25019	T2,5	19	14,6	120	120	on request
22007-25020	T2,5	20	15,4	120	120	on request
22007-25021	T2,5	21	16,2	120	120	on request
22007-25022	T2,5	22	17	140	140	on request
22007-25024	T2,5	24	18,55	140	140	on request
22007-25026	T2,5	26	20,15	140	140	on request
22007-25027	T2,5	27	20,95	140	140	on request
22007-25028	T2,5	28	21,75	140	140	on request
22007-25029	T2,5	29	22,55	140	140	on request
22007-25030	T2,5	30	23,35	140	140	on request
22007-25032	T2,5	32	24,95	140	140	on request
22007-25034	T2,5	34	26,55	140	140	on request
22007-25035	T2,5	35	27,35	140	140	on request
22007-25036	T2,5	36	28,1	140	140	on request
22007-25038	T2,5	38	29,7	140	140	on request
22007-25040	T2,5	40	31,3	140	140	on request
22007-25042	T2,5	42	32,9	140	140	on request
22007-25044	T2,5	44	34,5	140	140	on request
22007-25045	T2,5	45	35,3	140	140	on request
22007-25048	T2,5	48	37,7	140	140	on request
22007-25050	T2,5	50	39,29	160	160	on request
22007-25060	T2,5	60	47,25	160	160	on request
22007-25065	T2,5	65	51,2	160	160	on request
22007-25070	T2,5	70	55,2	160	160	on request
22007-25072	T2,5	72	56,8	160	160	on request
22007-25090	T2,5	90	71,12	160	160	on request
22007-25100	T2,5	100	79,08	160	160	on request
