        Splined shafts, T10 profile

Item description/product images

DescriptionMaterial:Aluminium.Version:Bright.Note:Standard T-profile to ISO 17396 with metric pitch (trapezoidal toothing). For manufacturing your own toothed wheelsSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

22007_10_Datasheet_32725_Splined_shafts_T10_profile--en

143 kB

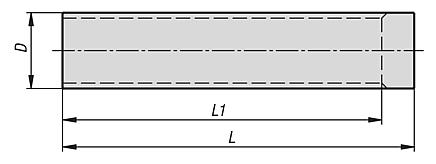

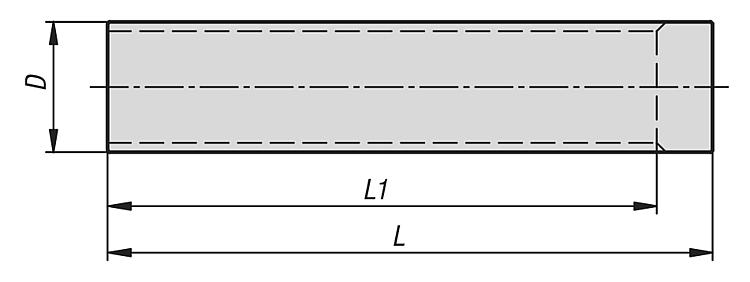

Drawings

Item selection/filter

Order No.	Profile	No. of teeth	D	L	L1	Price
22007-10010	T10	10	29,98	140	140	on request
22007-10011	T10	11	33,16	140	140	on request
22007-10012	T10	12	36,35	140	140	on request
22007-10013	T10	13	39,5	140	140	on request
22007-10014	T10	14	42,7	160	160	on request
22007-10015	T10	15	45,9	160	160	on request
22007-10016	T10	16	49,1	160	160	on request
22007-10017	T10	17	52,25	160	160	on request
22007-10018	T10	18	55,45	160	160	on request
22007-10019	T10	19	58,65	160	160	on request
22007-10020	T10	20	61,8	160	160	on request
22007-10021	T10	21	65	160	160	on request
22007-10022	T10	22	68,2	160	160	on request
22007-10023	T10	23	71,35	160	160	on request
22007-10024	T10	24	74,55	160	160	on request
22007-10026	T10	26	80,9	160	160	on request
22007-10028	T10	28	87,25	160	160	on request
22007-10030	T10	30	93,65	160	160	on request
22007-10032	T10	32	100	160	160	on request
22007-10034	T10	34	106,4	160	160	on request
22007-10036	T10	36	112,75	160	160	on request
22007-10038	T10	38	119,1	160	160	on request
22007-10040	T10	40	125,45	160	160	on request
22007-10045	T10	45	141,4	160	160	on request
22007-10048	T10	48	150,95	160	160	on request
22007-10060	T10	60	189,1	160	160	on request
22007-10072	T10	72	227,29	160	160	on request
