DescriptionMaterial:Mounting position 1, housing die-cast zinc
Mounting position 3, housing aluminium.

Clamping lever plastic.
Version:Housing anodised.
Clamping lever black grey.
Note:Mounting brackets and position indicators form a compact unit. The brackets guarantee reliable spindle clamping without additional construction work.
The simple assembly allows the retrofitting on existing equipment.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 21944 Mounting brackets 254 kB

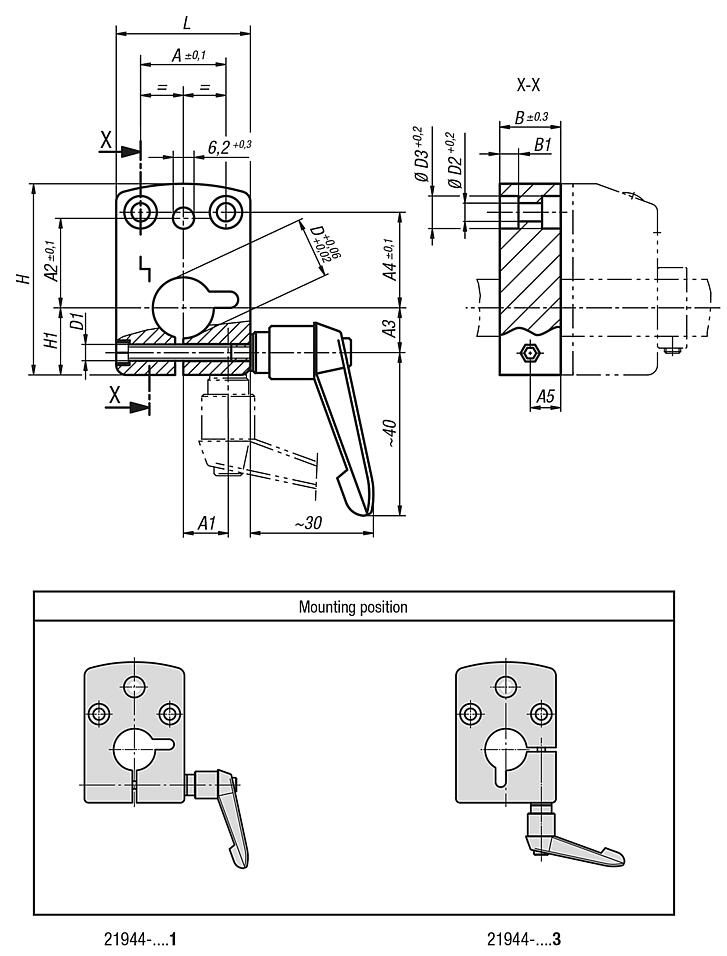

Drawings

Mounting brackets

Overview of items (compressed)

Item selection/filter
Order No.
mounting position 1
Order No.
mounting position 3
AA1A2A3A4A5BB1DD1

D2D3HH1LSuitable
for position
indicator
Filter
21944-0408121944-0408321-/112211/-23,57,5154,68M44,584716,533-
21944-0410121944-0410321-/112211/-23,57,5154,610M44,584716,533-
21944-0412121944-0412321-/112211/-23,57,5154,612M44,584716,533-
21944-0414121944-0414321-/112211/-23,57,5154,614M44,584716,533-
21944-0912121944-0912334-/173017/-1710205,512M55,51067,525,548-
21944-0914121944-0914334-/173017/-1710205,514M55,51067,525,548-
21944-0916121944-0916334-/173017/-1710205,516M55,51067,525,548-
21944-0920121944-0920334-/173017/-1710205,520M55,51067,525,548-
