Cycle counter, mechanical square design
 21975

Cycle counter, mechanical square design

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:Housing fibreglass reinforced plastic.
Plunger steel.Note:Mechanical cycle counter for reliable monitoring of tool movements on injection moulding and punching tools. The cycle counter has a 7 digit mechanical counter. The counter cannot be reset. The shift travel is 3.7 mm.

The cycle counter is easy to install, completely maintenance-free and requires no power supply.

These cycle counters are available for right-hand or left-hand use.Temperature range:Maximum operating temperature +120  °C.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 21975 Cycle counter, mechanical square design 187 kB

Drawings (total overview)

Cycle counter, mechanical square design

Cycle counter, mechanical, square design, Form A, righthand

 More information

Drawings

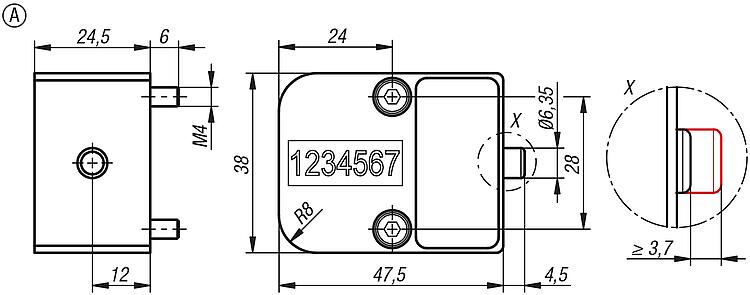

Cycle counter, mechanical, square design, Form A, righthand

Item selection/filter
Order No.

FormForm definitionCADAcc.PriceOrder
21975-1Aright on request

Cycle counter, mechanical, square design, Form B, lefthand

 More information

Drawings

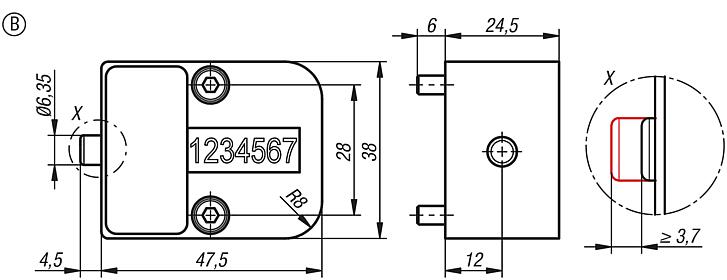

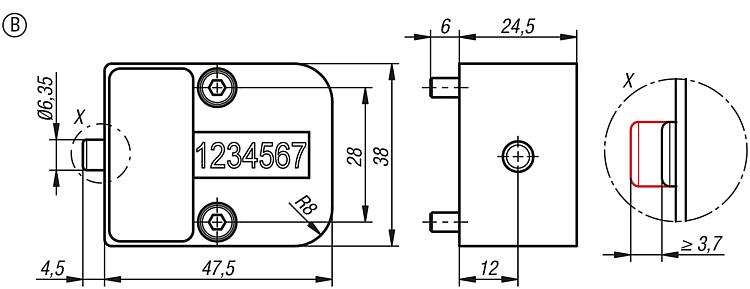

Cycle counter, mechanical, square design, Form B, lefthand

Item selection/filter
Order No.

FormForm definitionCADAcc.PriceOrder
21975-2Bleft on request
