Swivel and fixed castors heavy-duty version
95040

Swivel and fixed castors heavy-duty version

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing thick steel plate.
Wheels high-quality PA 6.
Version:Housing press formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.
Note:The hardened bearing shells make these castors particularly shock and impact proof. The wheels have high abrasion resistance. Wheel axle bolted.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 95040 Swivel and fixed castors heavy-duty version 430 kB

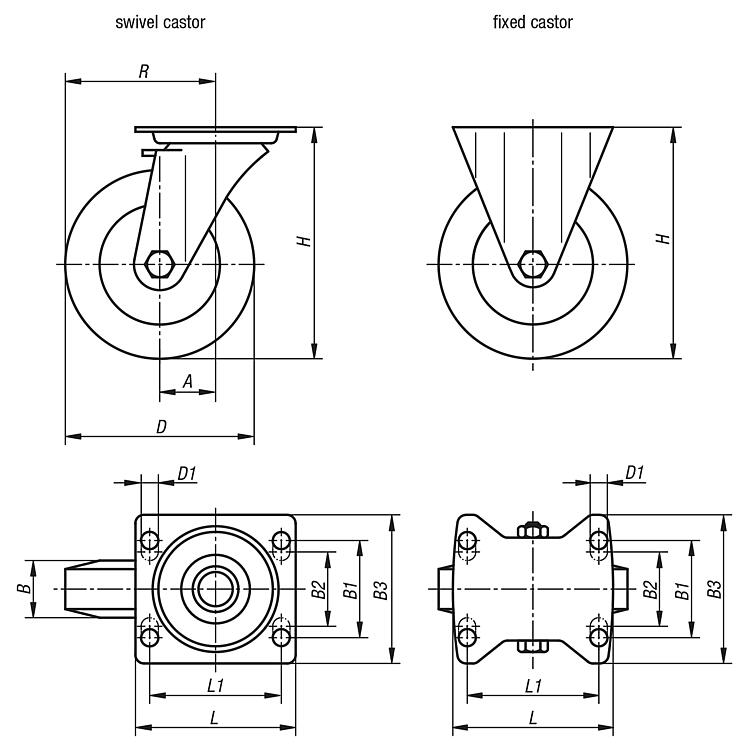

Drawings (total overview)

Swivel and fixed castors heavy-duty version
Swivel and fixed castors heavy-duty version

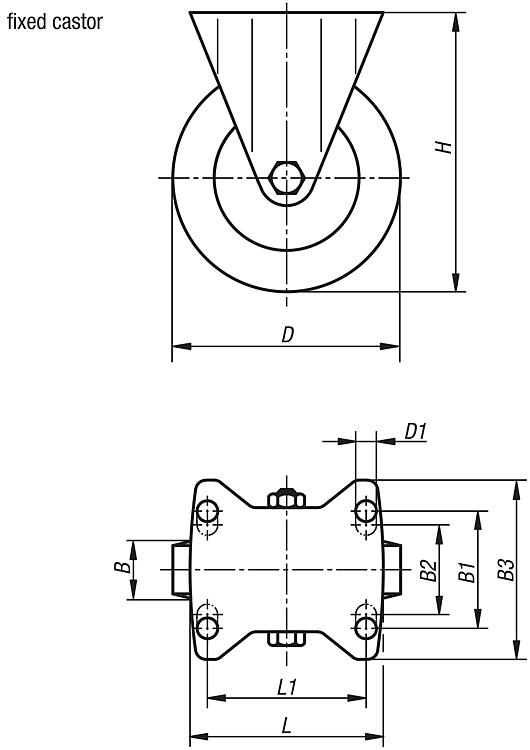

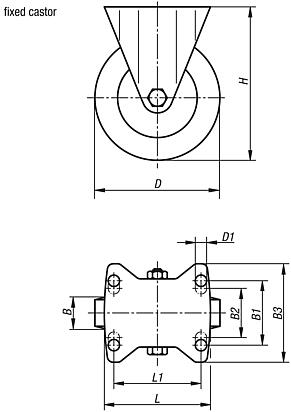

Fixed castors

More information

Drawings

Fixed castors

Item selection/filter

Order No.Version

Wheel
bearing
BB1B2B3LL1HDR1Permissible
load
kg
CADAcc.PriceOrder
95040-075321fixed castorsplain bearing8560-3210080118975300 26.09 €
95040-075324fixed castorsball bearing8560-3210080118975300 55.97 €
95040-100371fixed castorsplain bearing8560-37100801409100500 34.72 €
95040-100374fixed castorsball bearing8560-37100801409100500 68.28 €
95040-125401fixed castorsplain bearing8560-40100801659125700 49.08 €
95040-125404fixed castorsball bearing8560-40100801659125700 84.96 €
95040-150501fixed castorsplain bearing11080755014010519711150800 64.03 €
95040-150504fixed castorsball bearing11080755014010519711150800 92.75 €

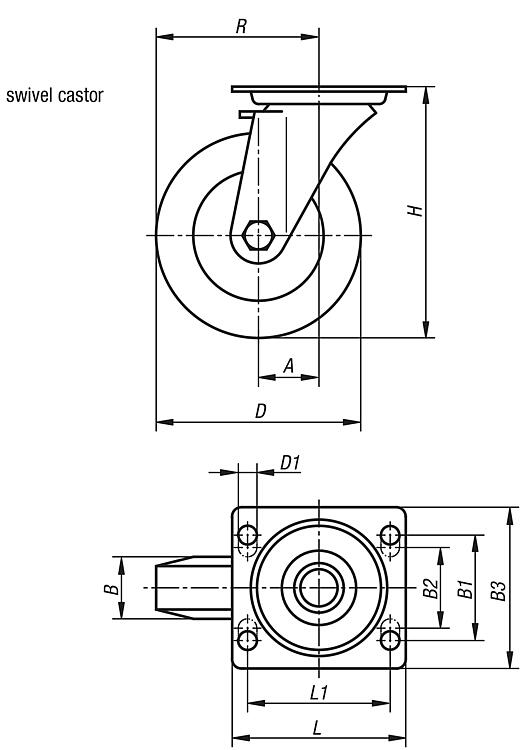

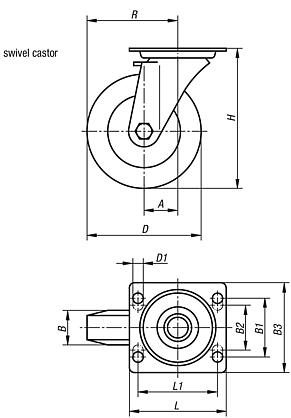

Swivel castors

More information

Drawings

Swivel castors
Swivel castors

Item selection/filter

Order No.Version

Wheel
bearing
ABB1B2B3LL1HDRR1Permissible
load
kg
CADAcc.PriceOrder
95040-07532swivel castorsplain bearing458560-3210080118982,575300 59.79 €
95040-075323swivel castorsball bearing458560-3210080118982,575300 95.84 €
95040-10037swivel castorsplain bearing458560-3710080140995100500 72.98 €
95040-100373swivel castorsball bearing458560-3710080140995100500 105.94 €
95040-12540swivel castorsplain bearing458560-40100801659107,5125700 87.33 €
95040-125403swivel castorsball bearing458560-40100801659107,5125700 123.95 €
95040-15050swivel castorsplain bearing6511080755014010519711140150800 107.54 €
95040-150503swivel castorsball bearing6511080755014010519711140150800 136.40 €

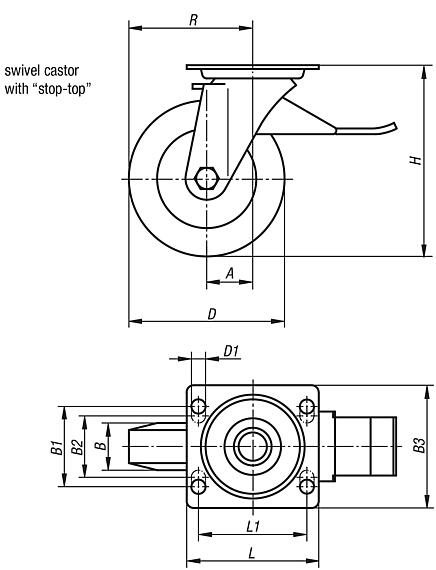

swivel castor with "stop-top"

More information

Drawings

swivel castor with "stop-top"
swivel castor with "stop-top"

Item selection/filter

Order No.Version

Wheel
bearing
ABB1B2B3LL1HDRR1Permissible
load
kg
CADAcc.PriceOrder
95040-075322with stop-topplain bearing458560-3210080118982,575300 96.55 €
95040-075325with stop-topball bearing458560-3210080118982,575300 126.13 €
95040-100372with stop-topplain bearing458560-3710080140995100500 104.45 €
95040-100375with stop-topball bearing458560-3710080140995100500 137.86 €
95040-125402with stop-topplain bearing458560-40100801659107,5125700 118.38 €
95040-125405with stop-topball bearing458560-40100801659107,5125700 155.31 €
95040-150502with stop-topplain bearing6511080755014010519711140150800 139.46 €
95040-150505with stop-topball bearing6511080755014010519711140150800 167.01 €
