Swivel and fixed castors heavy-duty version
95036

Swivel and fixed castors heavy-duty version

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing thick steel plate.
Wheels PA 6.
Version:Housing press formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.
Plain bearings in the wheels.
Note:Wheel axle bolted. The wheels are particularly shock and impact proof and have high abrasion resistance.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 95036 Swivel and fixed castors heavy-duty version 434 kB

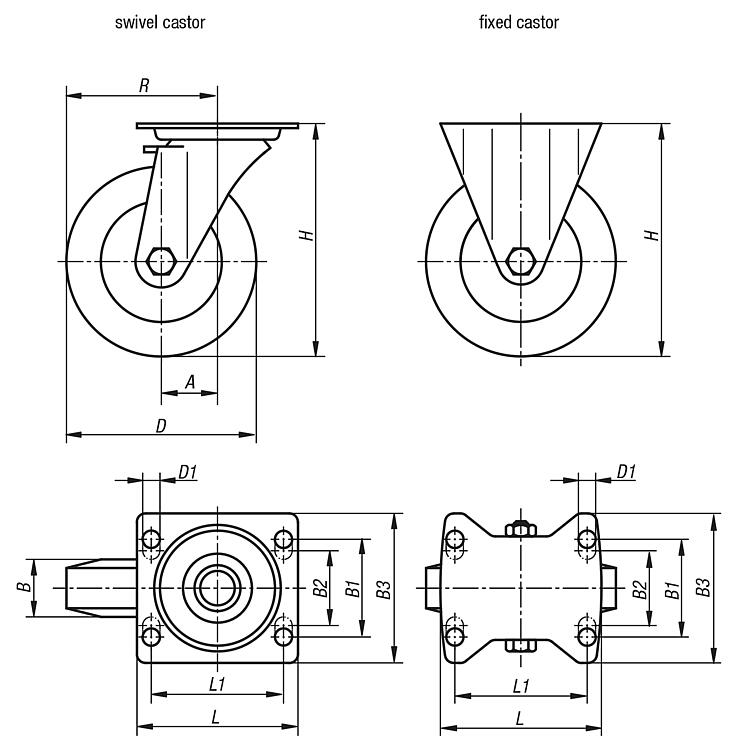

Drawings (total overview)

Swivel and fixed castors heavy-duty version
Swivel and fixed castors heavy-duty version

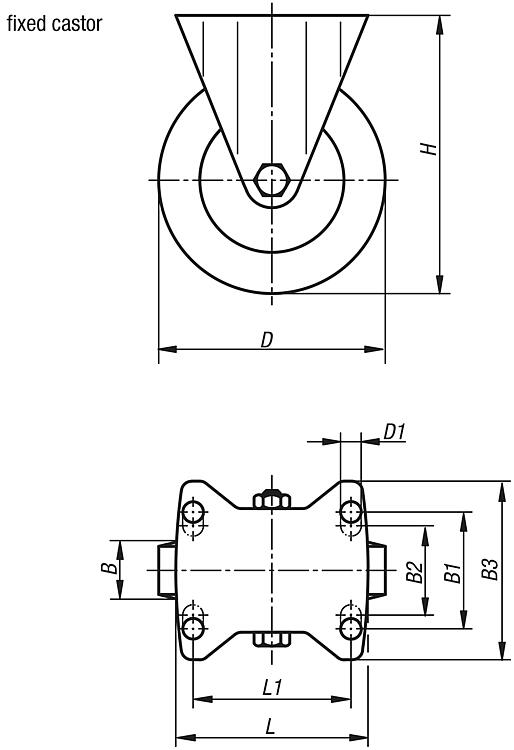

Fixed castors

More information

Drawings

Fixed castors

Item selection/filter

Order No.Version

Wheel
bearing
BB1B2B3LL1HDR1Permissible
load
kg
CADAcc.PriceOrder
95036-100371fixed castorsplain bearing8560-37100801409100280 24.60 €
95036-125401fixed castorsplain bearing8560-40100801659125300 28.14 €
95036-150501fixed castorsplain bearing11080755014010519711150400 47.60 €
95036-200501fixed castorsplain bearing11080755014010524511200600 64.31 €

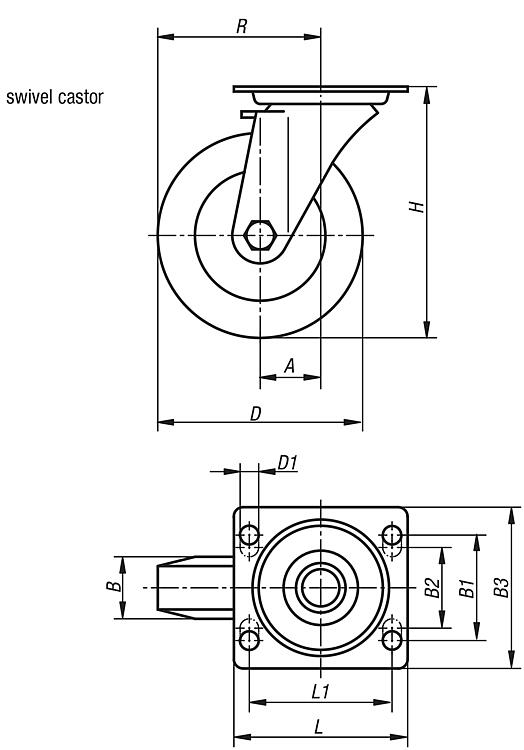

Swivel castors

More information

Drawings

Swivel castors
Swivel castors

Item selection/filter

Order No.Version

Wheel
bearing
ABB1B2B3LL1HDRR1Permissible
load
kg
CADAcc.PriceOrder
95036-10037swivel castorsplain bearing458560-3710080140995100280 62.85 €
95036-12540swivel castorsplain bearing458560-40100801659107,5125300 66.65 €
95036-15050swivel castorsplain bearing6511080755014010519711140150400 88.78 €
95036-20050swivel castorsplain bearing7011080755014010524511170200600 112.21 €

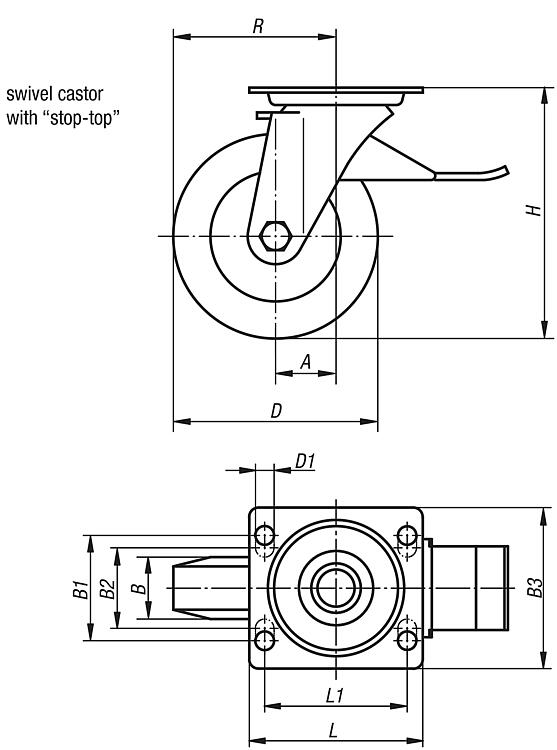

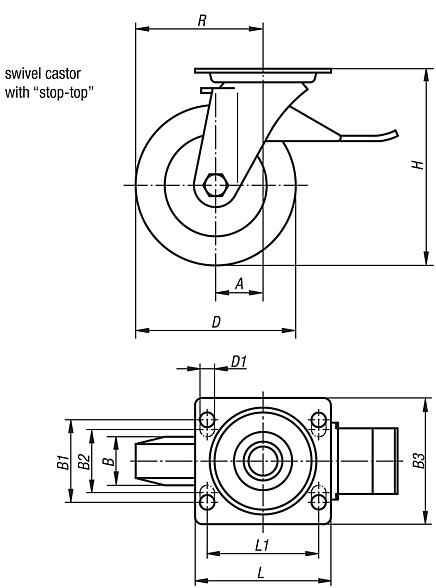

Swivel castors with stop top

More information

Drawings

Swivel castors with stop top
Swivel castors with stop top

Item selection/filter

Order No.Version

Wheel
bearing
ABB1B2B3LL1HDRR1Permissible
load
kg
CADAcc.PriceOrder
95036-100372with stop-topplain bearing458560-3710080140995100280 94.21 €
95036-125402with stop-topplain bearing458560-40100801659107,5125300 98.18 €
95036-150502with stop-topplain bearing6511080755014010519711140150400 121.61 €
95036-200502with stop-topplain bearing7011080755014010524511170200600 144.14 €
