Swivel and fixed castors heavy-duty version
95030

Swivel and fixed castors heavy-duty version

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing thick steel plate.
Wheels welded steel body and Extrathane® tread.
Version:Housing press formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.
Note:These castors are particularly shock and impact proof. The treads resist abrasion and are elastic and low-noise. Wheel axle bolted.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 95030 Swivel and fixed castors heavy-duty version 495 kB

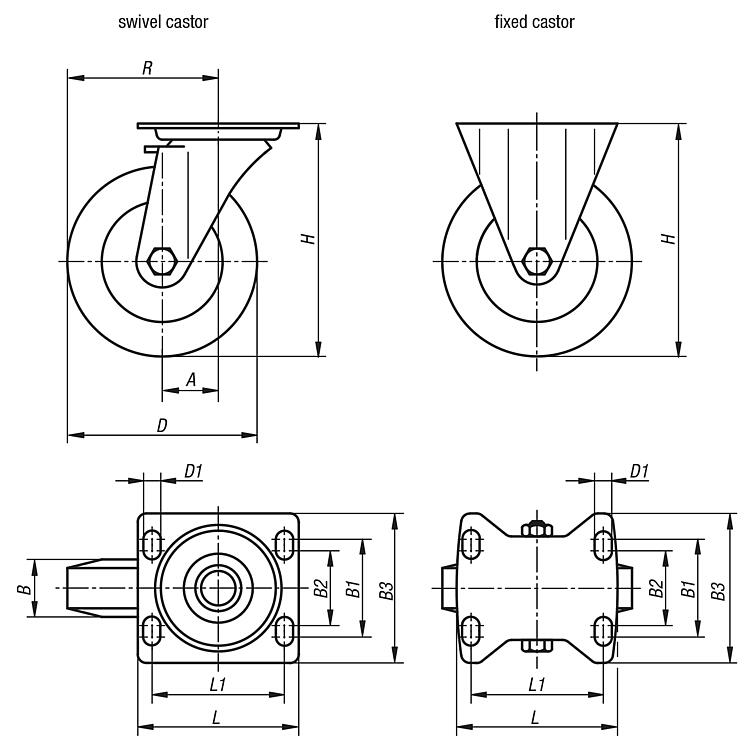

Drawings (total overview)

Swivel and fixed castors heavy-duty version
Swivel and fixed castors heavy-duty version

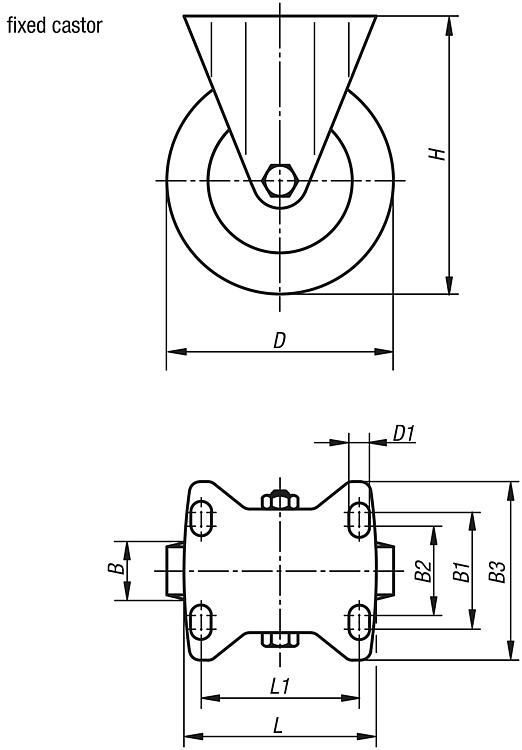

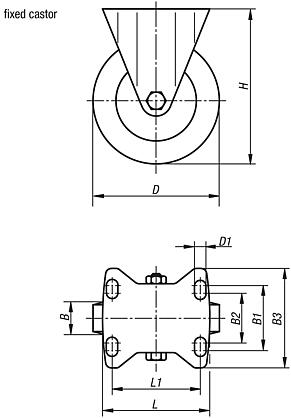

Fixed castors

More information

Drawings

Fixed castors

Item selection/filter

Order No.Version

Wheel
bearing
BB1B2B3LL1HDR1Permissible
load
kg
CADAcc.PriceOrder
95030-125501fixed castorsball bearing11080755014010517011125500 136.40 €
95030-160501fixed castorsball bearing11080755014010520211160700 177.27 €
95030-200501fixed castorsball bearing11080755014010524511200900 197.79 €

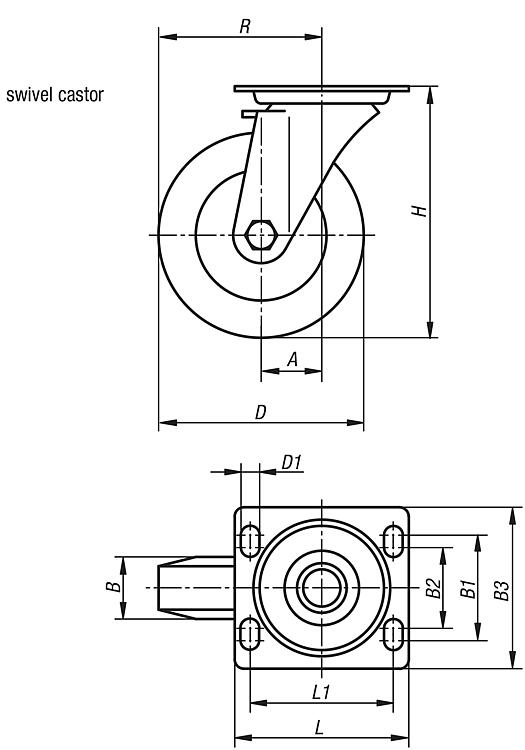

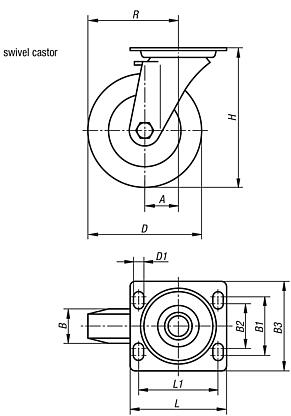

Swivel castors

More information

Drawings

Swivel castors
Swivel castors

Item selection/filter

Order No.Version

Wheel
bearing
ABB1B2B3LL1HDRR1Permissible
load
kg
CADAcc.PriceOrder
95030-12550swivel castorsball bearing5511080755014010517011117,5125500 171.43 €
95030-16050swivel castorsball bearing6511080755014010520211145160700 218.29 €
95030-20050swivel castorsball bearing7011080755014010524511170200900 246.15 €

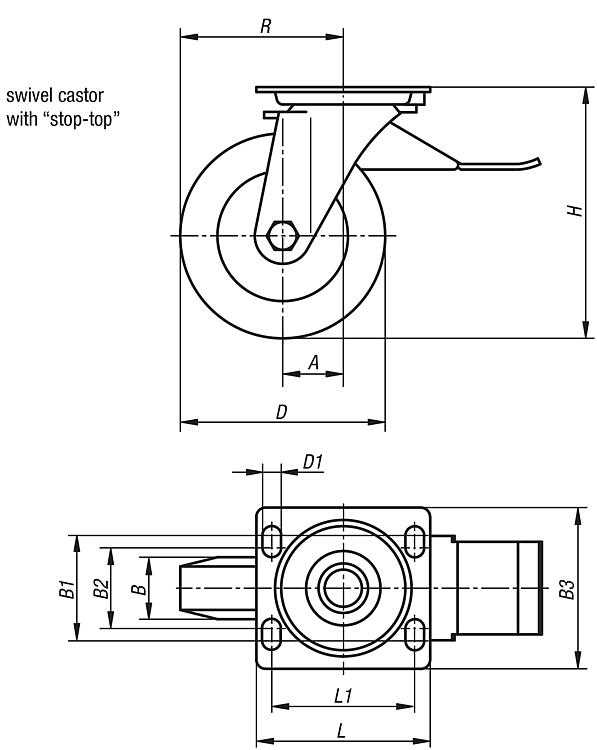

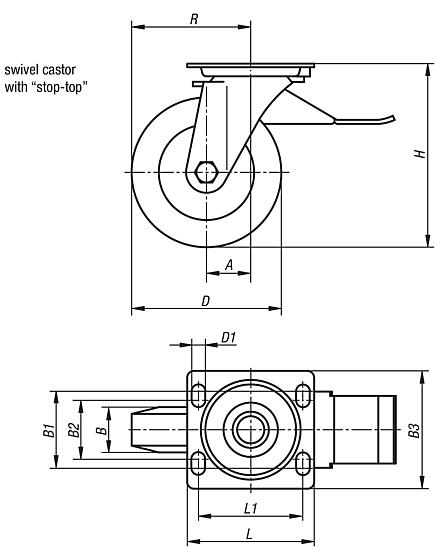

Swivel castors with "stop-top"

More information

Drawings

Swivel castors with "stop-top"
Swivel castors with "stop-top"

Item selection/filter

Order No.Version

Wheel
bearing
ABB1B2B3LL1HDRR1Permissible
load
kg
CADAcc.PriceOrder
95030-125502with stop-topball bearing5511080755014010517011117,5125500 205.10 €
95030-160502with stop-topball bearing6511080755014010520211145160700 251.98 €
95030-200502with stop-topball bearing7011080755014010524511170200900 278.35 €
