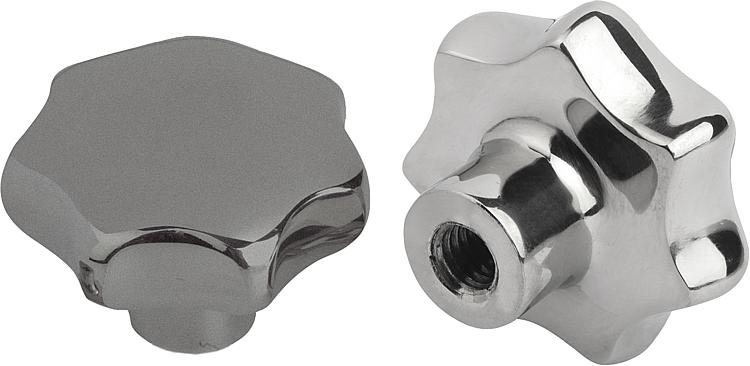

Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole
 06194_E

Star grips similar to DIN 6336, stainless steel, Form E, blind...

 go back

Item description/product images
DescriptionMaterial:

Stainless steel 1.4308.

Version:Ground and polished or blasted.On request:With external thread.Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06194_E Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole 178 kB

Drawings

Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole

Item selection/filter
Order No.FormSurface finish
body		D

D1D2HH3TT1CADAcc.PriceOrder
06194-532062EpolishedM6321221101215 on request
06194-540082EpolishedM8401426131518 on request
06194-550102EpolishedM10501834171821 on request
06194-563122EpolishedM12632042212225 on request
06194-532063EblastedM6321221101215 on request
06194-540083EblastedM8401426131518 on request
06194-550103EblastedM10501834171821 on request
06194-563123EblastedM12632042212225 on request
